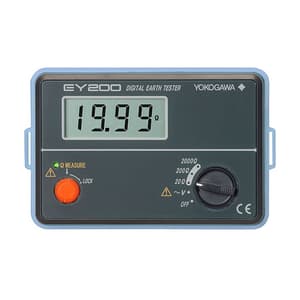

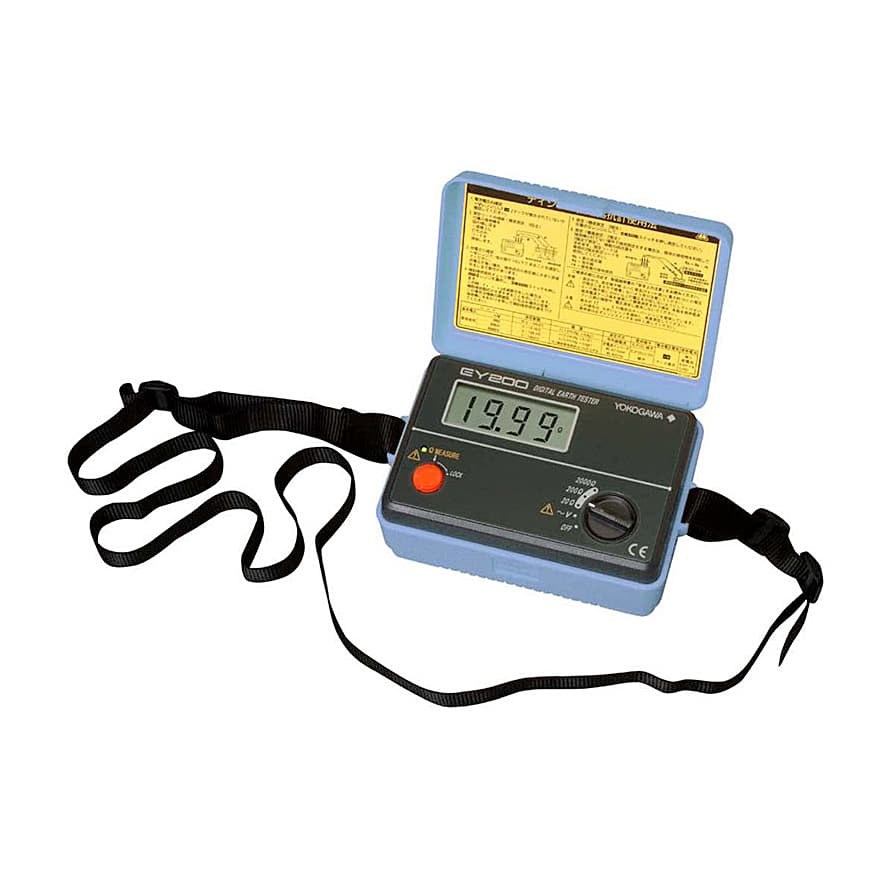

Yokogawa 2000 Ohms Range Digital Earth Resistance Tester, EY200
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 550 g
- Display Counts: 1999-count Digital Reading
- Earth Resistance Range: 2000 Ohm (LSD: 0.01 to 1Ohm)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹88,500 (Incl. of all taxes)
₹75,000 + ₹13,500 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Yokogawa CatalogueNot available
Download Yokogawa CatalogueNot available
Highlights
EY200 is an earth resistance tester for testing power distribution lines, in-house wiring system, electrical appliances etc. The earth resistance tester by Yokogawa also has an earth voltage range for earth voltage measurement.
Features:
- Designed to safety standard IEC 61557
- Reference to IEC 60529: Degrees of protection provided by enclosures (IP54). Measurement can be made even under adverse weather conditions
- Large, easy-to-read LCD digital display
- 2P Test leads (for simplified measurement) has a structure that both the safety alligator clip and the test probe are available
- Warns when earth resistance of auxiliary earth spikes exceeds the permissible limit
- Convenient carrying soft bag for accessories etc.
- 3-Pole Earth Resistance Measurement (Precise Measurement)
- Connect the earth/ground electrode (E) and auxiliary spikes (P, C) to the main body using the accessory test lead. Put apart 5 to 10 m between E and P, and P and C, respectively. E, P, and C should be approximately in a line.
How to Measure Earthing Voltage:
 |

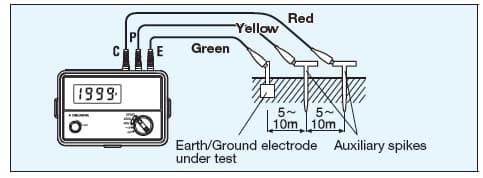

| 3-Pole Earth Resistance Value Measurement (Precise Measurement) Connect the earth/ground electrode (E) and auxiliary spikes (P, C) to the main body using the accessory test lead. Put apart 5 to 10 m between E and P, and P and C, respectively. E, P, and C should be approximately in a line. |
 |

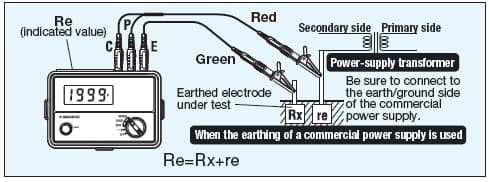

| 2-Pole Earth Resistance Value Measurement (Simplified Measurement) A simplified 2-pole measuring method can be used if there is an almost perfectly earth/ground object such as a lead or iron water-pipe (plastic pipes cannot be used) or if there is an object with a known value of earth resistance, near the measurement site. |
Accuracy:
- 20Ω range: ±2%rdg±0.1Ω
- 200 Ω range: ±2%rdg±3dgt
- 2000 Ω range: ±2%rdg3dgt
- Earth Voltage: ±1%rdg±4dgt
Standard Accessories:
- 3-pole Test Lead (98074)
- Earth Spikes for EY200 (98070)
- 2-pole Test Lead Set (98075)
- Soft Case (93041)
- Shoulder Belt for EY200 (99018)
- 6x AA (R6) dry cells
- User's Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 1999-count Digital Reading |
|---|---|
| Earth Resistance Range | 2000 Ohm (LSD: 0.01 to 1Ohm) |
| Earth Voltage | 200V |
| Measuring Frequency | Approx. 820Hz |
| Measuring Current | Approx. 3mA (at 20 Ohm range) |
| Battery Life | Approx. 4.5 Hours (At 5 second measuring 3300 times) |
| Operating Temperature & Humidity | 0 ~ 40°C (85%RH or less) |
| Dimensions (mm) | 105 x 158 x 70 mm |
| Origin | Made in Japan |
