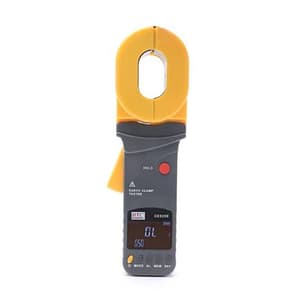

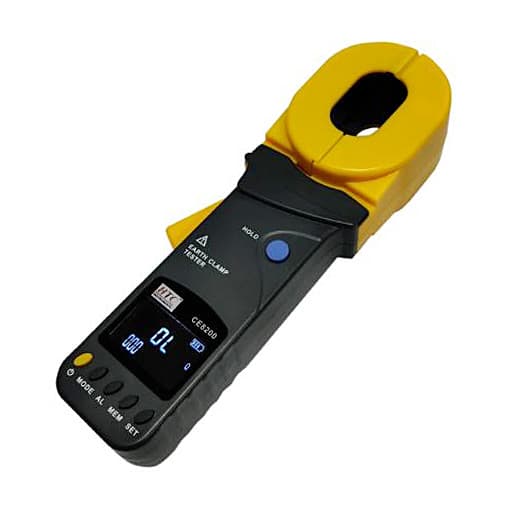

HTC 0 - 1200 Ohm / 4 Digit Clamp On Ground Resistance Tester, CE-8202
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Resistance Range: 0 - 1200 Ohm
- Power: AA 1.5V X 4
- Conductor Size: 55 mm x 32 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,922 (Incl. of all taxes)
₹21,120 + ₹3,802 GST (18%)
MRP was MRP ₹26,400
Save 20%
7 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 4 Digit LCD Display with Black Screen.
- 9,999 Count.
- Auto Power Off (APO)
- Data Logging System 300 groups memory.
- Measure 2 times/sec.
- Double Insulation Protection Level.
- Spare 1 & 10 Test Ring, to detect Self Precision.
Package Contents:
- Test Loop,
- Manual,
- Hard Carrying Case.
Resistance:
| Range | Resolution | Accuracy |
| 0.010~0.099Ω | 0.001Ω | ±1% of rdg + 0.1Ω digits |
| 0.10~0.99Ω | 0.01Ω | |
| 1.0~49.9Ω | 0.1Ω | |
| 50.0~99.5Ω | 0.5Ω | ±1.5% of rdg + 0.5Ω digits |
| 100~199Ω | 1Ω | ±2% of rdg + 1Ω digits |
| 200~395Ω | 5Ω | ±5% of rdg + 5Ω digits |
| 400~590Ω | 10Ω | ±10% of rdg + 10Ω digits |
| 600~1000Ω | 20Ω | ±20% of rdg + 20Ω digits |
| *900~1200Ω | 30Ω | ±(25% +30Ω) |
Current:
| Range | Resolution | Accuracy |
| 0.00mA~9.95mA | 0.1mA | ±(2.5% + 0.1mA) |
| 10.0mA~99.0mA | 0.1mA | ±(2.5% + 5mA) |
| 100mA~300mA | 1mA | ±(2.5% + 10mA) |
| 0.30A~2.99A | 0.01A | ±(2.5% + 0.1A) |
| 3.0A~9.9A | 0.1A | ±(2.5% + 0.3A) |
| 10.0A~20.0A | 0.1A | ±(2.5% + 0.5A) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Range | 0 - 1200 Ohm |
|---|---|
| Power | AA 1.5V X 4 |
| Conductor Size | 55 mm x 32 mm |
| Dimension | 285 (H) x 85 (W) x 58 (D) mm |
