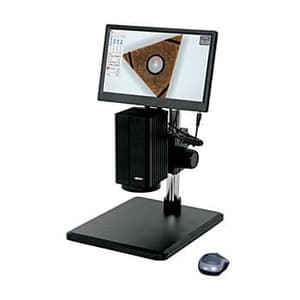

Insize 10 - 68.5X Motorized Zoom Microscope with LCD Display, 5325-VM100
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 5.1 kg
- Magnification: 10X ~ 68.5X
- Sensor: 1/2" CMOS
- Frame Rate: 60 fps
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,17,796 (Incl. of all taxes)
₹99,827 + ₹17,969 GST (18%)
MRP was MRP ₹1,38,649
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

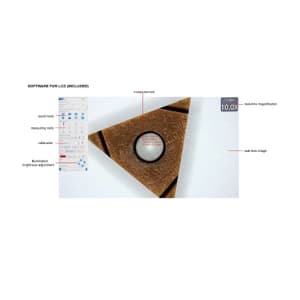

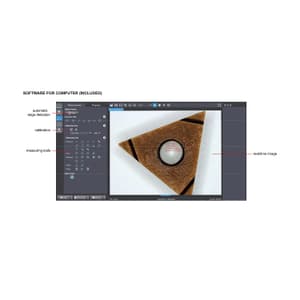

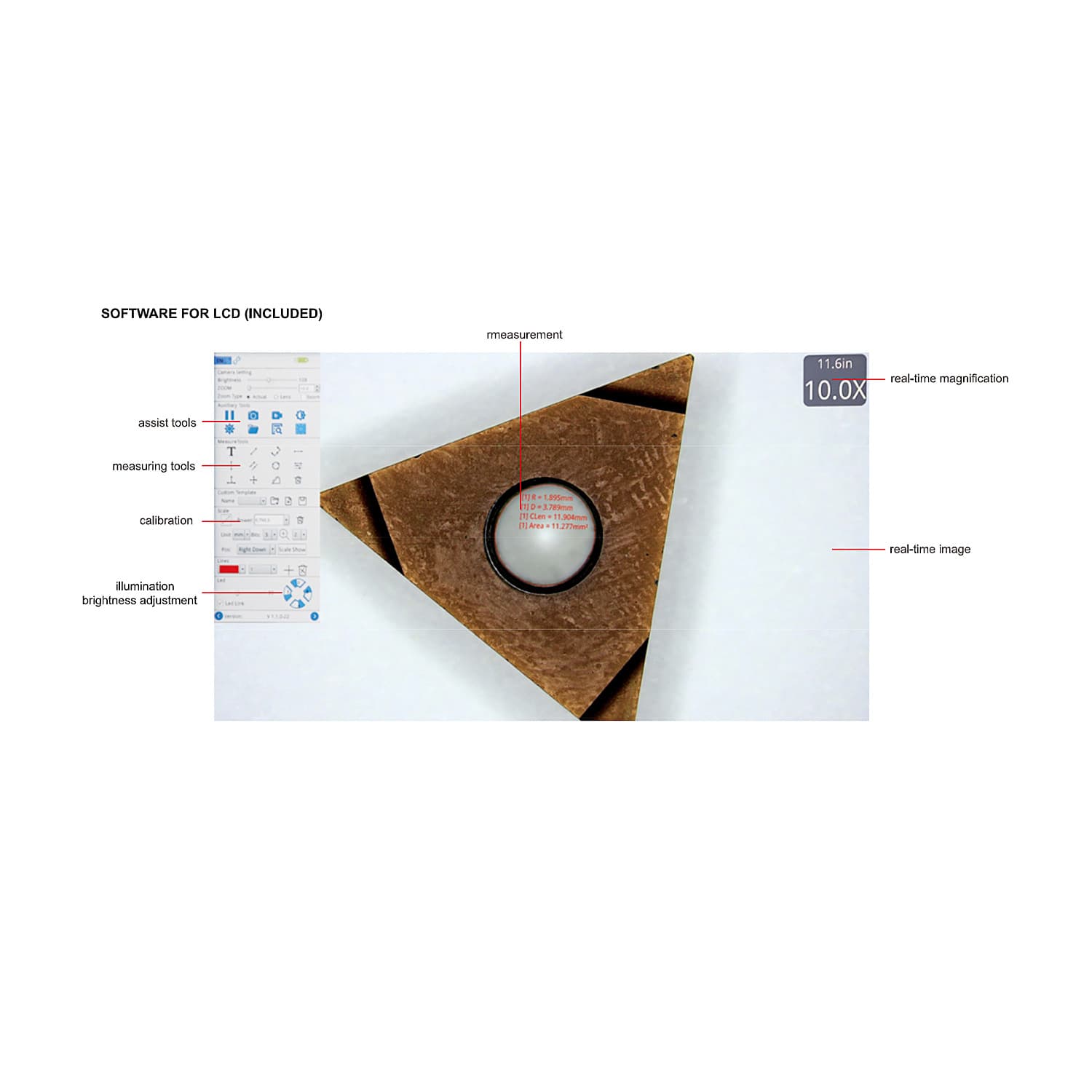

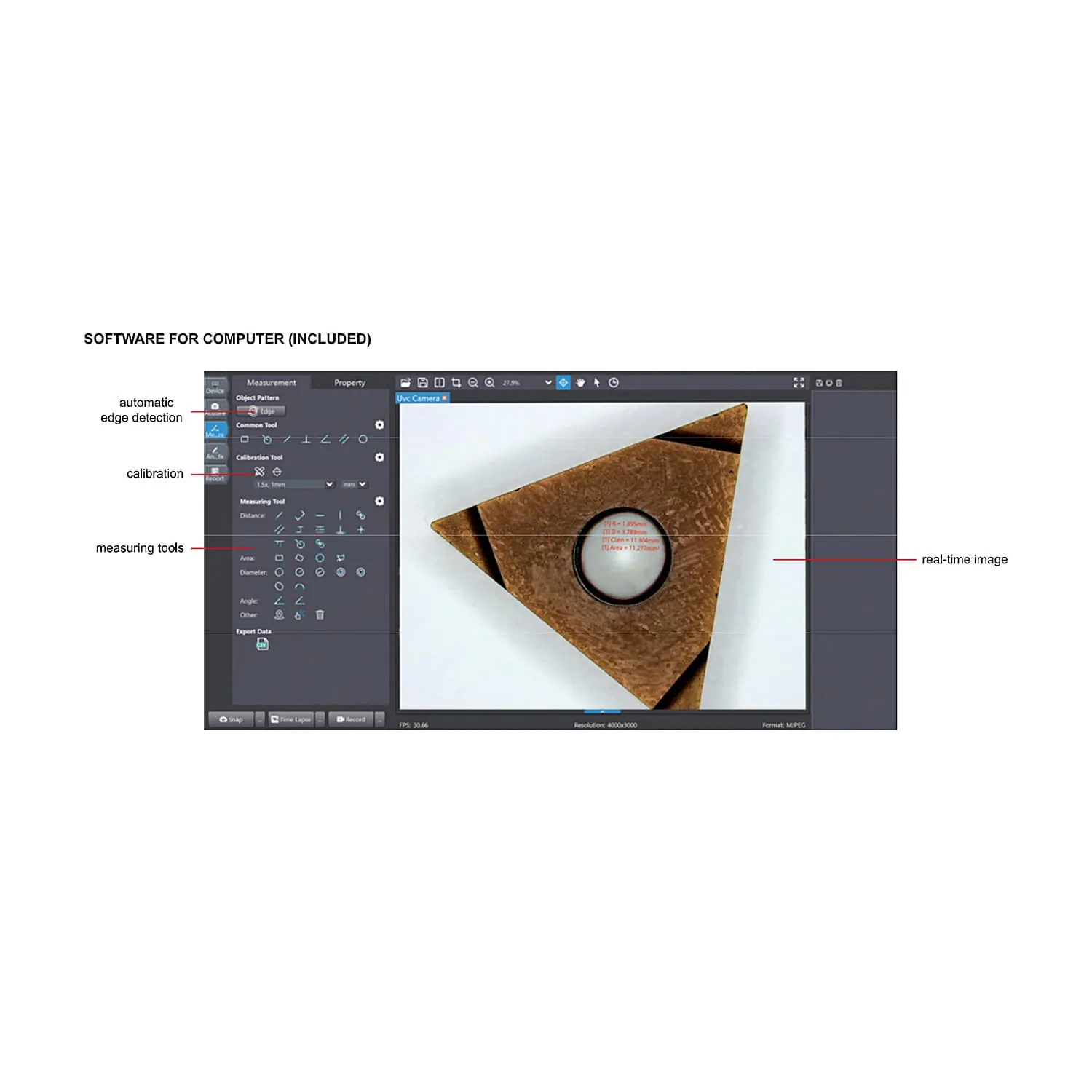

- Built-in software without computer

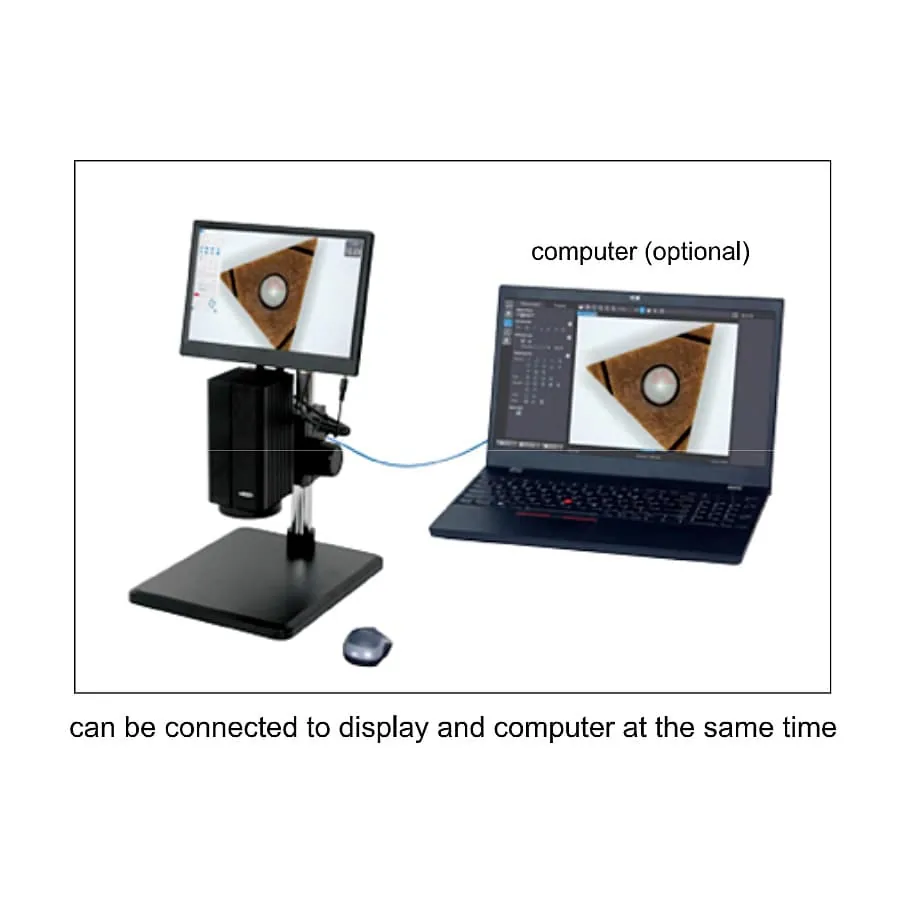

- Can be connected to display and computer at the same time

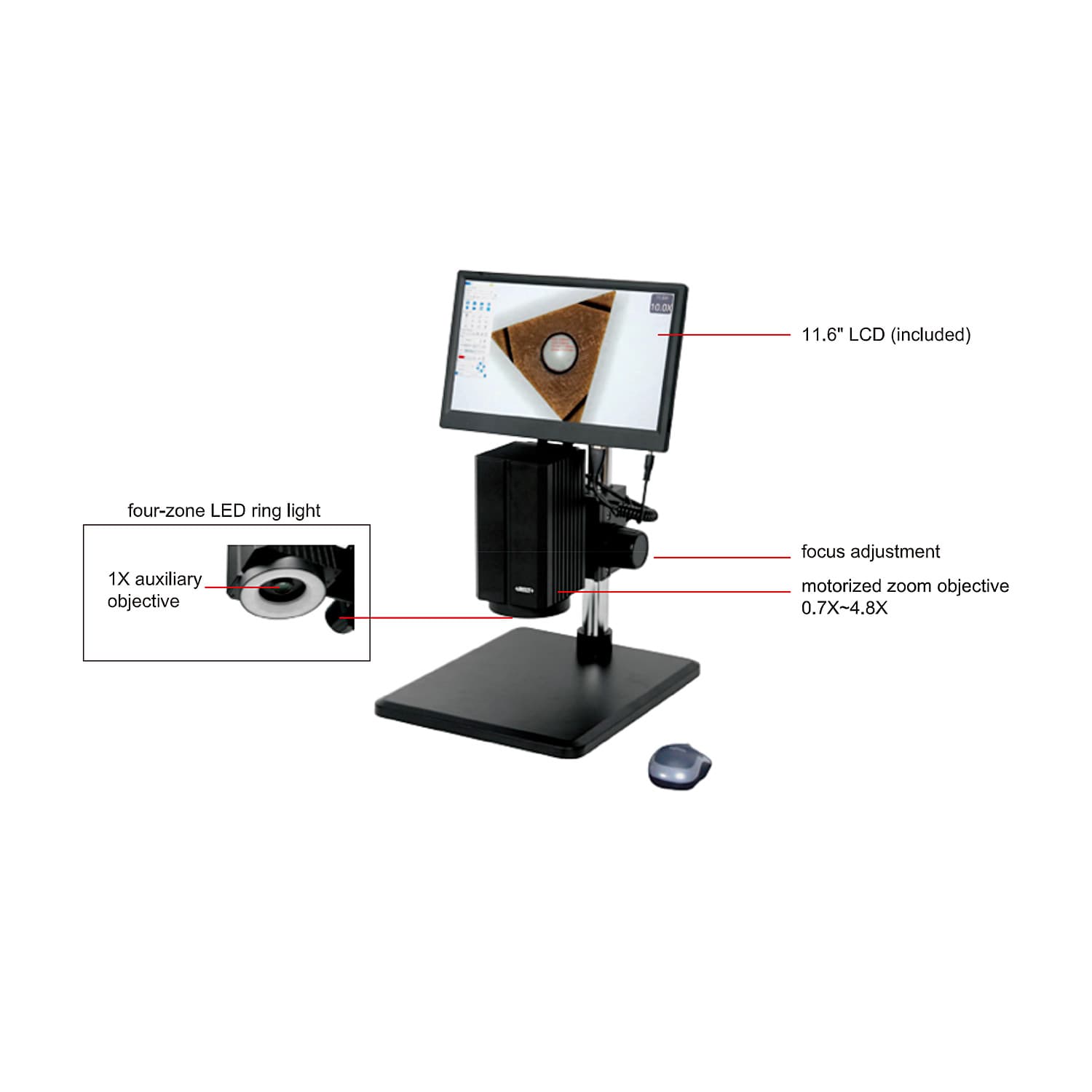

- Motorized zoom objective
- Display actual magnification
- Programmable segmented ring light
- Take pictures and videos
Magnification, Focus Distance & View Field (on 11.6" LCD):
| Objective | Magnification | Focus Distance | View Field |
| 0.5X (Optional) | 5 - 34.2X | 180 mm | 7.4x4.2 ~ 53x31.2mm |
| 1X (Included) | 10 - 68.5X | 87 mm | 3.7x2.1 ~ 26.5x15.6mm |
Package Content:
- 1x Microscope
- 1x Glass Calibration Rule
- 1x Power Adapter
- 1x Mouse
- 1x 16GB USB Flash Disk
- 1x White/Black Plate
- 1x Network Cable

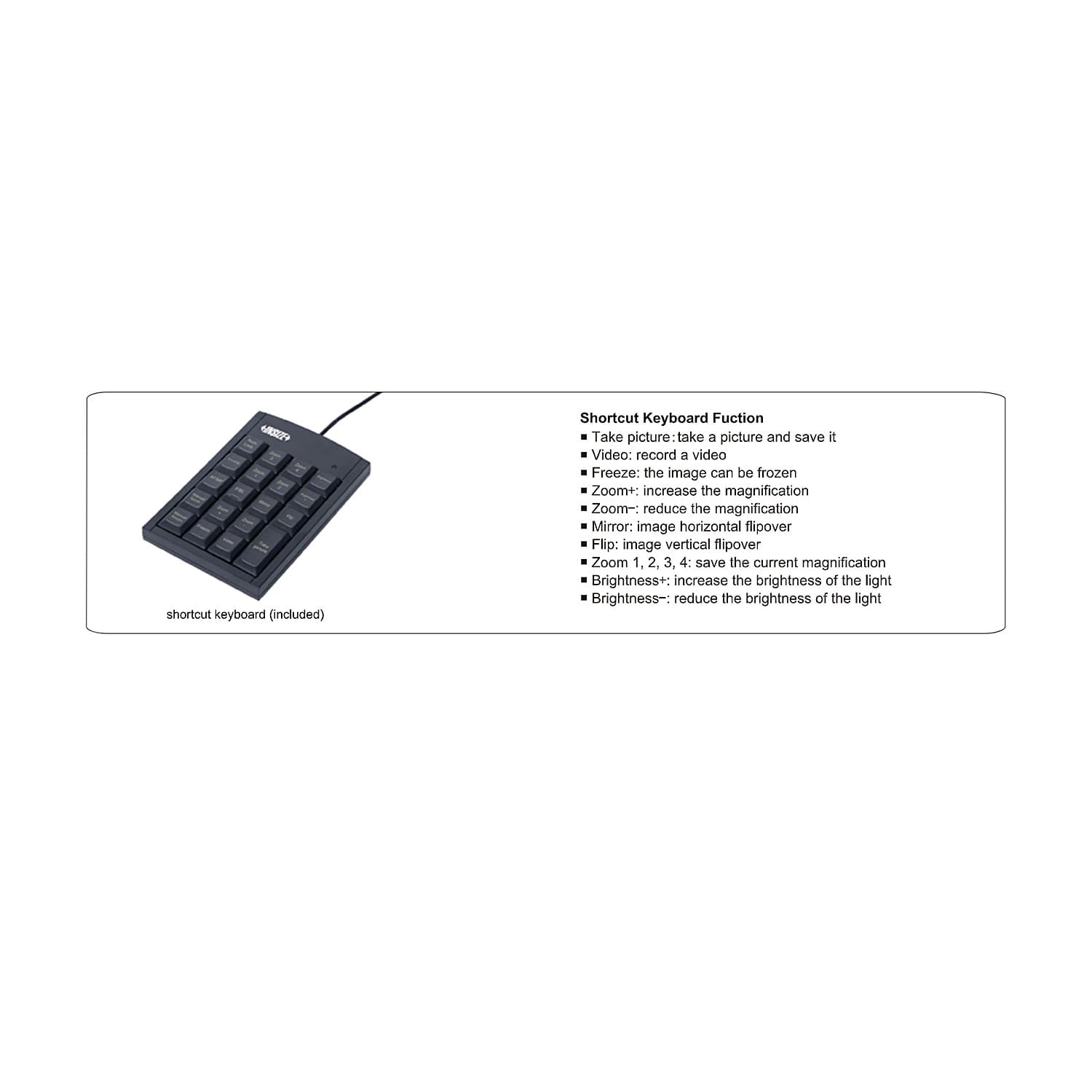

- 1x Shortcut Keyboard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 10X ~ 68.5X |
|---|---|
| Sensor | 1/2" CMOS |
| Pixel | 2M |
| Resolution | 1920 x 1080 |
| Frame Rate | 60 fps |
| Measuring Accuracy | ±0.02 mm |
| Max. Workpiece Height | 135 mm |
| Output | USB/LAN/HDMI |
| Power Supply | Power adapter |
| Dimensions (L x W x H) | 261x320x480mm |
