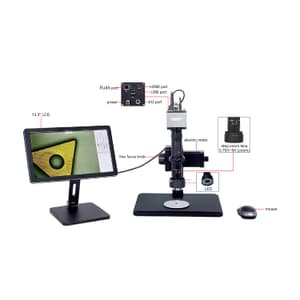

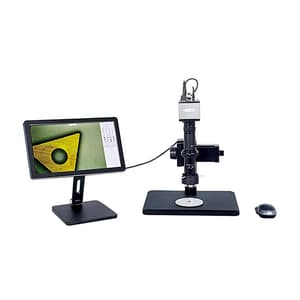

Insize 14.7X ~ 122.7X Motorized Focus Stacking Microscope with Display, ISM-DL520
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 7 kg
- Magnification: 14.7X - 122.7X
- View Field: 2.3x1.2 - 19.5x11 mm
- Pixel: 2M
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,04,789 (Incl. of all taxes)
₹2,58,296 + ₹46,493 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 1080P high-definition image

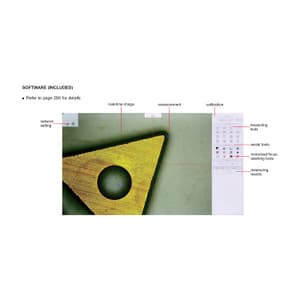

- Built-in software without computer, operated by mouse
- Take pictures, save to USB flash disk
- Measurement results can be sent to Excel
- Automatic white balance and exposure

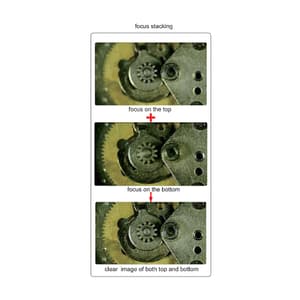

- Motorized focus stacking

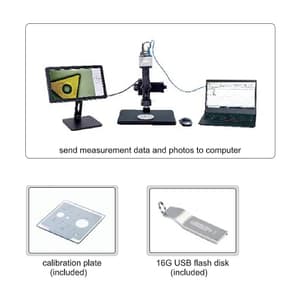

- Send photos and measurement data via ethernet (TCP/IP)
- Name photos and measurement data files with serial number of workpieces read by scanner
Magnification & Measuring Accuracy:
| Objective Magnification | Image Magnification | Measuring Accuracy |
| 0.6X | 14.7X | ±8µm |
| 0.8X | 19.6X | ±7µm |
| 1X | 24.5X | ±6µm |
| 1.5X | 36.8X | ±6µm |
| 2X | 49.1X | ±6µm |
| 2.5X | 61.3X | ±5µm |
| 3X | 73.6X | ±5µm |
| 3.5X | 85.9X | ±4µm |
| 4X | 98.2X | ±4µm |
| 4.5X | 110.4X | ±4µm |
| 5X | 122.7X | ±4µm |
Package Content:
- 1x Microscope
- 1x camera adapter
- 1x auxiliary objective
- 1x Calibration plate
- 1x 16G USB flash disk
- 1x Mouse
- 1x LED ring light
- 1x White/black plate
- 3x Power adapter
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 14.7X - 122.7X |
|---|---|
| View Field | 2.3x1.2 - 19.5x11 mm |
| Focus Distance | 65 mm |
| Sensor | 1/1.2 inch CMOS |
| Pixel | 2M |
| Resolution | 1920 x 1080 Pixel |
| Frame Rate | 30fps |
| Output | RJ45 |
| Power Supply | Power Adapter |
| Dimensions (L x W x H) | 320 x 260 x 500 mm |
