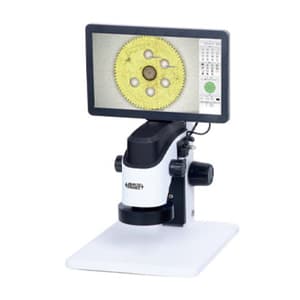

Insize 12X - 77X Large Depth of View Digital Measuring Microscope (Advanced Type), 5322-ID250A
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 5.2 kg
- Pixel: 2M
- Focus distance: 60 mm
- Max workpiece height: 53 mm
- Frame rate: 60fps
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,73,703 (Incl. of all taxes)
₹2,31,952 + ₹41,751 GST (18%)
MRP was MRP ₹3,36,163
Save 31%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

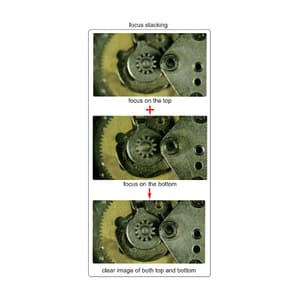

- Dual Screen Operation & Focus Stacking
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed

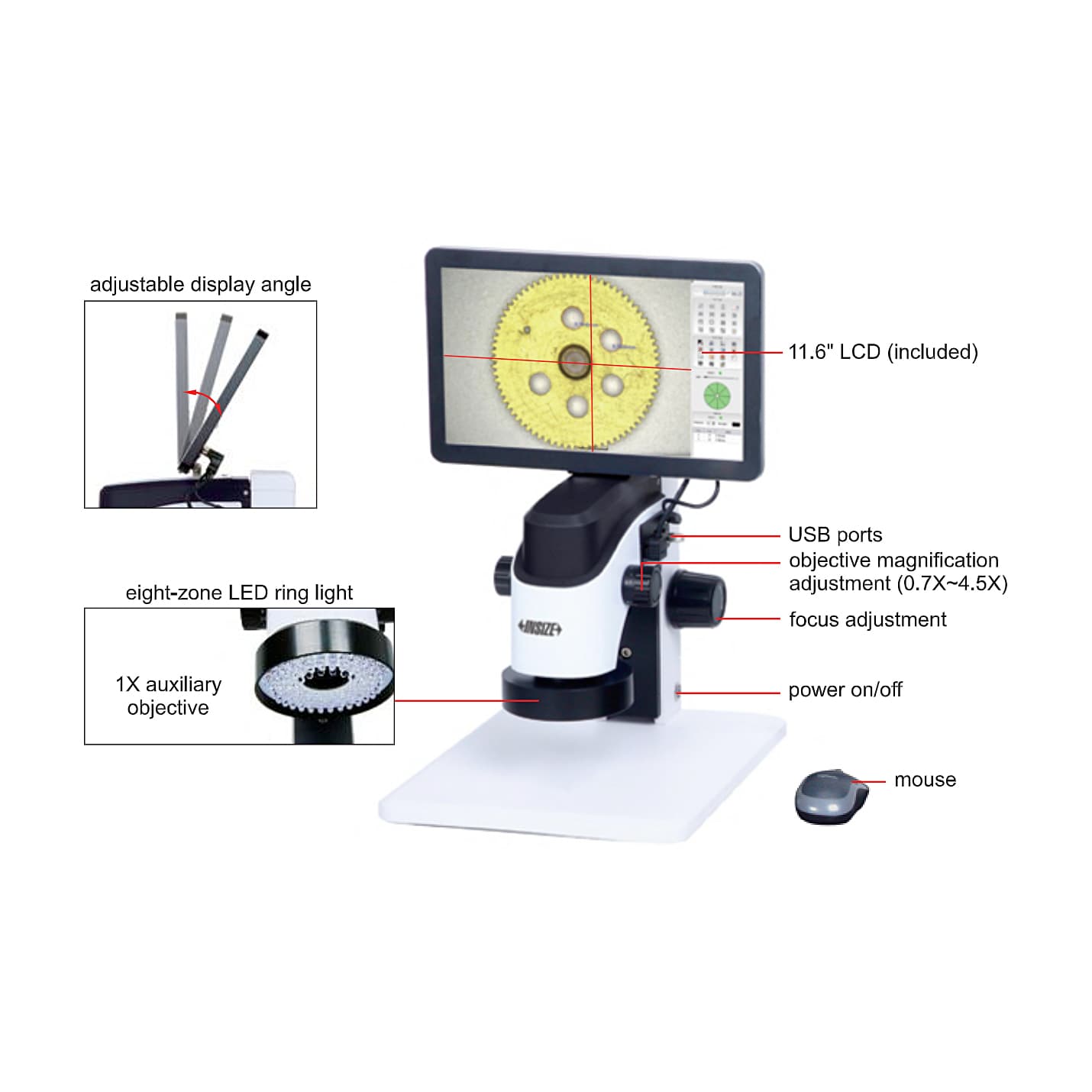

- Programmable segmented ring light
- Send photos and measurement data via ethernet (TCP/IP)
- Digital magnification

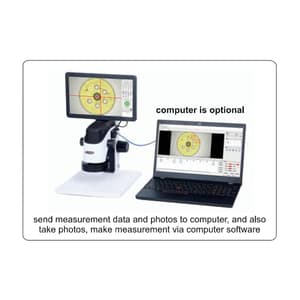

- Can be connected to display and computer at the same time
- Take pictures, save to USB flash disk

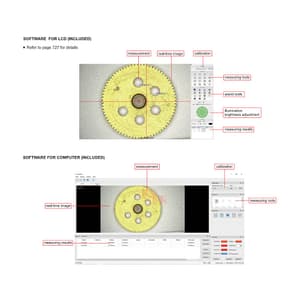

- Measuring results can be sent to Excel
Magnification and Measuring Accuracy:
| Objective magnification | Magnification | Measuring Accuracy |
| 0.7X | 12X | ±9µm |
| 1X | 17X | ±9µm |
| 1.5X | 26X | ±8µm |
| 2X | 35X | ±7µm |
| 2.5X | 43X | ±7µm |
| 3X | 51X | ±7µm |
| 3.5X | 60X | ±6µm |
| 4X | 68X | ±6µm |
| 4.5X | 77X | ±5µm |
Standard Delivery:
| Digital Measuring Microscope | 1 Pc |
| 1X Auxiliary Objective | 1 Pc |
| Calibration plate | 1 Pc |
| Power adapter | 1 Pc |
| Mouse | 1 Pc |
| 16G USB flash disk | 1 Pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Sensor | 1/2" CMOS |
|---|---|
| Pixel | 2M |
| Resolution | 1920x1080 Pixel |
| Magnification | 12 - 77X |
| Focus distance | 60 mm |
| View field | 3.2x1.8 - 20.9x11.7 mm |
| Max workpiece height | 53 mm |
| Frame rate | 60fps |
| Output | USB/HDMI/LAN |
| Power supply | Power adapter |
| Dimensions (L x W x H) | 260 x 320 x 500 mm |
