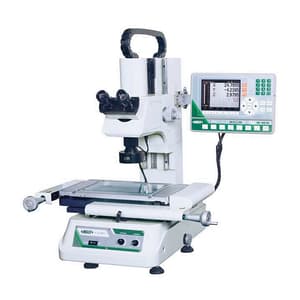

Insize 150 x 100 mm Toolmaker Microscope without Computer (Monocular), ISD-VMM205D
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 100 kg
- X/Y Axis Travel: 150 x 100 mm
- Z Axis Travel: 150 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,70,011 (Incl. of all taxes)
₹9,91,535 + ₹1,78,476 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

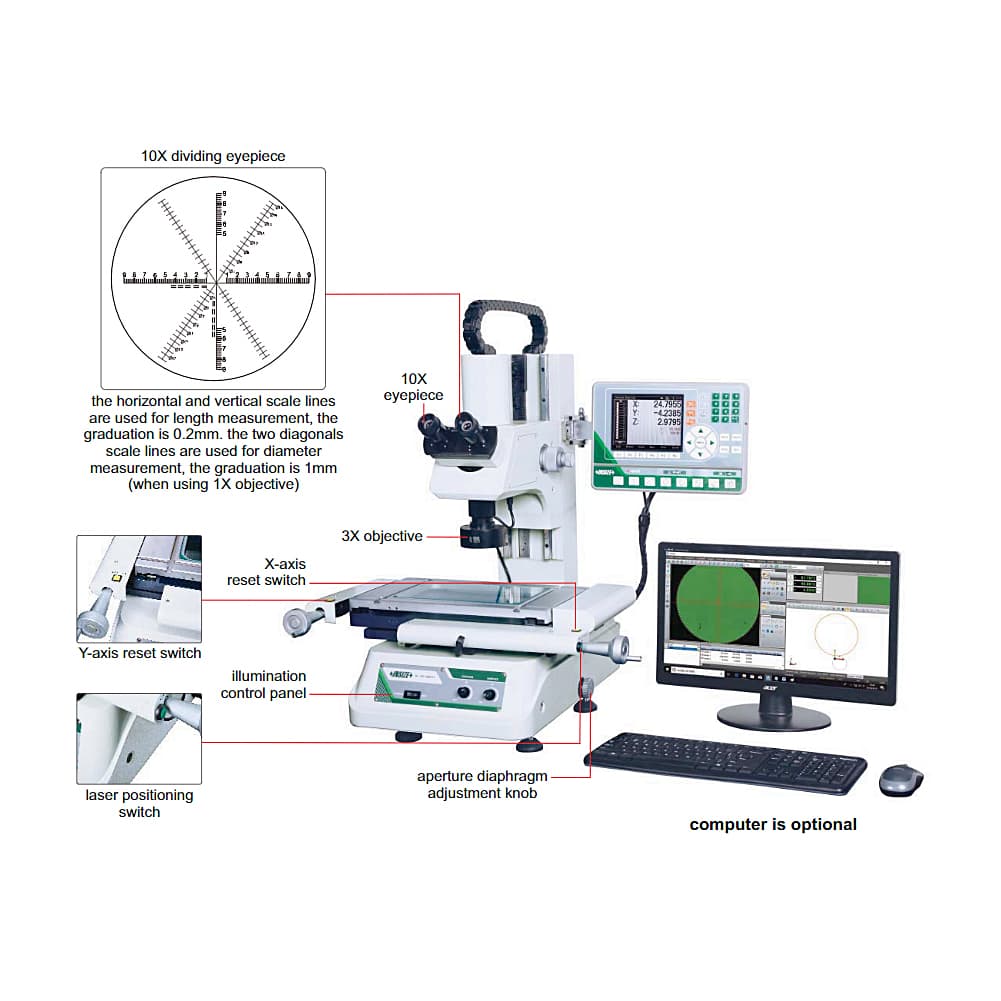

- The horizontal and vertical scale lines are used for length measurement, the graduation is 0.2mm. the two diagonals scale lines are used for diameter measurement, the graduation is 1mm (when using 1X objective)
What's Included in this Package:
| Main Unit | 1 pc |
| Video Card with Dongle | 1 pc |

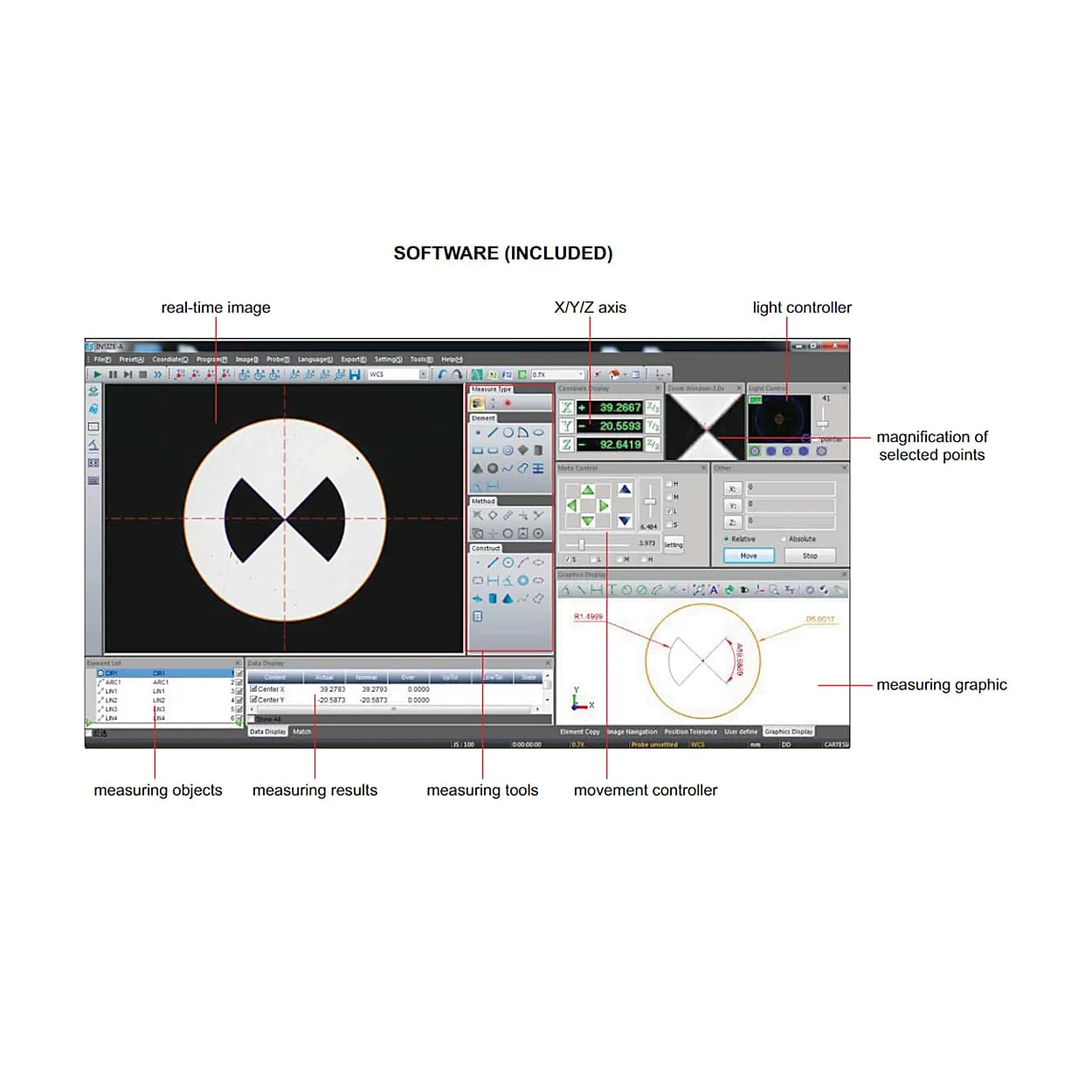

| Software Disc | 1 pc |
| Calibration Glass Chart | 1 pc |
| Demo Sample | 1 pc |
| Foot Switch | 1 pc |
| 3X Objective | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| X/Y Axis Travel | 150 x 100 mm |
|---|---|
| Z Axis Travel | 150 mm |
| Metal Stage Size | 354 x 228 mm |
| Glass Stage Size | 210 x 160 mm |
| Resolution of X/Y/Z Axis | 0.5μm |
| Accuracy of X/Y Axis | < (3.5+L/100)μm (L is the measuring length in mm) |
| Repeatability | 2μm |
| Camera | 1/3" color CCD, 0.3M Pixel |
| Optical Magnification | 30X (With 3X Objective) |
| Image Magnification | 114X (On 19" Monitor) |
| Illumination | Surface and Contour with adjustable LED |
| Max. Weight of Workpiece | 25Kg |
| Power Supply | 100V ~ 240V, 50/60Hz |
| Operation System | Windows 7/8/10 |
| Drive Method | Manual |
| Dimension (LxWxH) | 540 x 667 x 850 mm |
