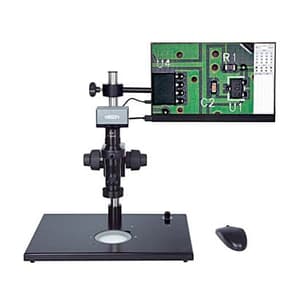

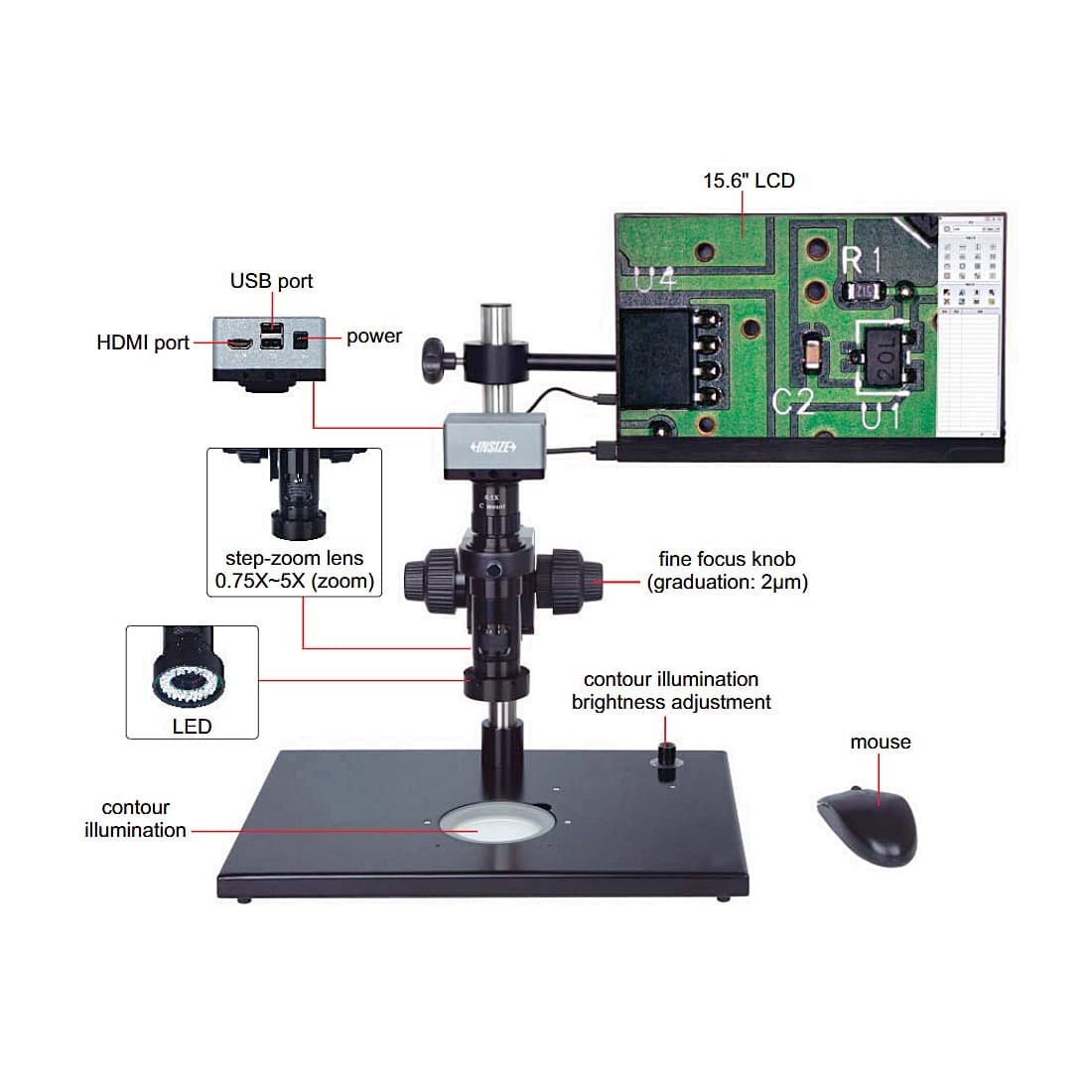

Insize 17.6X - 120X 4K Digital Measuring Microscope with Display, 5310-DL401
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 6.5 kg
- Magnification: 17.6X ~ 120X
- Sensor: 1/2.3" CMOS
- Frame Rate: 30 fps (4K) / 60 fps (1080P)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,45,954 (Incl. of all taxes)
₹2,08,436 + ₹37,518 GST (18%)
MRP was MRP ₹2,93,572
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 4K high-definition image

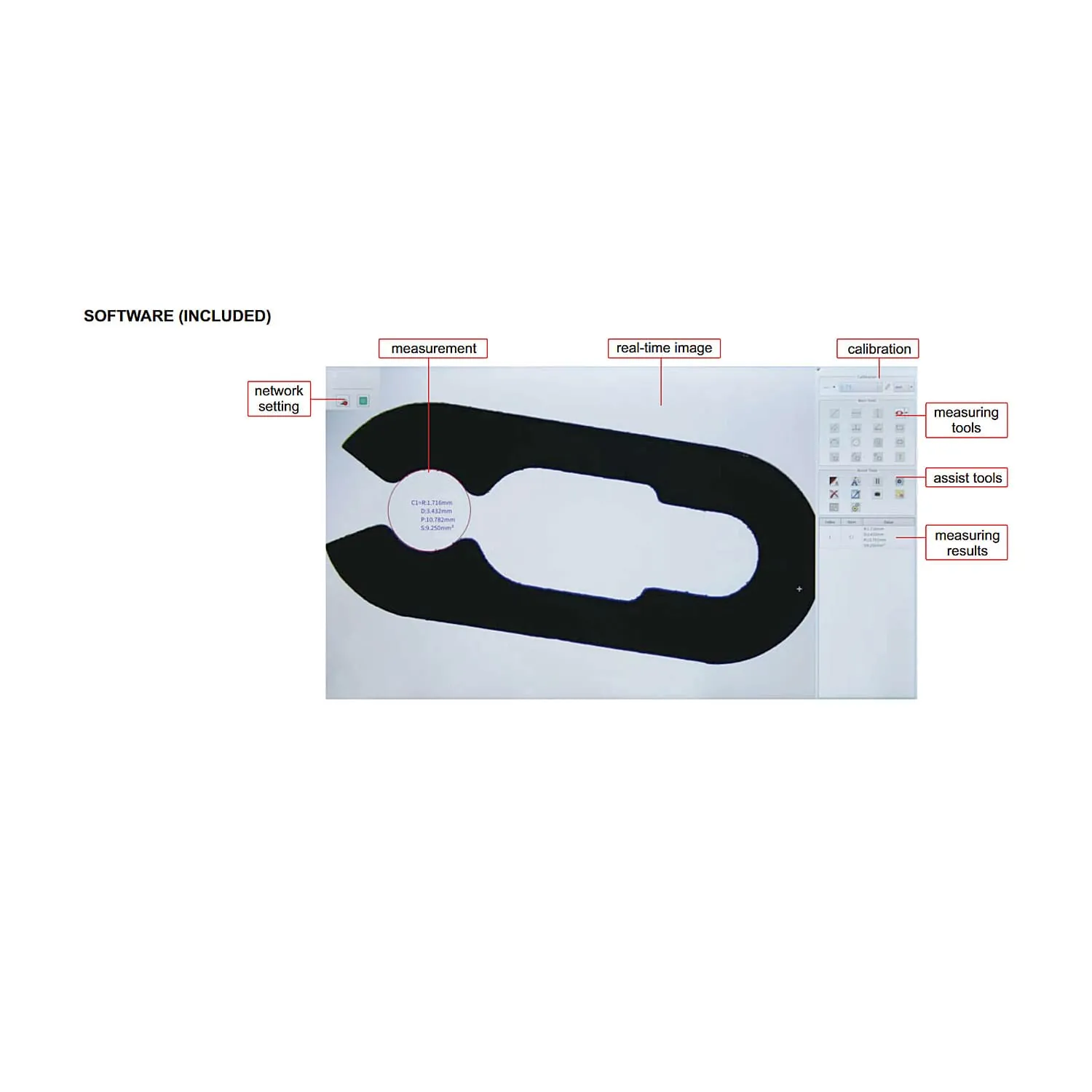

- Built-in software without computer, operated by mouse
- Take pictures, save to USB flash disk
- Measurement results can be sent to Excel
- Automatic white balance and exposure
- Brightness, contrast ratio, gain are adjustable
Magnification, View Field & Measuring Accuracy:
| Objective Magnification | Image Magnification | View Field | Measuring Accuracy |
| 0.75X | 17.6X | 19.5 x 11.5 mm | ±5µm |
| 1X | 23.7X | 14.0 x 8.0 mm | ±5µm |
| 1.5X | 36.6X | 9.0 x 5.0 mm | ±5µm |
| 2X | 49X | 7.0 x 4.0 mm | ±5µm |
| 2.5X | 62X | 5.5 x 3.0 mm | ±4µm |
| 3X | 73X | 4.5 x 2.5 mm | ±4µm |
| 3.5X | 85X | 4.0 x 2.2 mm | ±4µm |
| 4X | 97X | 3.5 x 2.0 mm | ±3µm |
| 4.5X | 109X | 3.0 x 1.8 mm | ±3µm |
| 5X | 120X | 2.7 x 1.5 mm | ±3µm |
Package Content:
- 1x Microscope
- 1x 0.5X Camera Adapter
- 1x Auxiliary Objective
- 1x Calibration Plate
- 1x 16GB USB Flash Disk
- 1x White/Black Plate
- 1x Mouse
- 1x HDMI Cable
- 3x Power Adapter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 17.6X ~ 120X |
|---|---|
| Sensor | 1/2.3" CMOS |
| Pixel | 8M |
| Resolution | 3840 x 2160 |
| Frame Rate | 30 fps (4K) / 60 fps (1080P) |
| Output | HDMI |
| Power Supply | Power adapter |
| Dimensions (L x W x H) | 570x300x430mm |
