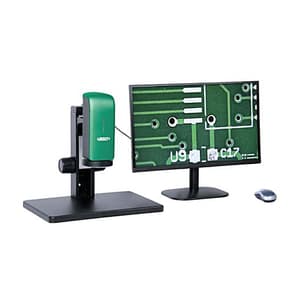

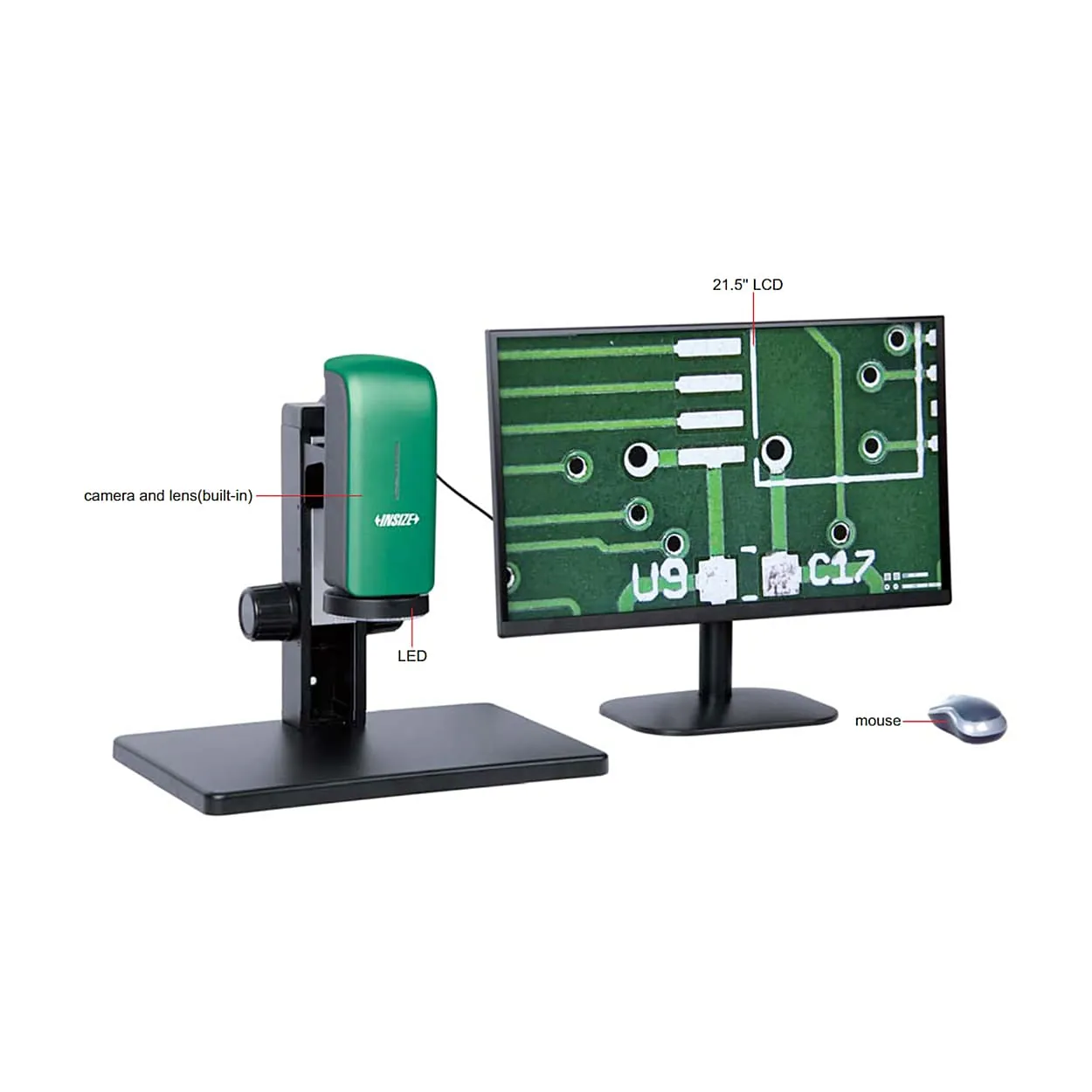

Insize 27.4 - 163X Auto Focus Digital Microscope with Display, 5319-AF290
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 6.5 kg
- Magnification: 27.4X ~ 163X
- Sensor: 1/2.8" CMOS
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,75,823 (Incl. of all taxes)
₹2,33,748 + ₹42,075 GST (18%)
MRP was MRP ₹3,33,925
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Auto focus camera
- Take pictures and videos

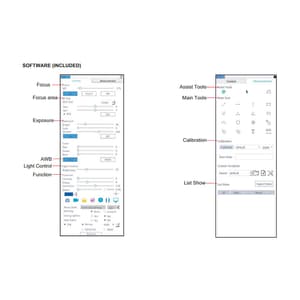

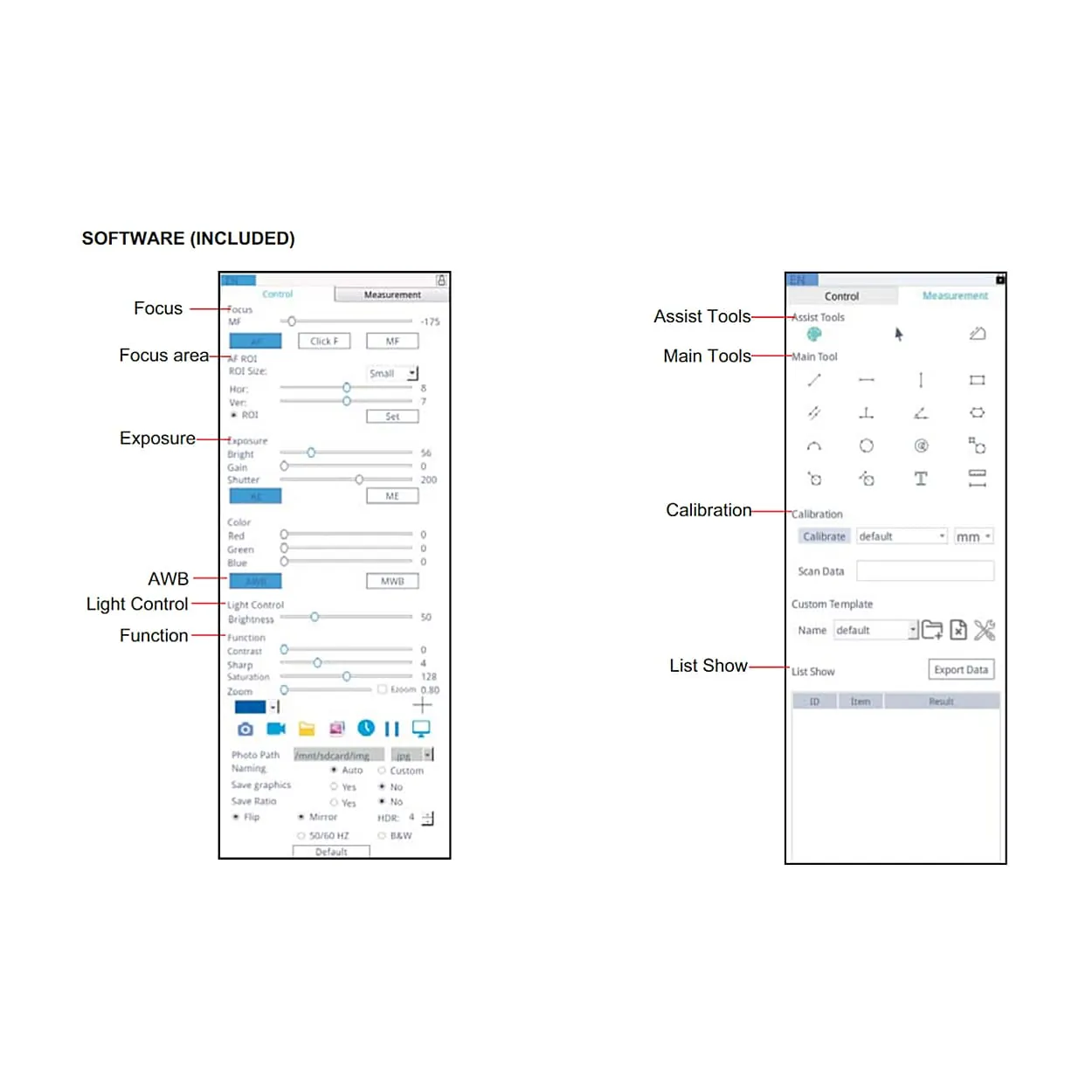

- Built-in measuring software
- Automatic exposure and white balance
- Brightness, contrast ratio, gain are adjustable
- Display actual magnification
- Digital magnification

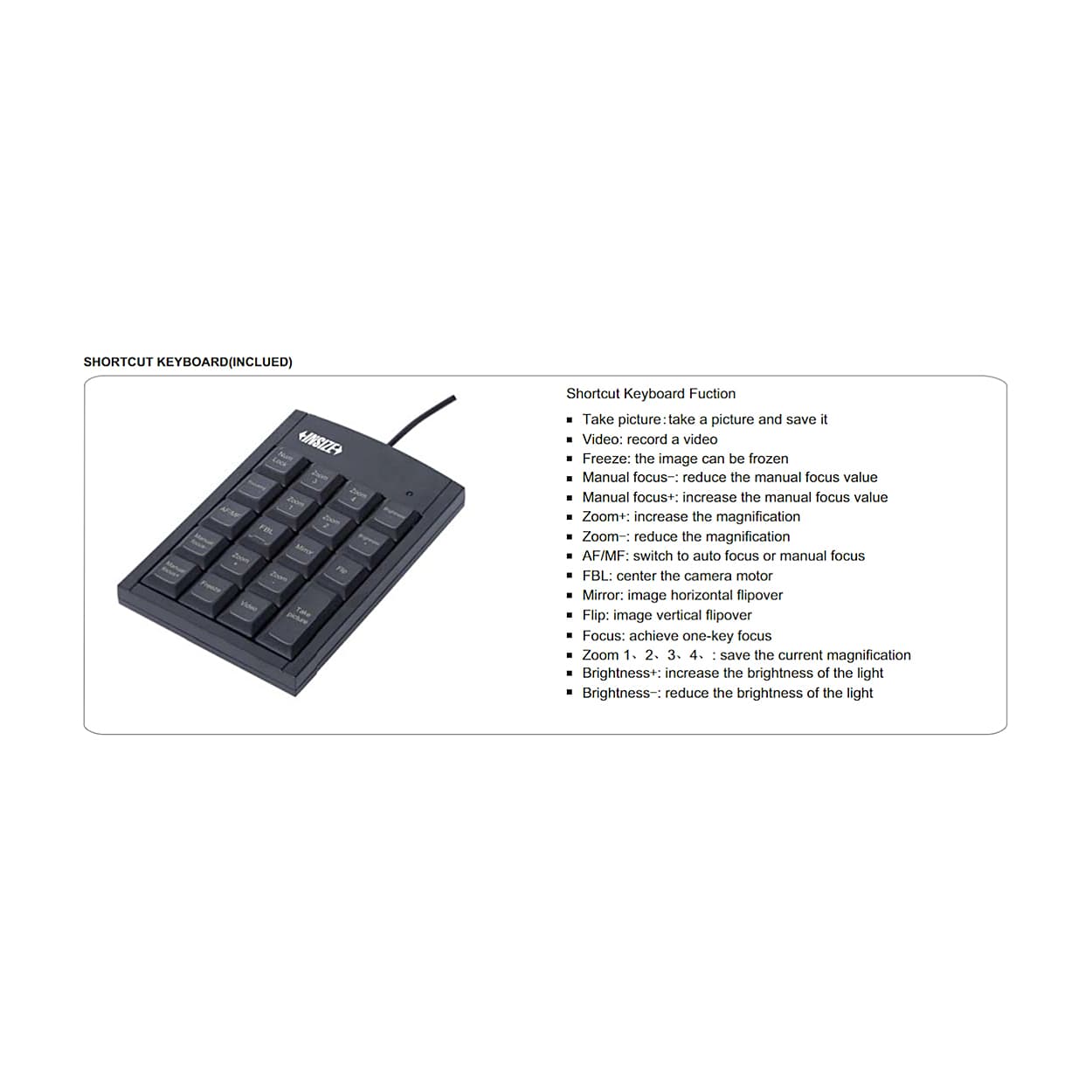

- Shortcut keyboard operation

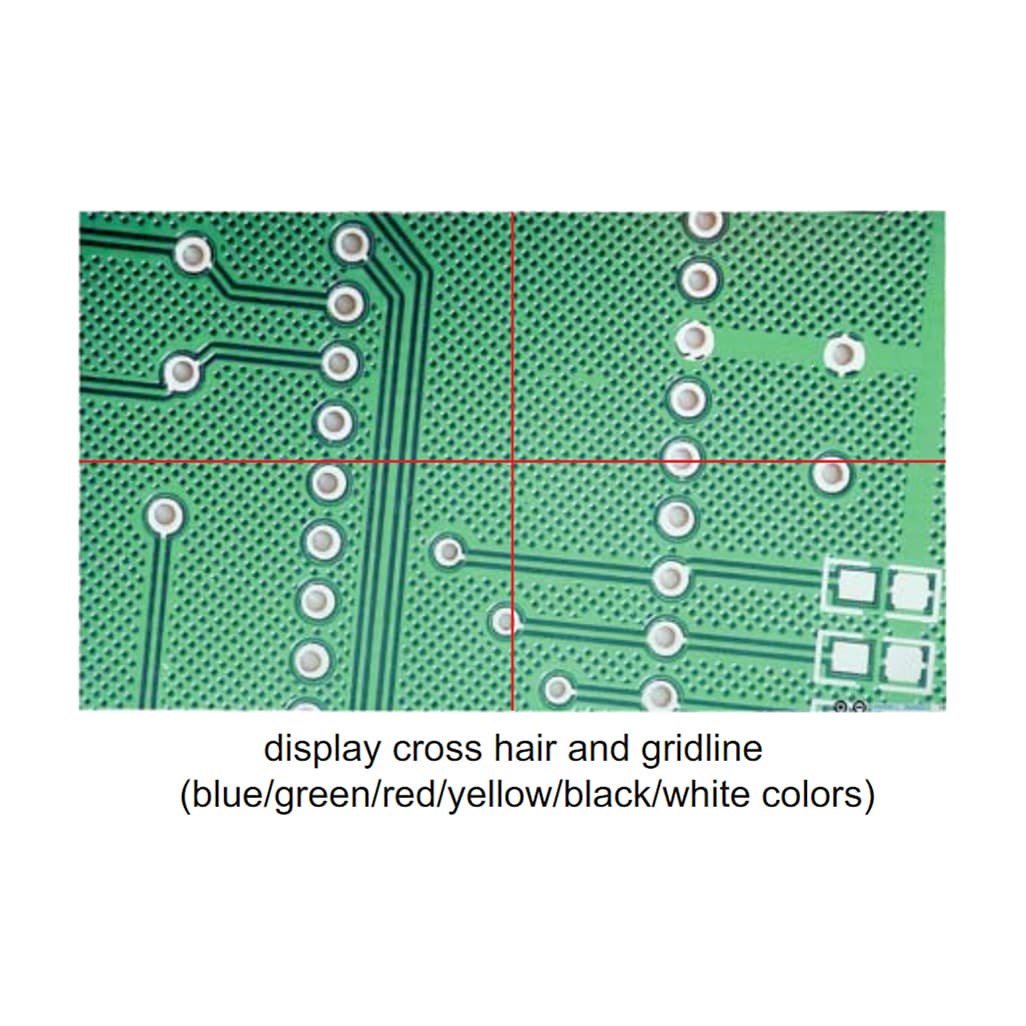

- Display cross hair and gridline (blue/green/red/yellow/black/white colors)
Technical Data:
| Optical Magnification | Focus Distance | View Field |
| 0.8X | 88 - 133 mm | 19.4x11 - 15.8x8.8 mm |
| 1X | 88 - 133 mm | 15x8.3 - 12.7x7.2 mm |
| 2X | 98 - 123 mm | 7.1x4 - 6.7x3.8 mm |
| 3X | 103 - 115 mm | 4.8x2.7 - 4.5x2.5 mm |
| 4X | 108 - 111 mm | 3.6x2 - 3.3x1.8 mm |
| 4.76X | 108 - 111 mm | 3x1.7 - 2.8x1.6 mm |
Standard Delivery:
| Digital Microscope | 1 Pc |
| 21.5" LCD | 1 Pc |

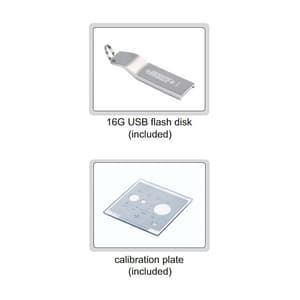

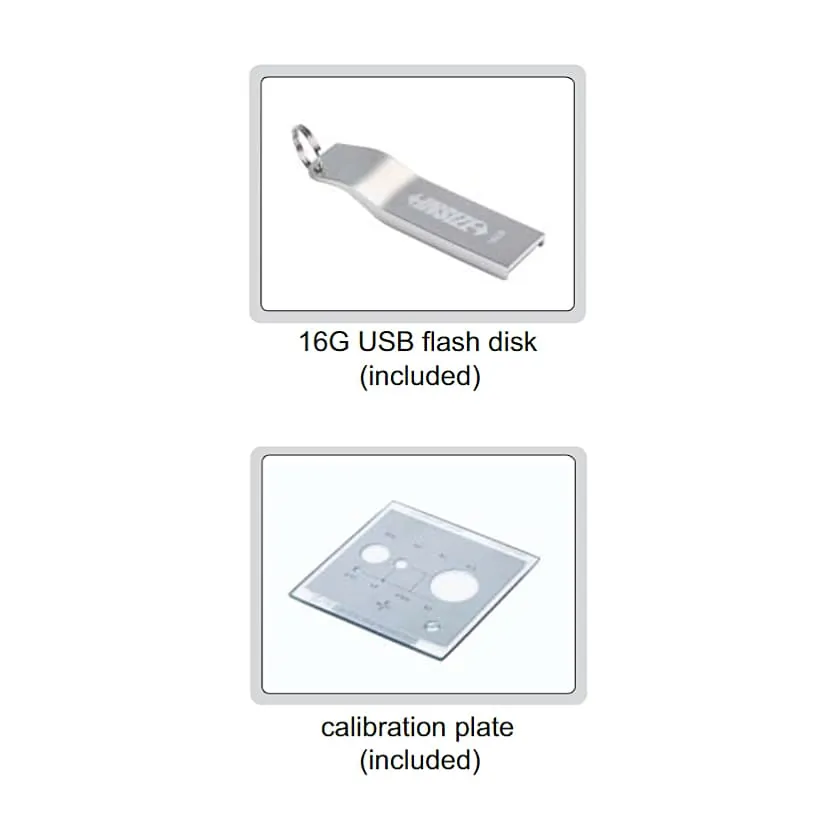

| 16G USB Flash Disk | 1 Pc |
| Mouse | 1 Pc |
| HDMI Cable | 1 Pc |
| Calibration Plate | 1 Pc |
| White/Black Plate | 1 Pc |
| Shortcut Keyboard | 1 Pc |
| Power Adaptor | 2 Pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 27.4X ~ 163X |
|---|---|
| Sensor | 1/2.8" CMOS |
| Pixel | 2M |
| Resolution | 1920 x 1080 |
| Frame Rate | 50/60fps |
| Measuring Accuracy | ±0.02 mm |
| Output | HDMI |
| Power Supply | Power Adapter |
| Dimension (LxWxH) | 600 x 280 x 390 mm |
