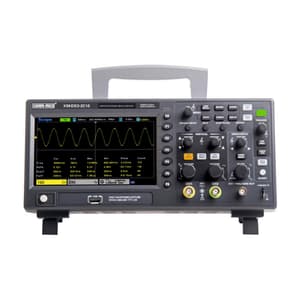

Kusam-Meco 100MHz Dual Channel Digital Storage Oscilloscope, KM-DSO-2C10
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Weight: 1.9 kg
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,488 (Incl. of all taxes)
₹21,600 + ₹3,888 GST (18%)
MRP was MRP ₹27,000
Save 20%
3 Business Days
1
90302000
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
| Horizontal | |
| SEC/DIV Range | 2ns/div to 100s/div, in a 1, 2, 5 sequence |
| Vertical | |
| VOLTS/DIV Range | 2mV/div to 10V/div at input BNC |
| Low Frequency Response | (-3db) ≤10Hz at BNC |
| Rise time at BNC, typical | ≤3.5ns |
| Acquisition | |
| Sample rate | 1GSa/s (single channel); 500MSa/s (two channels) |
| Equivalent sampling | 50GSa/s |
| Acquisition Modes | Normal, Peak, Average and High Resolution |
| Edge Trigger | |
| Slope | Rising, Falling, Rising & Falling |
| Source | CH1-CH2, Line, External |
| Pulse Trigger | |
| Polarity | Positive, Negative |
| Video Trigger | |
| Signal Standard | NTSC, PAL |
| Slope Trigger | |
| Slope | Rising, Falling |
| Overtime Trigger | |
| Source | CH1 - Ch2 |
| Pattern Trigger | |
| Pattern | 0: Lower level; 1: High level; |
| Interval Trigger | |
| Slope | Rising, Falling |
| Under Amp Trigger: Polarity Positive, Negative | |
| UART Trigger | |
| Condition | Start, Stop, Data, Parity Error, COM Error |
| LIN Trigger | |
| Condition | Interval Field, Sync Field, Id field, Sync Id Error, Identifier, Id & Data |
| CAN Trigger | |
| Condition | Start Bit, Remote Frame, Data Frame Id, Frame Id, DataFrame Id A, Error Frame, All Error, Ack Error, Overload Fram |
| SPI Trigger | |
| IIC Trigger | |
| Probe compensator output | |
| Interface | Standard interface USB Host, USB Device |
| Power Consumption | <15W |
| Power supply | |
| Voltage |
|
Package Content:
- Digital Storage Oscilloscope
- Passive Probe (1.5m, 10:1)
- Two Test Leads with two clips (built-in signal source)
- A Test Lead with two clips (no built-in signal source)
- Power cord
- USB Cable
- CD with Software
- User Manual
- Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1MOhm±2% 20pF±3pF |
| Probe Attenuation | 1X & 10X |
| Supported Probe Attenuation Factors | 1X, 10X, 100X, 1000X |
| Voltage Rating | 300V CAT II |
| Max. Input Voltage | 300VRMS (10X) |
| Isolation between channels | >40dB |
| Delay deviation between channels | <500ps |
| Display | 7 inchs TFT (Diagonal liquid crystal) |
| Display Resolution | 800 (horizontal) x 480 (vertical) pixels |
| Display type | Point, Vector |
| Waveform Brightness | Adjustable |
| Grid type | Optional |
| Grid & Screen Brightness | Adjustable |
| Persist | 1s, 5s, 10s, 30s, infinite |
| Trigger Mode | Auto, Normal, Single |
| Dimensions (L x W x H) | 3180 x 110 x 150 mm |
