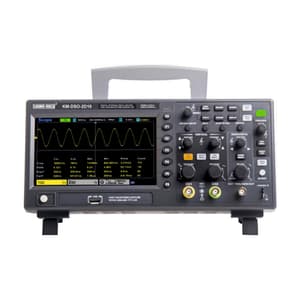

Kusam-Meco 100MHz Dual Channel Digital Storage Oscilloscope with Function Waveform Generator, KM-DSO-2D10
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹30,713 (Incl. of all taxes)
₹26,028 + ₹4,685 GST (18%)
MRP was MRP ₹32,535
Save 20%
3 Business Days
1
90302000
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
| Horizontal | |
| SEC/DIV Range | 2ns/div to 100s/div, in a 1, 2, 5 sequence |
| Vertical | |
| VOLTS/DIV Range | 2mV/div to 10V/div at input BNC |
| Low Frequency Response | (-3db) ≤10Hz at BNC |
| Rise time at BNC, typical | ≤3.5ns |
| Acquisition | |
| Sample rate | 1GSa/s (single channel); 500MSa/s (two channels) |
| Equivalent sampling | 50GSa/s |
| Acquisition Modes | Normal, Peak, Average and High Resolution |
Tecnical Data for Wave Generator:
- Number of channels 1
- Standard waveforms Sine, square, ramp, exponential, noise, DC
- Sine Frequency Range 0.1Hz - 25MHz
- Square Frequency Range 0.1Hz - 10MHz, Duty 1%-99%
- Ramp Frequency Range 0.1Hz-1MHz, Symmetry 0%-100%
- Exponential Frequency Range 0.1Hz-5MHz
- Noise Bandwidth > 25MHz
- DC Offset 1.75V (50Ω), 3.5V(High resistance)
- Arbitrary wave Frequency Range 1µHz-25MHz
- Support PC download and external memory recall
- Output impedance 50 Ω+1%, high impedance
- Amplitude: 5mV - 3.5Vpp(50Ω) / 10mV-7Vpp (High impedance)
- Waveform Depth: 4KSa
- Burst: Types of N Cycle, Infinite, Number of cycles:1-1024
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Input Coupling | DC, AC, GND |
| Input Impedance | 1MOhm±2% 20pF±3pF |
| Probe Attenuation | 1X & 10X |
| Supported Probe Attenuation Factors | 1X, 10X, 100X, 1000X |
| Voltage Rating | 300V CAT II |
| Max. Input Voltage | 300VRMS (10X) |
| Isolation between channels | >40dB |
| Delay deviation between channels | <500ps |
| Display | 7 inchs TFT (Diagonal liquid crystal) |
| Display Resolution | 800 (horizontal) x 480 (vertical) pixels |
| Display type | Point, Vector |
| Waveform Brightness | Adjustable |
| Grid type | Optional |
| Grid & Screen Brightness | Adjustable |
| Persist | 1s, 5s, 10s, 30s, infinite |
| Trigger Mode | Auto, Normal, Single |
