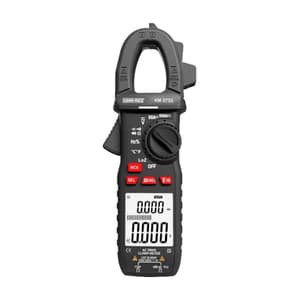

Kusam-Meco 3-5/6 Digit / 6000 Counts 600A AC/DC TRMS Dual Display Digital Clamp Meter, KM 2733
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 230 g
- Display Counts: 6000 Counts
- Display Digits: 3-5/6 Digit
- Measurement Current: 600A AC/DC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,800 (Incl. of all taxes)
₹3,220 + ₹580 GST (18%)
MRP was MRP ₹4,025
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Maximum input voltage between input socket and the earth: 600V RMS
- The measuring principle : Double integral A/D conversion
- Backlight LCD display
- Inbuilt flashligh
- Data Hold Function
- Low battery indication.
- SAFETY : IEC61010-1, IEC61010-2-032 CAT Ill 600V.
Package Content:
- Digital Clampmeter
- Test leads (pair)
- User’s manual
- Battery
- Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 6000 Counts |
|---|---|
| Display Digits | 3-5/6 Digit |
| Measurement Current | 600A AC/DC |
| Jaw Opening (mm) | 28 mm (Max.) |
| Operating Temperature | 0°C ~ 40°C (<80% RH) |
| Storage Temperature | -10°C ~ 50°C (<70% RH, Exclude batteries) |
| Update Rate | 5 Per Second Nominal |
| Sampling Time | about 3 times / second |
| Altitude | Operating below 2000m |
| Auto power off | After 15 minutes |
| Over Range Indication | 'OL' or '-OL' |
| Input Polarity | Display " - " |
| Range Selection | Auto Ranging |
| Sensing | True RMS |
| Polarity | Automatic |
| Power Supply | 2x 1.5V AAA Battery |
| Dimensions (L x W x H) | 185 x 71 x 35 mm |
