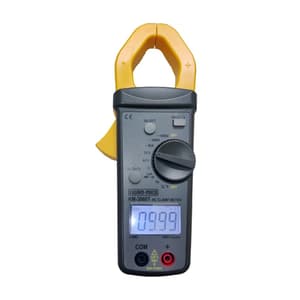

Kusam-Meco 3-5/6 Digits 5999 Counts 1000A AC Digital Clampmeter, KM 3060-T
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 465 g
- Display Digits: 3-5/6
- Display Counts: 5999 Counts
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,454 (Incl. of all taxes)
₹2,080 + ₹374 GST (18%)
MRP was MRP ₹2,600
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Measurement CAT II 600V AC/DC
- Indoor use only
- Maximum Voltage between any terminal & Earth ground 750 Vrms
- Over Range Indication - LCD will show an “OL” in the highest position accompanied. (except for ranges of 1000A AC, and 1000VDC or 750VAC)
- Low Battery Indication - This is displayed when the battery voltage drops below the operating voltage.
- Polarity - Automatic polarity “-” display for negative input
- Auto Power Off - The meter is powered off 15 minutes later after the last operating was made. To bringe back the display please turn rotary switch to more positions or push any button
Package Content:
- Test leads set
- Users Manual
- Battery & Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digits | 3-5/6 |
|---|---|
| Display Counts | 5999 Counts |
| Type of Display | LCD Display |
| Jaw Opening Size | 36 mm (Max.) |
| Polarity Display | Automatic |
| Operating Temperature & Humidity | 0°C to 40°C (R.H.<80%) |
| Operating Principle | Dual Slope Integration |
| Sampling Rate | 2.5 times/sec (Digital Display) |
| Battery Life | 60 hrs approx. (Alkaline) |
| Storage Temperature & Humidity | -10°C to 60°C (R.H.<80%) |
| Power Supply | 1.5 V AA x 2 Alkaline Battery |
| Altitude | 2000 Meters |
| Relatively humidity | 80% max |
| Pollution Degree | 2 |
| Dimension (LxWxH) | 228 x 75 x 36 mm |
