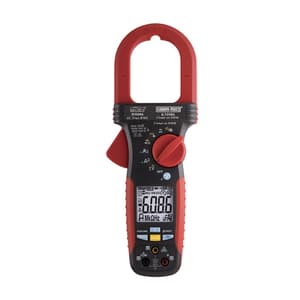

Kusam-Meco 3-5/6 Digits 6000 Counts 1000A AC TRMS Digital Clampmeter With VFD, EF-Detection, KM 086

AmpTip™ low-current range calibrated at Jaw-tip for slim conditions for accurate readings. VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives

Features & Benefits:

• MAX/MIN/AVG Recording mode (Auto-ranging)
• Display Hold & Non-Contact EF-Detection (NCV)
• Back-lighted easy-to-read LCD display
• Fast 80ms Peak-RMS mode to capture in-rush currents
• Auto-ranging Relative mode with DCZero mode & 5ms Crest (Instantaneous Peak-Hold) mode
• 3-Phase Rotation-R for MAINS supply (Probe contact)
• 3-Phase Rotation-M (Hi-sensitivity mode) for Motors (Probe-contact)

Safety:

• Double insulation per UL/IEC/EN61010-1 Ed. 3.0, IEC/EN61010-2-033 Ed. 1.0, CAN/CSA C22.2 No. 61010-1 Ed. 3.0, IEC/EN61010-2-032 Ed. 3.0 & IEC/EN61010-031 Ed. 1.1
• Measurement Category: CAT III 1000V AND CAT IV 600V AC & DC
• E.M.C.: Meets EN61326-1 : 2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11): ACA, DCA and DC+ACA Functions, in an RF field of 1V/m: Total Accuracy = Specified Accuracy + 60 digits at around 200MHz~350MHz DCµA and Ohm Functions, in an RF field of 1V/m: Total Accuracy = Specified Accuracy + 80 digits Other Functions, in an RF field of 3V/m : Total Accuracy = Specified Accuracy + 20 digits
• Overload Protection: Current & Hz functions via jaws - 1000ADC/AAC rms at <400Hz; Voltage & 3-Phase Rotation functions via terminals : 1100VDC/ VAC rms; Other functions via terminals : 1000VDC/ VAC rms
• Pollution Degree: 2 / Rugged Fire retarded casing
• Transient Protection: 8.0kV (1.2/50ms surge)
• LVD EN61010-2-032/EN61010-2-033 to CAT III 1000V & CAT IV 600V

Package Content:

• Test leads set
• Users Manual
• Soft carrying pouch
• Bkp60 banana plug K-type thermocouple
• Alligator Clip set
• BKB32 banana plug to type-K socket plug adaptor (for optional purchase)
