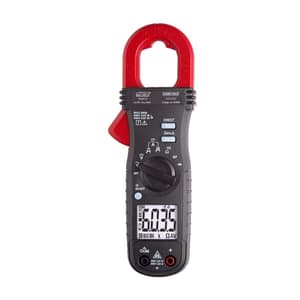

Kusam-Meco 3-5/6 Digits 6000 Counts 600A AC/DC True RMS Digital Clampmeter With EF-Detection, KM 035

AmpTip™ low-current range calibrated at Jaw-tip for slim conditions for accurate readings. Relative Humidity - Maximum relative humidity 80% for temperatures up to 31ºC decreasing linearly to 50% relative humidity at 40ºC

Features & Benefits:

• MAX / MIN Recording mode
• MAX / MIN Crest (Peak-Hold) mode
• Relative-zero mode
• Display Hold
• EF-Detection (NCV)
• Back-lighted easy-to-read LCD display
• Fully Autoranging
• BeepLit &trade Feature
• Temperature Coefficient - Nominal 0.1 x (specified accuracy) / °C @ (0°C –– 18°C or 28°C –– 40°C), or otherwise specified
• Low Battery - Below approx. 2.85V for Capacitance & Hz / Below approx. 2.5V for other functions

Safety:

• Certified per IEC/UL/CSA_C22.2_# / EN standards. 61010-1 Ed.3.0, 61010-2-032 Ed. 3.0,61010-2 033 Ed. 1.0 & 61010-031 Ed. 2.0 to Measurement Categories CAT III 600V AND CAT IV 300V AC & DC.
• Overload Protection - Current via jaws : 600A DC / AC rms at <400Hz; Voltage via terminal: 660V DC / 920VAC rms; Other functions via terminals : 600V DC / VAC rms
• Pollution Degree - 2 / Rugged Fire retarded housing
• E.M.C.: Meets EN61326-1 DCA and ACA Functions, in an RF field of 1V/m: Total Accuracy = Specified Accuracy + 40 digits at around 87MHz; DCµA & Ohm Functions, in an RF field of 1V/m: Total Accuracy = Specified Accuracy + 25 digits; Other Functions, in an RF field of 3V/m: Total Accuracy = Specified Accuracy + 20 digits
• Transient Protection : 6.0kV (1.2/50µs surge)
• LVD EN61010-1/61010-2-032/61010-2-033 to CAT III 600V & CAT IV 300V

Package Content:

• Test leads set
• Users Manual
• Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
