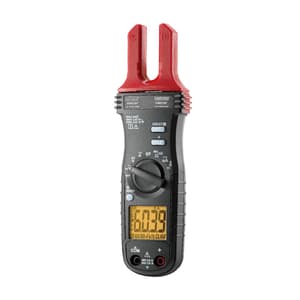

Kusam-Meco 3-5/6 Digits 6000 Counts LCD Display True RMS Digital Fork Clampmeter, KM 039F

• Fork-clamp Current measurement
• 12mm Slim-Probe open jaws for easy slide into tight wirings.
• Cx range 200.0µF to 2500µF for start & run motor capacitors.
• MAX/MIN Recording Mode.
• 5ms Crest (Peak-Hold) Mode.

Features & Benefits:

• Backlight Display
• Non-Contact EF-Detection (NCV) with Hi/Lo Selectable Sensitivities
• Probe-contact EF-Detection (Single-pole) for precise indication of live
• Auto-ranging for all ranges
• Relative Mode / Data Hold
• BeepLit feature for Diode & Continuity
• Intelligent Auto-Power off
• Relative Humidity - Maximum relative humidity is 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40 °C
• Temperature Coefficient - nominal 0.1x (specified accuracy) / °C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C), or otherwise specified
• Low Battery Indication - Below Approx. 2.85V for Capacitance & Hz; Below Approx. 2.5V for other functions

Safety:

• Certified per IEC/EN/CSA_C22.2_No./ULstandards: 61010-1 Ed. 3.0, 61010-2-032 Ed. 3.0, 61010-2-033 Ed. 1.0, & 61010-031 Ed. 2.0 to Measurement Categories CAT III 600V and CAT IV 300V ac & dc.
• Overload Protection: Current via Fork-Clamp: 200A AC rms at <400Hz / Voltage via terminals: 66V DC / 920V AC rms. / Other functions via terminals: 600V DC / VAC rms
• E.M.C.: Meets EN61326-1:2013 ACA functions, in an RF field of 1V/m: Total Accuracy = Specified Accuracy + 40 digits at around 87MHz; DCmA and Ohm Functions, in an RF field of 1V/m: Total Accuracy = Specified Accuracy + 25 digits; Other Functions, in an RF field of 3V/m: Total Accuracy = Specified Accuracy + 20 digits

Package Content:

• Test leads set
• Battery
• User Manual
• Bkp60 banana-plug type-k thermocouple & carrying case
