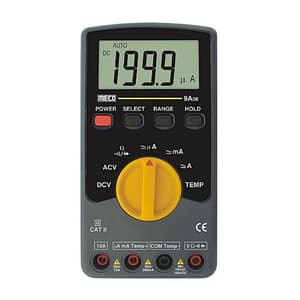

Meco 3-1/2 Digit / 2000 Count Autoranging Digital Multimeter, 9A06

Shop all Meco

SKU: ME.EL.MU.00025

Model: 9A06

Roll over the image to zoom in

Visit Meco Store

Key Features

  • Product Type: Multimeter
  • DC Voltage: upto 1000V
  • AC Voltage: upto 750.0V
  • Power: 1.5V Battery
See all product information

ToolBuy Benefits

₹2,726 (Incl. of all taxes)

₹2,310 + ₹416 GST (18%)

MRP was MRP ₹2,718

Save 15%

Out of Stock

3 Business Days

1

90303100

Download Product LeafletNot available
Download Meco CatalogueNot available

Highlights

3½ Digit / 2000 Count Digital Multimeter Accuracies are ± (% reading plus number of digits) at 27 ± 5°C and humidity of less than 75% RH.

Features & Benefits:

  • 3 1/2 digit liquid crystal display (LCD) 22.0 mm height, max. reading 1999 with automatic decimal point selection annunciators of mv, V, µA, mA, A, V, KV, MV,  AC, DC, 0C, 0 F, MH, AUTO,
  • Auto & Manual for Voltage, Resistance, µA, mA & A measurement.
  • Automatic, ( - ) negative polarity indication.
  • ‘OL’ is displayd except in 1000VDC, 750VAC & 10A AC/DC range.
  • 3 measurement per second
  • 0°C to + 50°C at > 75% RH (Noncondensing)
  • -20°C to + 60°C, 0-80% RH with battery removed
  • Accuracy specificaton at 27 ± 5°C and less than 75% RH.
  • Digital Display for Reading
  • Continuity Mode
  • Centigrade / Fahrenheit Temperature Measurement
  • Low Battery Indication
  • Auto Range Mode
  • Diode Measurement Mode


Accessories:

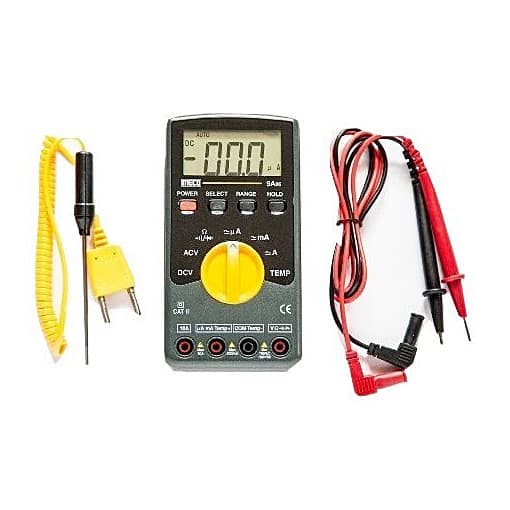

  • One Pairs of Test Leads,
  • Carrying Case,
  • Battery (installed),
  • Instruction Manual,


Operation:


Power Switch

  •  Power switch enables to switch on the power to the meter.


AC - DC / ºC- ºF Select Switch

  • The switch is used for Current ,Resistance & Temperature measurement.
  • In current measurement initially DC value is measured & ‘ DC ’ is displayed on LCD. To measure AC value press ‘ SELECT ’ switch.
  • The display will change from ‘ DC ’ to ‘ AC ’. Again switch over to ‘ DC ’ press the switch once more.
  • In resistance measurement the switch is used to change over between V / / measurement.
  • In temperature measurement the switch is used to change over 0C-0F measurement. The corrosponding annunciator will be displayed.


Range Switch

  • Range switch is used to operate the meter in Manual mode.
  • The present range of the meter will be increased by pressing the Range switch.
  • To come out of manual mode press RANGE switch for approx 2 seconds.
  • The meter will operate in AUTO mode again and AUTO will be displayed on LCD.


Hold Switch

  • When Hold switch is pressed the present data is locked and MH symbol appears on LCD.
  • When Hold switch is pressed again, the meter functions normally and MH sign disappears.


Buzzer

  • It sounds when operating SELECT switch, HOLD switch and RANGE switch.
  • It sounds for less than threshold level in continuity function.



Auto Power Off:

The meter will be switched off if no Function switch or key is used for
approx 15 minutes. To restart press hold key.


Voltage Measurement (DC/AC)

  • Connect red test lead to ` V ’ input terminal and black test lead to ‘COM’ input terminal.
  • Set the function switch to (DCV or ACV) position.
  •  Connect test lead to the device or circuit being measured.
  • Turn on power to the device or circuit being measured voltage value will appear on the digital display along with the voltage polarity.
  • Turn off power to the device or circuit being tested and discharge all capacitors prior to disconnecting test lead.


Current Measurement (DC/AC)

  • Switch on the multimeter by pressing ‘ POWER ’ switch.
  • Connect red test lead to the ‘ µA / mA ’ input terminal for current measurements up to 200 milliamperes.
  • Connect black test lead to the ‘COM’ input terminal. For current greater than 200mA, connect red test lead to `A’ terminal.
  • Set Function switch to ‘ µA, mA & A ’as per measurement. If the range of current to be measured is not known, start from the higherrange ie. `A’ and change range as required.
  • Select DC or AC by Pressing ‘ SELECT ’ Switch.
  • Open the circuit in which current is to be measured. Now securely connect test leads in series with the load in which current is to bemeasured.
  • Turn on power to the device or circuit being tested.
  • Read current value on digital display.
  • Turn off all power to the device or circuit being tested and discharge all capacitors.
  • Disconnect test leads from circuit & reconnect circuit that was being tested.


Resistance Measurements

  • Switch on the multimeter by pressing ‘ POWER ’ switch.
  • Connect red test lead to ‘ V ’ input terminal and black test lead to ‘COM’ input terminal.
  • Set the Function Switch to ‘ V ’ position.
  • If the resistance being measured is part of a circuit, turn off power to the circuit and discharge all capacitors.
  • Connect test leads to the device or circuit being measured. When measuring high resistance, be sure not to contact adjacent points even if insulated, because some insulators have a relatively low insulation resistance, causing the measured resistance to be lower than the actual resistance
  • Read resistance value on digital display. If a high resistance value is shunted by large value of capacitance, allow digits to stabilize


Diode & Continuity

  • Switch on the meter by pressing ‘POWER’ switch.
  • Set FUNCTION switch to ‘ V ’ position.
  • Press ‘SELECT’ switch once, ‘ ’ will be displayed.
  • Connect black test lead to the cathode side and red test lead to the anode side of the semiconductor. Display reading is forward voltage.
  • Connect the test leads in reverse of 2 above. If the display reading is same as when the leads are open, the semiconductor is good, otherwise it is defective.
  • Press ‘SELECT’ switch once ‘ ’ will be displayed.
  • Insert black test lead into ‘ COM ’ terminal and red test lead to ‘ V ’ Terminal.
  • Remove power from the circuit being tested and discharge all capacitors.
  • Connect the test leads to the circuit being measured. If resistance value is lower than 50V, buzzer sounds.


Temperature Measurement

  • Switch on the multimeter by pressing ‘POWER’ switch.
  • Set function switch to ‘ TEMP ’ position.
  • Connect ‘ Red ’ probe of K type thermocouple to ‘mA / mA / TEMP ( + )’ terminal and ‘ Black ’ probe to ‘COM / TEMP ( - )’ terminal.
  • Touch the end of temperature probe to the area or serface of the object whose temperature is to be measured. The display reading is in 0 C.
  • Press ‘SELECT’ switch to measure reading in 0 F scale



Electrical Specification:

DC Voltage: 200mV, 2V, 20V, 200V, 1000V
Accuracy: : ± (0.5% rdg + 4 dgt) on 200mV & 2V ± (0.7% rdg + 4 dgt) on 20V & 200V ± (1% of rdg + 4 dgt) on 1000V
Resolution: 100µV to 1V
Input Impedance: 10MV on all ranges except, > 20MV on 200mV 11MV on 2V
Overload Protection: 500V DC/350V AC for 15 sec. on 200mV range, 1200V DC/800V AC on all other range.
AC Voltage: 200mV, 2V, 20V, 200V, 750V
Accuracy:± (1.0% rdg + 8 dgt) on all ranges except, ± (1.5% rdg + 8 dgt) on 750V
Resolution : 1mV to 1V
Input Impedance : 10MV on all ranges except, 11MV on 2V
Overload Protection : 1200V DC/800V AC on all ranges
DC Current:  200µA, 2000µA, 20mA, 200mA, 10A
Accuracy:: ± (1.5% rdg + 4 dgt) on all ranges
Resolution : 100µA to 10mA
Burden Voltage : 325mV max on all ranges except, 750mV max on 10A range.
Overload Protection : 0.5A / 250V fused on all ranges except, 10A / 600V fused on 10A
AC Current: 200µA, 2000µA, 20mA, 200mA, 10A
Accuracy: ± (2.2% rdg + 4 dgt) on all ranges Resolution : 100µA to 10mA
Burden Voltage : 325mV max on all ranges except, 750mV max on 10A range.
Overload Protection : 0.5A / 250V fused on all ranges. 10A / 600V fuse on 10A
Resistance: 200V, 2KV, 20KV, 200KV, 2MV, 20MV
Accuracy: ± (0.7% rdg + 4 dgt) on all ranges except ± (1.2% of rdg + 4 dgt) on 2MV ± (2.5% of rdg + 4 dgt) on 20MV
Resolution : 0.1V to 10KV Test Current : 0.7mA on 200V, 0.1mA on 2KV, 30µA on 20KV, 4µA on 200KV
Overload Protection : 500V DC/AC
Continuity Check
Threshold Level : 50V Approx.
Response Time : 1m Sec. Approx.
Open Circuit Voltage : 0.4V Approx.
Indication : ‘ ’ is displayed on LCD and buzzer sounds at continuity.
Diode Test: 1.0 ± 0.6 mA Approx.
Open Circuit Voltage : 0.4V Approx
Temperature: : -20ºC to 1300ºC -4ºF to 1999ºF
Accuracy : ± (2.0% rdg + 4 dgt) ºC
Resolution : 10 C
Sensor : K Type Thermocouple


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Meco 3-1/2 Digit / 2000 Count Autoranging Digital Multimeter, 9A06
DC Voltageupto 1000V
AC Voltageupto 750.0V
DC Currentupto 10A
AC Currentupto 10A
ResistanceUpto 200M
Power1.5V Battery
Battery Life200 Hrs (Typical)
Display3 Digit LCD Display
Dimensions161 x 86 x 33 mm
Sample rate3 measurement per second
