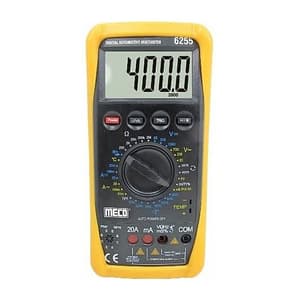

Meco 3-1/2 Digit / 2000 Count Digital Multimeter With Holestar, 6255
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 370 g
- DC Voltage: upto 1000V
- AC Voltage: upto 700V
- Power: 9V Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,109 (Incl. of all taxes)
₹4,330 + ₹779 GST (18%)
MRP was MRP ₹5,094
Save 15%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
3½ Digits / 2000 Count Digital Multimeter With Holestar, Automatic terminal blocking mechanism, K Type Thermocouple, Temperature, RPM, Ignition Frequency, MS Pulse Width, Baclight, hFE (Transitor test), Diode Test, Audible Continuity, Data Hold, and APO functions
Features & Benefits:
- Terminal Shutter Interlock Mechanism Prevents Wrong Opertions
- 11 Functions
- Heavy Duty Rubber Holster
- Data Hold, Auto Power Off
- Measurement of Duty, Ignition Frequency, Ms-Pulse Width, RPM & DWELL
- 3½ Digits
- 2000 Counts
- DC Voltage upto 1000V
- AC Voltage upto 700V
- DC Current upto 20A
- AC Current upto 20A
- Resistance upto 2MΩ
- Frequency upto 20KHz
- Duty Cycle 1% ~ 99%
- Pulse Width 0.1mS ~ 999.9mS
- Rotational Speed (RPM)
- Temperature
- hFE (Transistor Test)
- Diode Test
- Audible Continuity
- Automatic Terminal Blocking Mechanism
- Data Hold
- LCD Display with Backlight
- Holster
- Auto Power Off
- Low Battery Indication
Electrical Specifications:
| Ignition Frequency: 0.1Hz ~ 20KHz Accuracy: ±(1.5%+10) |
| Pulse Width: 0.1 ~ 999.9ms Accuracy: ±(1.5% + 10) |
| RPM: 2STR : 300 ~ 19999 rpm / 4STR : 600 ~ 19999 rpm Accuracy ±(3% + 5) |
| DC Voltage:20V / 200V / 1000V Accuracy: ±(0.5% + 3) on all except, ±(0.8% + 3) on 1000V |
| AC Voltage: 20V / 200V / 700V Accuracy: ± (1.0% + 5 ) on all ranges except ±(1.2% + 5) on 700V |
| DC Current: 20mA / 200mA / 20A Accuracy: ±(1.5%+ 5) on 20mA / 200mA ±(2% + 10) on 20A |
| AC Current :20mA / 200mA / 20A Accuracy: ±(2% + 5) on 20mA / 200mA, ±(3% + 10) on 20A |
| Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ Accuracy: ±(1% + 5) on 200Ω & ±(1% + 1) on 2KΩ / 20KΩ / 200KΩ / 2MΩ |
| Frequency: 2KHz / 20KHz Accuracy:±(1.5% + 10) |
| Duty Cycle:0.1% - 99.9% Accuracy: No |
| Temperature: -40 ~ 0°C / 0 ~ 400°C / 400 ~1000°C Accuracy: ±(5%+5) on -40 ~ 0°C, ±(1% + 3) on 0 ~ 400°C, ± (2.0% + 3dgt) on 400 ~1000°C |
| DWELL: 1 / 2 / 3 / 4 / 5 / 6 / 8 Accuracy: ±(3%+5) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Voltage | upto 1000V |
|---|---|
| AC Voltage | upto 700V |
| DC Current | upto 20A |
| AC Current | upto 20A |
| Resistance | upto 2MO |
| Power | 9V Battery |
| Pulse Width | 0.1 mS ~ 999.9 mS |
| Display | 4 Digit LCD Display |
| Dimensions | 200 x 85 x 38 mm |
| RPM | 19999 rpm |
