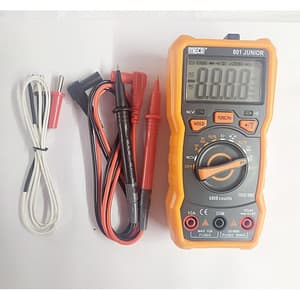

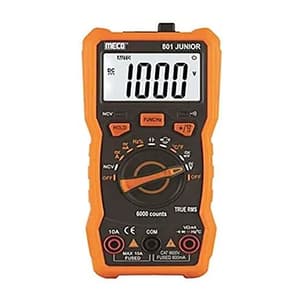

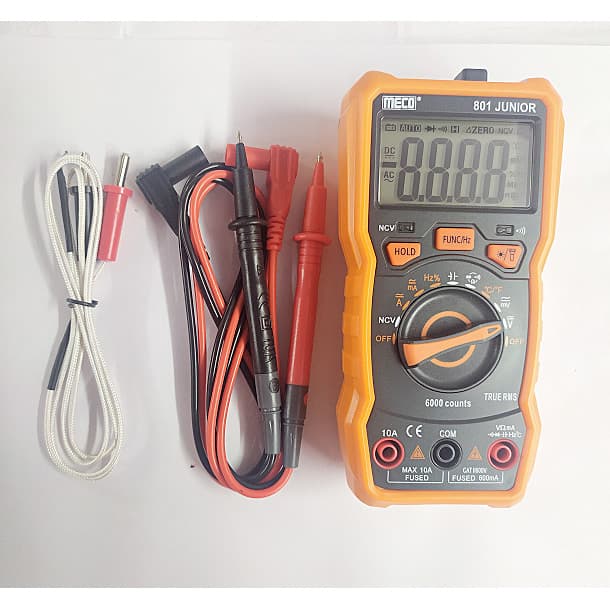

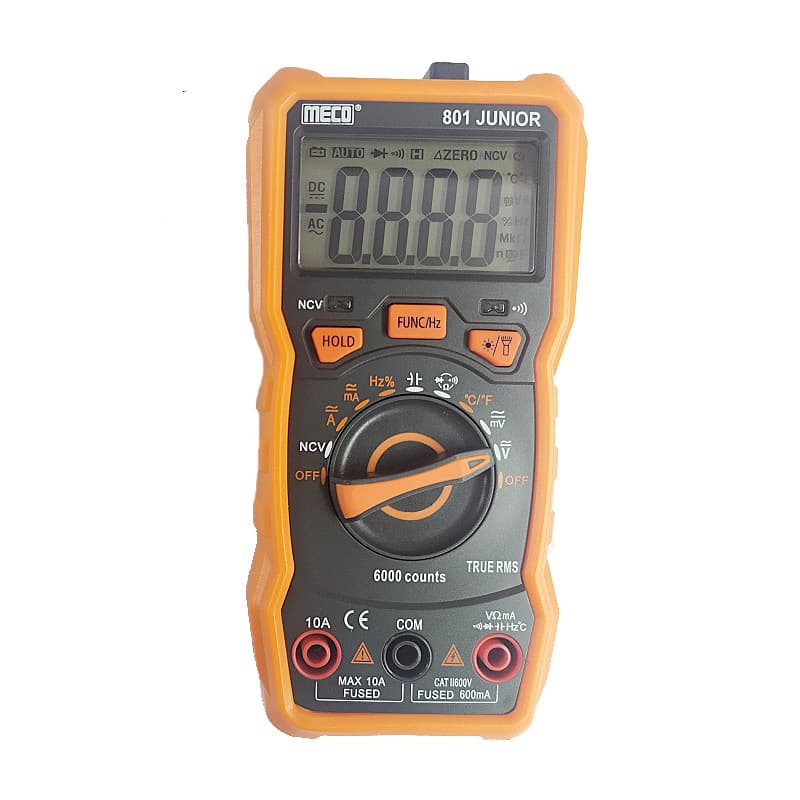

Meco 3% Digit / 6000 Count TRMS Autoranging Digital Multimeter With Holster & Magnet, 801 Junior

Shop all Meco

SKU: ME.EL.MU.00023

Model: 801 JUNIOR

Roll over the image to zoom in

Visit Meco Store

Key Features

  • Product Type: Multimeter
  • DC Voltage: upto 1000V
  • AC Voltage: upto 750.0V
  • Power: 2 X 1.5 V 'AAA' Battery
See all product information

ToolBuy Benefits

₹1,652 (Incl. of all taxes)

₹1,400 + ₹252 GST (18%)

MRP was MRP ₹1,647

Save 15%

3 Business Days

1

90303100

Download Product LeafletNot available
Download Meco CatalogueNot available

Highlights

3% Digit / 6000 Count TRMS Autoranging Digital Multimeter With Holster & Magnet with K Type Thermocouple, Temperature, Frequency, Backlight, Capacitence, Torch Light, APO,  NCV (LED Buzzer & EF Strength), Duty Cycle, Diode Test, Audible Continuity, Data Hold and APO functions


Features & Benefits:

  • 3 % Digits
  • 6000 Counts
  • TRMS
  • Auto Ranging
  • DC Voltage upto 1000V
  • AC Voltage upto 750V
  • DC Current upto 10A
  • AC Current upto 10A
  • Resistance upto 60MΩ
  • Capacitance upto 100.0mF
  • Frequency upto 10.00MHz
  • Duty Cycle 1% ~ 99%
  • Temperature
  • Diode Test
  • NCV (LED, Buzzer & EF Strength)
  • Continuity Test (LED, Buzzer & EF Strength)
  • LCD with Backlight
  • Data Hold
  • Auto Power Off
  • Holster with Magnet
  • Torch Light
  • Test Lead Gripper
  • Low Battery Indication


Accessories:

  • K Type Bead Probe,
  • Holster,
  • Instrcution Manual,
  • K Type Thermocouple,
  • Battery Installed,
  • K Type Stick Probe,
  • Pair of Spare Fuse,
  • Pair of Test Leads Suitable for DMM / DTT,
  • Pair of Test Leads Suitable for Insulation Tester

DC Voltage: 60 / 600mV / 6 / 60 / 600 / 1000V
Accuracy: ± (0.8% rdg + 5 dgt)
AC Voltage TRMS: 60 / 600mV / 6 / 60 / 600 / 750V
Accuracy: ± (1.0% rdg + 10 dgt) on 60 /600mV,   ± (1.0% rdg + 4 dgt) on all other
AC Response: 40Hz - 1KHz
DC Current:  60 / 600mA / 6 / 10A
Accuracy: ±(1.2% rdg + 4 dgt) on 60 /600mA , ±(3.0% rdg + 2 dgt) on 6A,  ±(5.0% rdg + 10 dgt) on 10A
AC Current TRMS: 60 / 600mA / 6 / 10A
Accuracy: ±(1.5% rdg + 3 dgt) on 60 /600mA , ±(3.0% rdg + 5 dgt) on 6A,  ±(5.0% rdg + 10 dgt) on 10A
AC Response: 40Hz - 1KHz
Resistance: 600Ω / 6 / 60 /600KΩ / 6 / 60MΩ
Accuracy: ± (0.8% rdg + 3 dgt)
Capacitance: 60.00 / 600.0nF / 6.000 / 60.00 / 600.0 µF /6.000/60.00/ 100.0mF
Accuracy: ±(3.0% rdg + 5 dgt) on all ranges except ±(5.0% rdg + 20 dgt) on 60.00nF ±(5.0% rdg + 5 dgt) on 60.00 / 100.0mF
Frequency: 60Hz to 10.00 MHz
Sensitivity: 200mV to 10V AC
Accuracy: ±(1.5% rdg + 5 dgt)
Duty Cycle: 1% - 99 %
Accuracy: ±(1.5% rdg + 5 dgt)
Temperature: -20ºC - 1000ºC / -4ºF - 1832ºF
Accuracy: ±(1.0% rdg + 5 dgt)


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Meco 3% Digit / 6000 Count TRMS Autoranging Digital Multimeter With Holster & Magnet, 801 Junior
DC Voltageupto 1000V
AC Voltageupto 750.0V
DC Currentupto 10A
AC Currentupto 10A
ResistanceUpto 60MO
Power2 X 1.5 V 'AAA' Battery
Battery Life200 Hrs (Typical)
Display4 Digit LCD Display
Dimensions147 x71 x 45 mm
Measuring CategoryCAT II 600V
SP FunctionDiode Test, Continuity Test, Data Hold & NCV Test (LED Buzzer & EF Strength)
