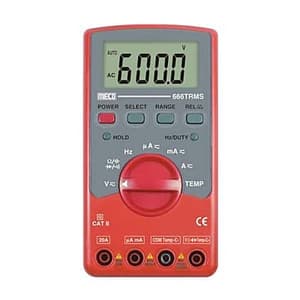

Meco 3-5/6 Digit / 6600 Count Autoranging Digital Multimeter With Holestar, 666TRMS
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 370 g
- DC Voltage: upto 1000V
- AC Voltage: upto 750.0V
- Power: 2 X 1.5 V 'AA' Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,277 (Incl. of all taxes)
₹2,777 + ₹500 GST (18%)
MRP was MRP ₹3,267
Save 15%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
3% Digit / 6000 Count Autoranging Digital Multimeter With Frequency, K Type Thermocouple, Temperature, Capacitance, Duty Cycle, Diode Test, Audible Continuity, Data Hold, and APO functions
Features & Benefits:
- 3 5/6 Digits
- 6600 Counts
- TRMS
- Auto / Manual Ranging
- DC Voltage upto 1000V
- AC Voltage upto 750V
- DC Current upto 20A
- AC Current upto 20A
- Resistance upto 60MΩ
- Capacitance upto 9.999mF
- Frequency upto 10.00MHz
- Duty Cycle 0.1% ~ 99.9%
- Temperature
- Diode Test
- Audible Continuity
- Data Hold
- Auto Power Off
- Low Battery Indication
Accessories:
- One Pair of Test Leads,
- Carrying Case,
- Battery (installed),
- Instruction Manual,
- K Type Thermocouple (upto 260 C)
| DC Voltage: 600mV/ 6 / 60 / 600 / 1000V Accuracy: ± (1.0% rdg + 4 dgt) on 600mV, ± (0.5% rdg + 2 dgt) on 6/60/600V, ±(1.0% rdg + 3 dgt) on 1000V |
| AC Voltage TRMS: 600mV / 6 / 60 / 600 / 750V Accuracy: ± (1.0% rdg + 5 dgt) on all ranges except ± (1.2% rdg + 5 dgt) on 600mV ± (1.5% rdg+5 dgt) on 750V AC Response: 40Hz - 1KHz |
| DC Current: 600 / 6000 A / 60 / 600mA / 6 / 20A Accuracy: ± (1.0% rdg + 2 dgt) on 600/6000 A ± ((1.2% rdg + 3 dgt) on 60/600mA ± (1.5% rdg + 5 dgt) on 6 / 20A |
| AC Current TRMS: 600 / 6000μA / 60 / 600mA / 6 / 20A Accuracy: ± ((1.5% rdg + 5 dgt) on 600/6000μA , ± (2.0% rdg + 5 dgt) on 60/600mA , ± (2.5% rdg + 5 dgt) on 6/20A AC Response: 40Hz - 500Hz |
| Resistance: 600 / 6 / 60 / 600K / 6 / 60M Accuracy: ± (1.2% rdg + 2 dgt) on 600 & 6, ± (1.0% rdg + 2 dgt) on 6/60/600k ± (1.5% rdg + 2 dgt) on 60M |
| Capacitance: 9.999 / 99.99 / 999.9nF/ 9.999 / 99.99 / 999.9 F/ 9.999mF Accuracy: ±(2.0% rdg + 4 dgt) on all ranges except ± (3.0% rdg + 4 dgt) on 9.999mF |
| Frequency: 99.99Hz - 20.00MHz Accuracy: ± (0.05% rdg + 4 dgt) |
| Duty Cycle: 0.1% ~ 99.9% Accuracy: ± ((0.05% rdg + 4 dgt) |
| Temperature: 40ºC ~ 1000ºC / -40ºF ~ 1832ºF Accuracy: ± (3.0% rdg + 4dgt) on -40ºC ~ 0ºC / -40ºF ~ 32ºF, ± (1.0% rdg + 3dgt) on 0ºC ~ 400ºC / 32 F ~ 750 F, ± (2.0% rdg + 5dgt) on 40ºC ~ 1000ºC / -40ºF ~ 1832ºF |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Voltage | upto 1000V |
|---|---|
| AC Voltage | upto 750.0V |
| DC Current | upto 20A |
| AC Current | upto 20A |
| Resistance | upto 60M |
| Power | 2 X 1.5 V 'AA' Battery |
| Battery Life | 200 Hrs (Typical) |
| Display | 4 Digit LCD Display |
| Dimensions | 161 x 86 x 43 mm |
| Measuring Category | CAT ll |
| SP Function | Diode test, Audible Continuity, Data Hold |
