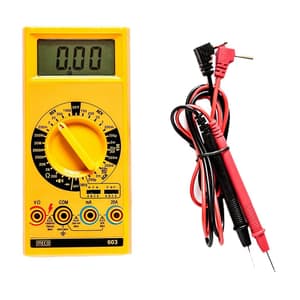

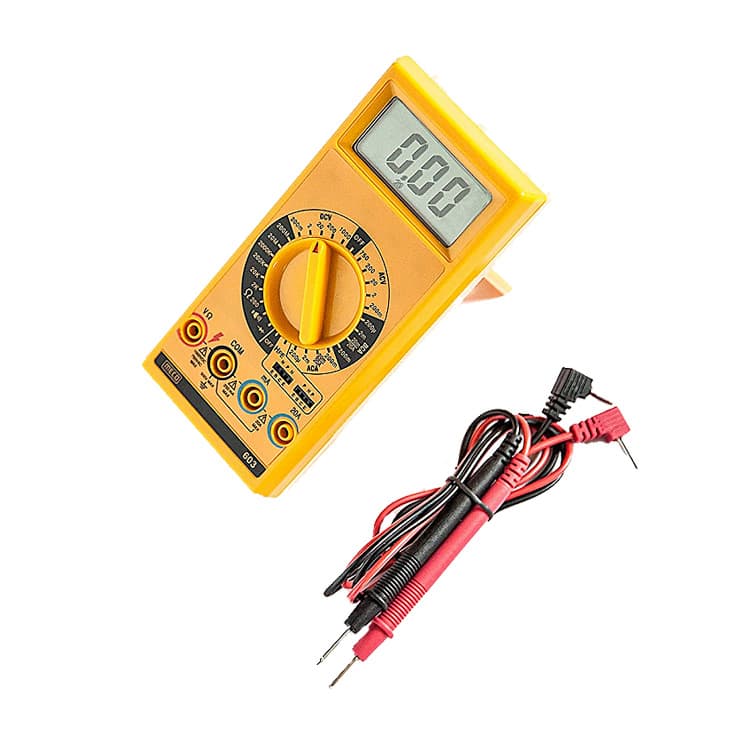

Meco 3-1/2 Digit / 2000 Count Digital Multimeter With 20A AC/DC, 603
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- DC Voltage: upto 1000V
- AC Voltage: upto 750.0V
- Power: 9V Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,643 (Incl. of all taxes)
₹1,392 + ₹251 GST (18%)
MRP was MRP ₹1,638
Save 15%
Out of Stock
3 Business Days
1
90303100
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
3½ Digit / 2000 Count Digital Multimeter With 20A AC/DC, hfe, Audible Continuity and Diode Test functions
Features & Benefits:
- 3½ Digits
- 2000 Counts
- Manual Ranging
- DC Voltage upto 1000V
- AC Voltage upto 750V
- DC Current upto 20A
- AC Current upto 20A
- Resistance upto 200MΩ
- Audible Continuity
- Diode Test
- hFE Test (Transistor Test)
- Large LCD Display
- Low Battery Indication
Accessories:
- One Pairs of Test Leads,
- Carrying Case,
- Battery (installed),
- Instruction Manual,
- Spare Fuse
| DC Voltage: 200mV / 2 / 20 / 200 / 1000V Accuracy: ± (0.5% rdg + 1 dgt) |
| AC Voltage: 200 / 750.V Accuracy: ± (1.0% rdg + 4 dgt) on all except ± (1.4% rdg + 4 dgt) on 750V AC Response: 50Hz - 500Hz |
| DC Current: 200µA / 2mA / 20mA / 200mA / 20A Accuracy: ±(1.2% rdg + 4 dgt) on all except , ±(2% rdg + 4 dgt) on 20A |
| AC Current: 200µA / 2mA / 20mA / 200mA / 20A Accuracy: ±(1.2% rdg + 4 dgt) on all except , ±(2% rdg + 4 dgt) on 20A |
| Resistance: 200? / 2k? / 20k? / 200k? / 2000k? / 20M? / 200M? Accuracy: ±(0.8% rdg + 1 dgt) on all except , ±(1% rdg + 3 dgt) on 200?, ±(3% rdg + 3 dgt) on 20M?, ±(5% rdg + 10 dgt) on 200M? |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Voltage | upto 1000V |
|---|---|
| AC Voltage | upto 750.0V |
| DC Current | upto 20A |
| AC Current | upto 20A |
| Resistance | Upto 200MO |
| Power | 9V Battery |
| Battery Life | 200 Hrs (Typical) |
| Display | 3 Digit LCD Display |
| Dimensions | 170 x 80 x 43 mm |
| SP Function | Diode Test, Audible Continuity, hFE Test |
