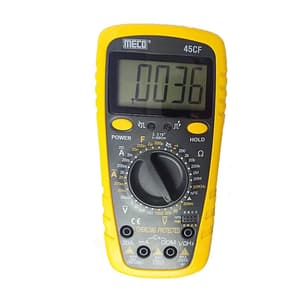

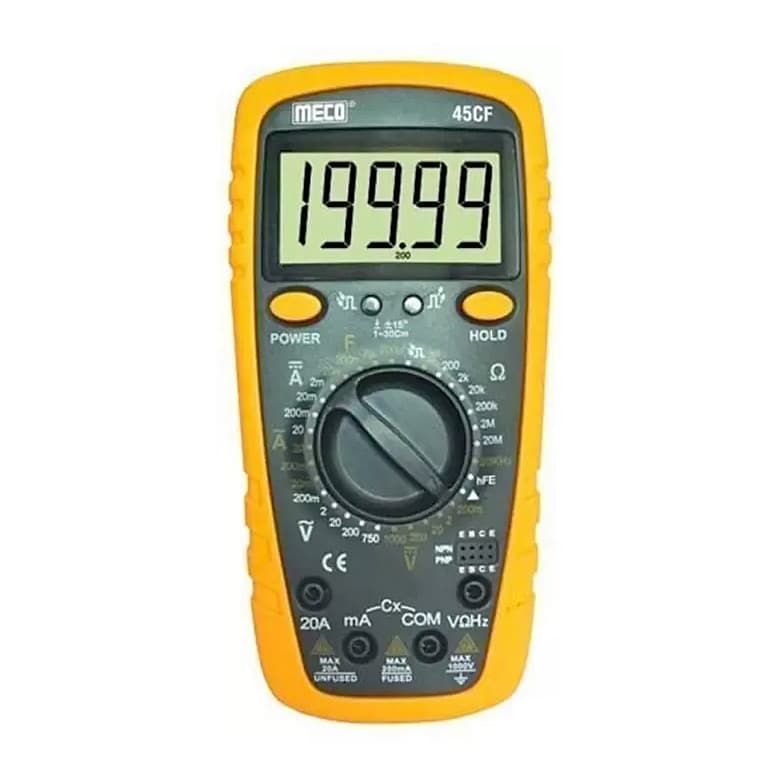

Meco 4-1/2 Digit / 20000 Count TRMS Autoranging Digital Multimeter With Holestar, 45CF
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 230 g
- DC Voltage: upto 1000.0V
- AC Voltage: upto 750.0V
- Power: 1x 9 V Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,467 (Incl. of all taxes)
₹2,938 + ₹529 GST (18%)
MRP was MRP ₹3,456
Save 15%
Out of Stock
3 Business Days
1
90303100
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
4½ Digit / 6000 Count Autoranging Digital Multimeter With Holestar, Live Wire Check, Infrared Remote Control Check, hFE Test, Frequency, Capacitance, Diode Test, Audible Continuity, Data Hold, and APO functions
Features & Benefits:
- 4½ Digits
- 20,000 Counts
- Manual Ranging
- DC Voltage upto 1000V
- AC Voltage upto 750V
- DC Current upto 20A
- AC Current upto 20A
- Resistance upto 20MΩ
- Capacitance upto 200µF
- Frequency upto 20kHz
- Diode Test
- Continuity
- hFE Test (Transistor Test)
- Infrared Remote Control Check
- Live Wire Check
- Data Hold
- Large LCD
- Auto Power Off
- Low Battery Indication

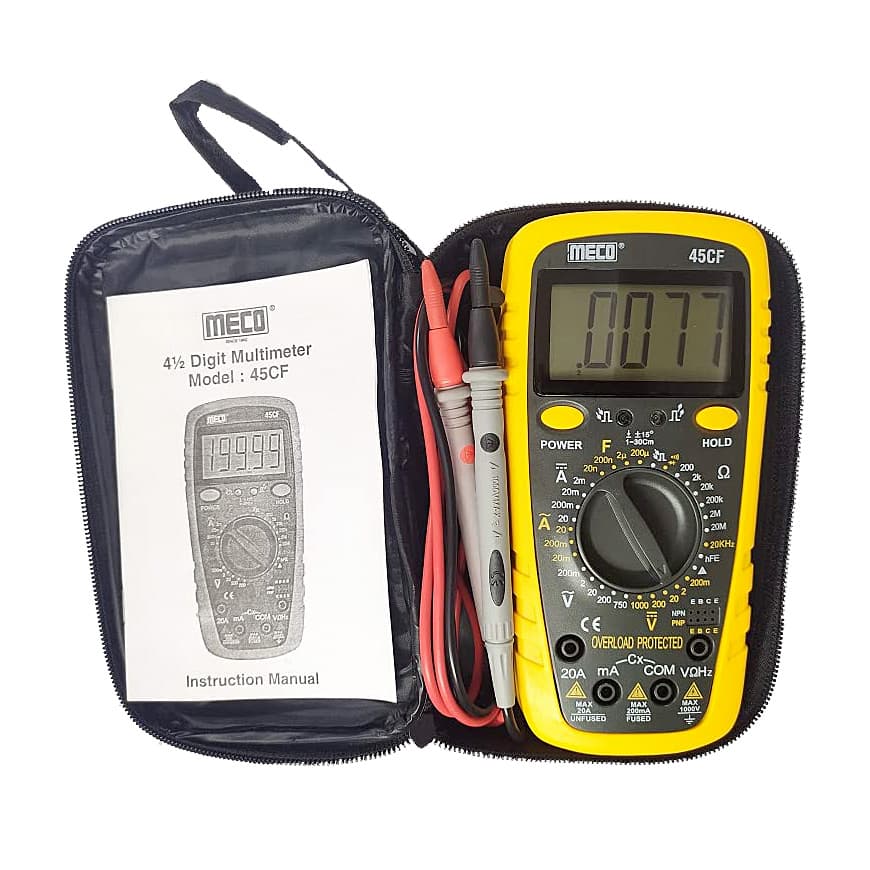

Accessories:
- One Pair of Test Leads,
- Holestar,
- Battery (installed),
- Instruction Manual
Electrical Specification:
| DC Voltage: 200mV /2 /20 /200 /1000V Accuracy:±(0.05%rdg+5dgt) on all ranges except ±(0.1%rdg+5dgt) on 1000V |
| AC Voltage: 200mV / 2 / 20 / 200 / 750V Accuracy: ±(0.8%rdg+10dgt) on all ranges except ±(1.0%rdg +15dgt) on 750V |
| DC Current: 2mA/20/200mA/20A Accuracy: ±(0.5%rdg+5dgt) on 2/20mA ±(0.8%rdg+5dgt) on 200mA ±(2.0%rdg+10dgt) on 20A |
| AC Current: 20 / 200mA / 20A Accuracy: ±(0.8%rdg+10dgt) on 20/200mA ±(3%rdg+10dgt) on 20A |
| Resistance: 200Ω /2Ω/20Ω/200kΩ /2Ω/20MΩ Accuracy:± (0.4% rdg + 5 dgt), ± (0.8% rdg + 5 dgt) on 20MΩ |
| Capacitance: 20/200nF/2/200 F Accuracy: ± (3.0% rdg + 10 dgt), ± (5.0% rdg + 5 dgt) on 20µF |
| Frequency: 20 kHz Accuracy: ± (1.5% rdg + 5 dgt) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Voltage | upto 1000.0V |
|---|---|
| AC Voltage | upto 750.0V |
| DC Current | upto 20A |
| AC Current | upto 20A |
| Resistance | upto 20MO |
| Frequency | upto 20kHz |
| Power | 1x 9 V Battery |
| Battery Life | 150 Hrs (Typical) |
| Display | 4 Digit LCD Display |
| Dimensions | 182 x 90 x 60 mm |
| SP Function | Live Wire Check, Infrared Remote Control Check, hFE Test, Frequency, Capacitance, Diode Test, Audible Continuity, Data Hold, and APO functions |
