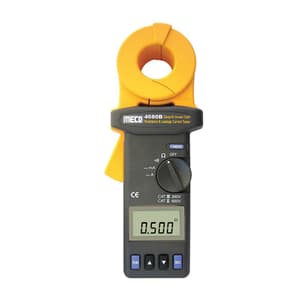

Meco Clamp - On Earth / Ground Resistance & Leakage Current Tester, 4680B
Roll over the image to zoom in
Key Features
- Product Type: Leakage Testers
- Weight: 789 g
- Jaw Opening: 38
- Ground Resistance: 0.025V ~ 1500V
- Leakage Current: 0.300mA ~ 35.00A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,35,108 (Incl. of all taxes)
₹1,14,498 + ₹20,610 GST (18%)
MRP was MRP ₹1,34,703
Save 15%
Out of Stock
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
The clamp-on ground resistance tester enable the users to measure ground resistance of ground rod without the use of auxiliary ground rods. Clamp-on ground resistance tester is used in multi-grounded systems without disconnecting the ground under test.
Features & Benefits:
- Non Contact Ground Resistance Measurement
- No Auxiliary Electrodes Needed
- Recording / 116 Sets of Memory
- Ground Resistance Measurment 0.025V ~ 1500V
- Suitable for Ground Wire upto F 23mm
- Leakage Current (0.300mA ~ 30.00A)
- Programmable High & Low Alarm
- Programmable Data Logging
- Auto Range
- Continuity Loop Test
- Auto Power Off
Accessories:
- Resistance Verification Plate x 1
- Battery (installed) x 1
- User Manual x 1
- Carry Box x 1
- Cleaning Brush x 1
Specifications:
Ground Resistance (Auto Range)
| Range | Resolution | Accuracy Of Reading |
| 0.025 ~ 0.250 V | 0.002 V | ± 1.5%rdg ± 0.05V |
| 0.251 ~ 1.000 V | 0.02 V | ± 1.5%rdg ± 0.05V |
| 1.001 ~ 10.00 V | 0.02 V | ± 1.5%rdg ± 0.1V |
| 10.01 ~ 50.00 V | 0.04 V | ± 2.0%rdg ± 0.3V |
| 50.01 ~ 100.0 V | 0.04 V | ± 2.0%rdg ± 0.5V |
| 100.1 ~ 200.0 V | 0.4 V | ± 3.0%rdg ± 1.0V |
| 200.1 ~ 400.0 V | 2 V | ± 5.0%rdg ± 5V |
| 400.1 ~ 600.0 V | 5 V | ± 10%rdg ± 10V |
| 600.1 ~ 1500 V | 20 V | ± 20%rdg |
2. Resistance Measurement Frequency : 3.333KHz
Ground & Leakage Current: Auto Ranging, 50/60Hz, TRMS, Crest Factor <3.0 for (4680) or <3.5 for (4680B)
| Range | Resolution | Accuracy Of Reading |
| 0.300 ~ 1.000 mA | 0.001 mA | ± 2.0%rdg ± 0.05mA |
| 1.00 ~ 10.00 mA | 0.01 mA | ± 2.0%rdg ± 0.03mA |
| 10.0 ~ 100.0 mA | 0.1 mA | ± 2.0%rdg ± 0.3mA |
| 100 ~ 1000 mA | 1 mA | ± 2.0%rdg ± 3mA |
| 0.200 ~ 4.000A | 0.001A | ± 2.0%rdg ± 0.03A |
| 4.00 ~ 35.00A (4680B) | 0.01A | ± 3.0%rdg ± 0.03A |
Accuracy of Resistance Calibration Plate : ±1%
Data Logging Capacity : 116 Records
Data Logging Interval : 1 ~ 255 Seconds
General Specifications:
| Jaw Opening Size : 23 mm approx. |
| Battery Type : 9V (Alkaline) |
| Display : 4 Digit 9999 Counts LCD |
| Range Selection : Auto |
| Overload Indication : OL |
| Operating Environment : : 00 ~ 500 C, RH < 85% |
| Storage Environment: -200 C ~ 600 C, RH < 75% |
| Dimensions : 276 x 102 x 51 mm (approx.) |
| Weight : 790 gms including battery (approx.) |
| Accessories : Resistance Verification Plate x 1, Battery (installed) x 1, User Manual x 1, Carry Box x 1, Cleaning Brush x 1 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Opening | 38 |
|---|---|
| Ground Resistance | 0.025V ~ 1500V |
| Leakage Current | 0.300mA ~ 35.00A |
| Ground Wire | upto F 34.5mm |
| Power Consumption | 40mA (approx.) |
| Operating Environment | -10°C ~ 55°C |
| Range Selection | Automatically |
| Dimensions | 276 x 102 x 51 mm |
