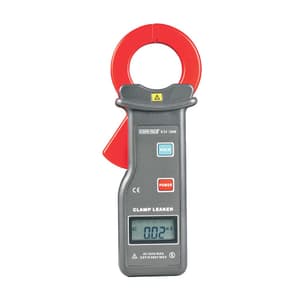

Kusam-Meco 4 Digits 3000 Counts 300A AC Leakage Current Clampmeter with Data logging & PC Interface, KM 2008
Roll over the image to zoom in
Key Features
- Product Type: Leakage Testers
- Weight: 120 g
- Jaw Opening Size: 40 mm
- Display Size: 32 mm x 15 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,968 (Incl. of all taxes)
₹14,380 + ₹2,588 GST (18%)
MRP was MRP ₹17,975
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Function - Measurement of AC leakage current, AC Current up to 300A & online measurement. Auto Power Off - 5 minutes after power on, it will power off automatically to lower the power consumption.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Peak Hold: Push “HOLD” without release, the meter will show the peak value during the pushing period
- Battery Voltage: “- & +” indicating the battery voltage is lower than 7.2V. Then the battery has to be changed.
- Insulation Strength: AC 2kV/rms (between the alloy of the clamp & housing)
- Rs232 Interface: Datastore in the memory of the meter via Rs232 upload to PC or on-line monitoring
Safety:
- IEC1010-1, IEC1010-2-032, pollution degree 2, CAT III (600V)
Technical Data:
| Range | Resolution | Accuracy |
| 0.00mA ~ 60.00A | 10µA | ±(1.5% rdg + 5 dgts) |
| 60.00A ~ 199.9A | 10 mA | ±(2% rdg + 5 dgts) |
| 200.0A ~ 300.0A | 100 mA | ±(4% rdg + 5 dgts) |
Package Content:
- Carrying Case
- Battery installed
- User's Manual
- RS232 PC Interface CD
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sensing | Average sensing |
|---|---|
| Jaw Opening Size | 40 mm |
| Display Size | 32 mm x 15 mm |
| LCD Dimension | 35 mm x 21.5 mm |
| Range | 0.00mA ~ 300.0A |
| Frequency | 50 / 60 Hz (Automatically) |
| Resolution | 10μA |
| Operating Temperature and Humidity | 0°C ~ 40°C : below 80% R.H |
| Storage Temperature and Humidity | -10°C ~ 60°C : below 70%rh |
| Test Mode | Clip-on CT, Integral mode |
| Display Mode | Four Digit LCD display |
| Sampling Rate | About 2 times/s |
| Line Voltage | Line test under AC600V |
| Data Hold | Display shows "DH" symbol |
| Out of Range | Display Shows "ol" Symbol |
| Data Storage | 99 Groups, All Used When Display "FULL" |
| Power Consumption | About 5mW |
| Power | Standard 9V Battery |
| Dimension (WxHxT) | 175 x 70 x 38 mm |
