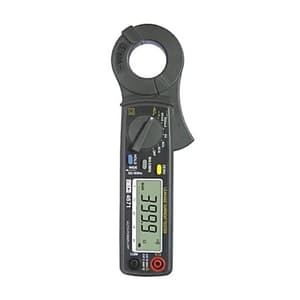

Meco Leakage Current Tester, 4671
Roll over the image to zoom in
Key Features
- Product Type: Leakage Testers
- Weight: 200 g
- Storage Humidity: less tban 75% relative
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹30,971 (Incl. of all taxes)
₹26,247 + ₹4,724 GST (18%)
MRP was MRP ₹30,879
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Leakage Current Tester 10mA high resolution on 40mA range. Shield transformer jaws to minimize the effect of external stray magnetic field. Large jaw with 30 mm diameter. Continuity and frequency measurements. Max/Min, Data Hold functions and Relative Measurement. 600V overload protection for ohm measurement. Easy single rotary switch for any function selection.
Features & Benefits:
- 10µA Ultra High Resolution
- Large Conductor Diameter (30mm)
- AC Current in 5 Ranges (40mA, 400mA, 4A, 40A, 60A)
- Wide Frequency Response (40Hz-1KHz)
- ACA, ACV, Ω and Continuity
- Large 3¾ Digit LCD (4000 Count)
- 40 Segment Fast Bargraph Display (20 times/sec.)
- Data Hold and Max / Min Hold
- Relative Measurement
- 600 Vrms Overload Protection in Resistance Range
Accessories:
- Pair of test leads x 1,
- Instruction manual x 1,
- 1.5V batterys (installed) x 2,
- Carring Case x 1
Specifications:
AC Current
| Accuracy | |||
| Range | Resolution | 50/60 Hz | Wide(40 - 1KHz) |
| 40mA | 10mA | ±1.0%±3dgts | ±2.0%±5dgts |
| 400mA | 100mA | ±1.0%±3dgts | ±2.0%±5dgts |
| 4A | 1mA | ±1.0%±3dgts | ±2.0%±5dgts |
| 40A | 10mA | ±1.0%±3dgts | ±2.0%±5dgts |
| 60A | 100mA | ±1.5%±3dgts | ±3.0%±5dgts |
| 60A(50 -60A) | 100mA | ±3.0%±5dgts | ±3.5%±5dgts |
1Though the metcr can display up to 400A, it is not calibrated beyond 60A
AC Voltage : (Input Impedance : 10MV)
| Accuracy | Overload Protection | |||
| Range | Resolution | 50/60 Hz | Wide(40 - 1KHz) | |
| 400V | 0.1V | ±1.5%±2dgts | ±2.0%±4dgts | AC 800V |
Resistance (V) and Continuity : (open voltage 0.4V)
| Range | Resolution | Accuracy | Beeping | OL Protection |
| 40 - 400V | 0.1V | ±1.0%±2dgts | < 38.0 V | AC 600V |
| Indoor Use Conductor Size : 30mm max. (approx.) |
| Battery Type : two 1.5V SUM-3 |
| Display : 3¾ LCD with 40 seg. bargraph |
| Range Selection : manual |
| Overload Indication : left most digit blinks |
| Power Consumption : 10 mA (approx.) |
| Low battery Indication : B |
| Sampling Time : 2 times/sec. (display) 20 times/sec. (bargraph) |
| Operating Temperature : -100C to 500C |
| Operating Humidity : less than 85% relative |
| Storage Temperature : -200 C to 600 C |
| Storage Humidity : less tban 75% relative |
| Altitude : up to 2000M |
| Dimensions : 210 x 62.0 x 35.6mm (approx.) |
| Weight : 200gms including battery (approx.) |
| Accessories : Carrying bag x 1 Instruction manual x 1 1.5V battery (installed) x 2 Pair of test leads x 1 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| High Resolution | 10μA |
|---|---|
| Diameter | 30 mm |
| AC Current (A) | 40mA, 400mA, 4A, 40A, 60A |
| Frequency | (40Hz-1KHz) |
| Overload Protection | 600 Vrms |
| Altitude | up to 2000M |
| Storage Humidity | less tban 75% relative |
| Dimensions | 210 x 62.0 x 35.6mm (approx.) |
