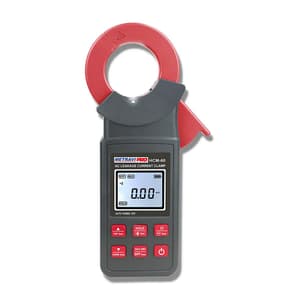

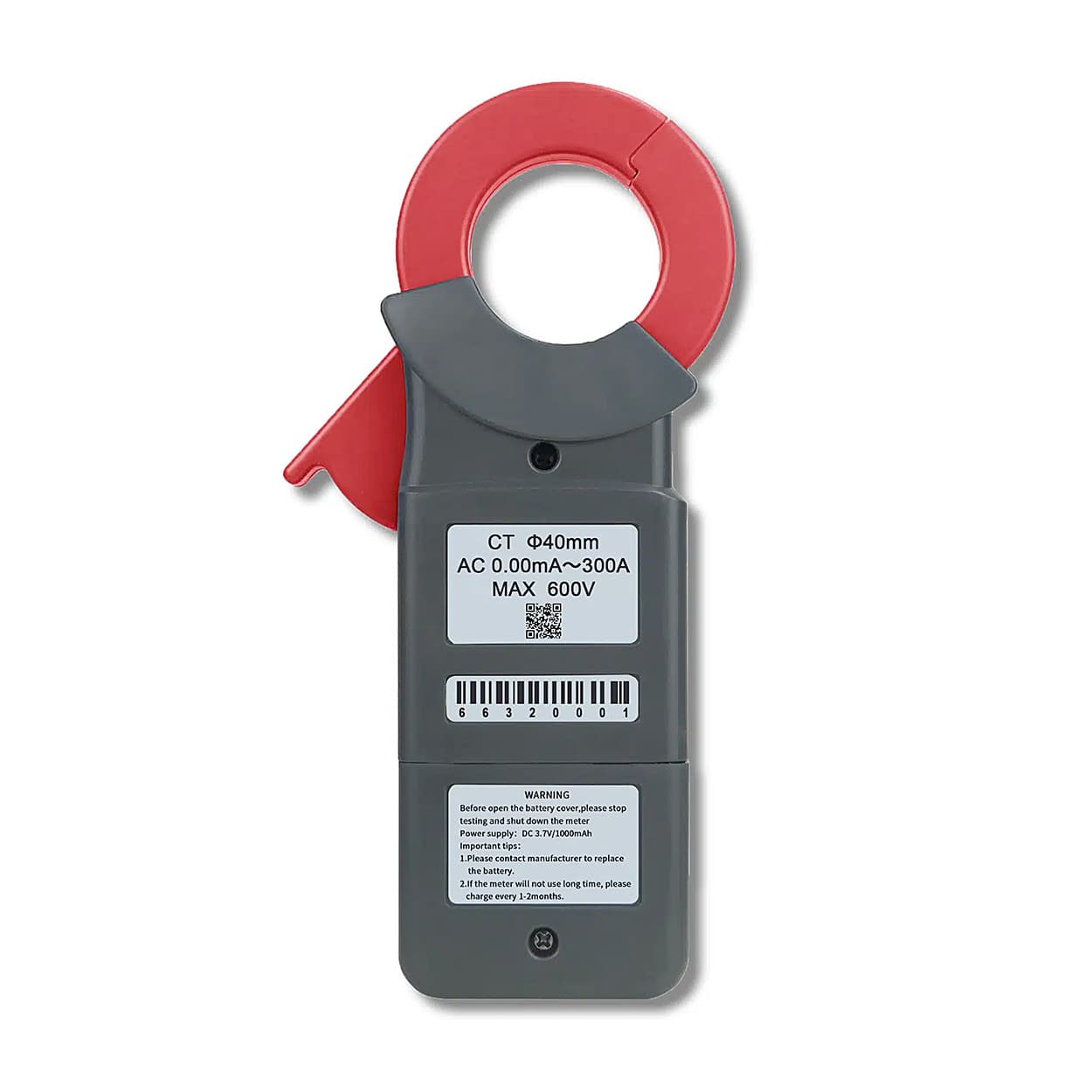

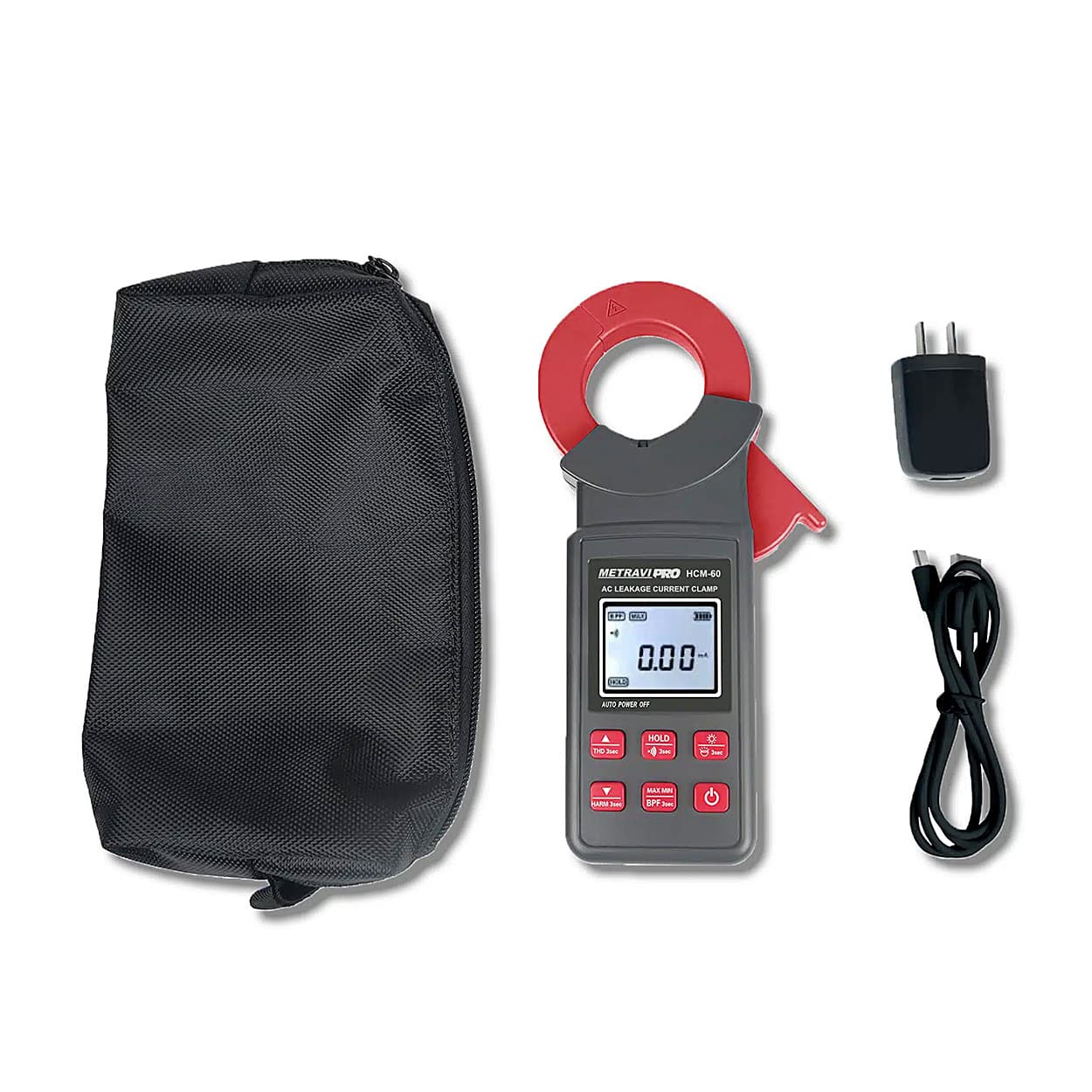

Metravi 0.00mA - 300A Digital Leakage Current Clamp Meter With Harmonics, PRO HCM-60
Roll over the image to zoom in
Key Features
- Product Type: Leakage Testers
- Weight: 0.26 kg
- Jaw Size: 40 mm
- Measurement Range: 0.00mA ~ 300A
- Distortion Rate: Yes (above 10mA)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,656 (Incl. of all taxes)
₹14,963 + ₹2,693 GST (18%)
MRP was MRP ₹22,005
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights
The Metravi PRO HCM-60 Leakage Current Clamp Meter is especially designed and manufactured for measuring AC leakage Current and Current. The meters adopt unique CT and digital integration technology, and is of small size, high precision and has perfect function.
Widely used in electric power, communications, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. The Clamp Jaws are made of permalloy and adopt magnetic shielding technology; so that they are almost not affected by external electromagnetic fields, ensuring high precision, high stability and high reliability for uninterrupted measurements.

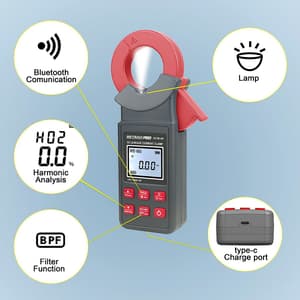

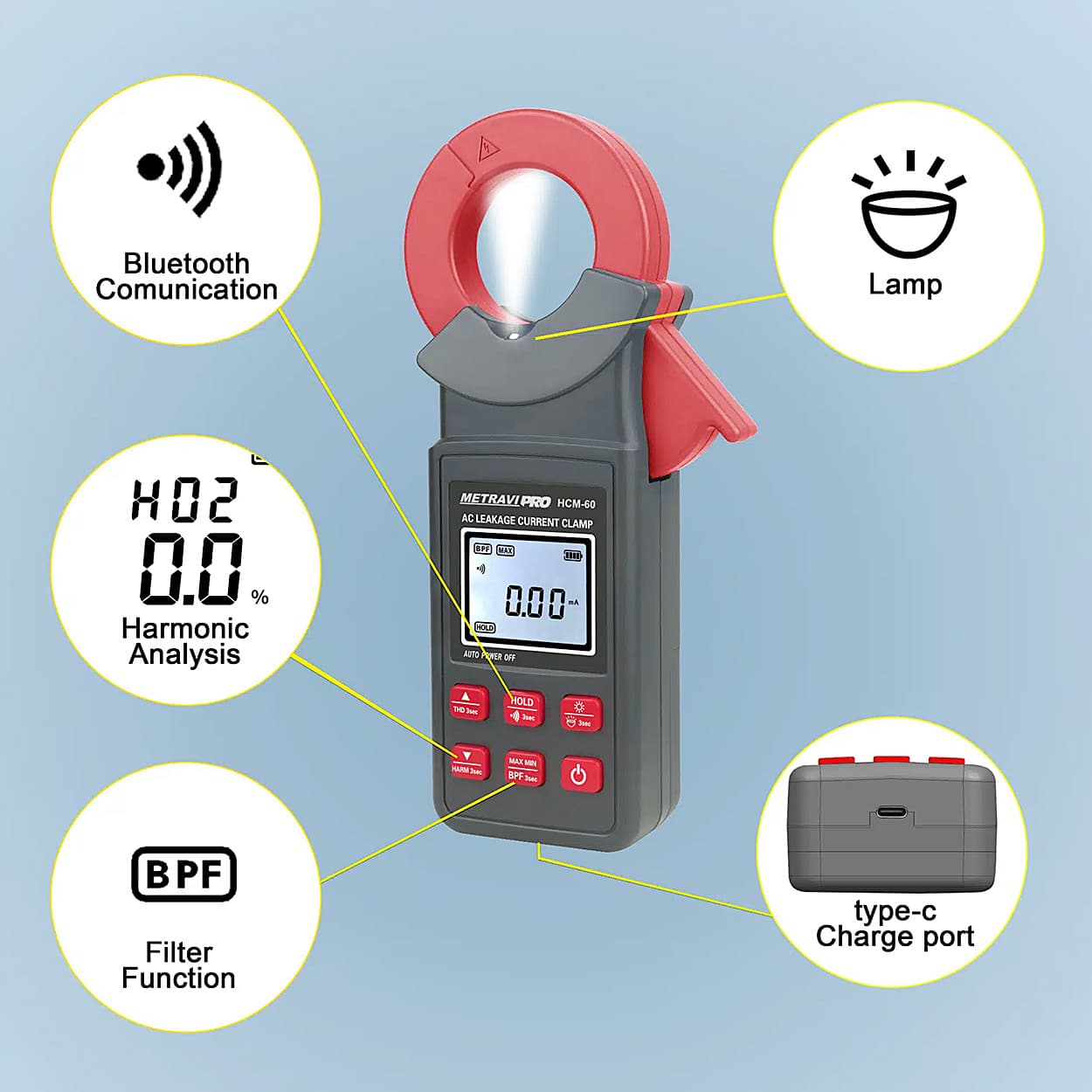

The PRO HCM-60 has test functions such as True Virtual Value measurement, Filtering Function, Maximum / Minimum / Average values, Harmonics, Distortion Rate, etc., which can test Current in the frequency range of 40Hz to 1kHz. It also features Backlight, Flashlight, Data Hold, Bluetooth communication and uses rechargeable, large-capacity, lithium batteries.
Functions:
- Data Hold
- Backlight
- Values: Max, Min, Avg
- Bluetooth Function: Yes, After installing the APP, can test or view the test results on mobile
- Automatic Shutdown: After starting up about 5 minutes without any operation, the meter will automatically shuts down to reduce battery consumption
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Jaw Size | 40 mm |
|---|---|
| CT Size | Ø 40 mm |
| Measurement Range | 0.00mA ~ 300A |
| Measurement Accuracy | ±1.5%rdg ± 5dgt |
| Distortion Rate | Yes (above 10mA) |
| Automatic Shutdown | After 15 mins. of non-operation |
| Sampling Rate | 2 times / second |
| Working Current | 60mA (open flashlight 72mA) |
| Display Mode | 4 digital LCD display |
| Working Environment | -10°C ~ 50°C; below 80%rh |
| Store Environment | -20°C ~ 60°C; below 70%rh |
| Insulation Strength | AC3700V/rms (Between iron core and shell) |
| Data Store | 2000 groups (store via App), |
| Filter Function | Filter off: 40Hz ~ 1kHz, Filter on : 40Hz ~ 70Hz |
| Working Line Voltage | Below AC 600V circuit line to test |
| Power Supply | 3.7V/1000mAh rechargeable lithium battery |
| Battery Charger | USB Type C |
| Harmonic | 21 orders (above 10mA) |
| Meter Size | 192 mm × 96 mm × 40 mm |
| Overflow Display | Exceed measure range overflow function : "OL" symbol display |
| Suitable Safe Standard | IEC1010-1, IEC1010-2-032, Pollution 2, CAT III (600V) |
