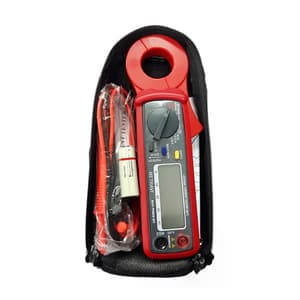

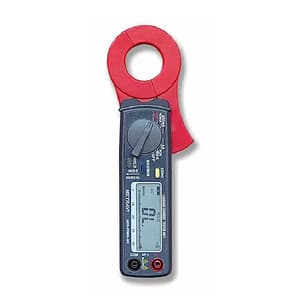

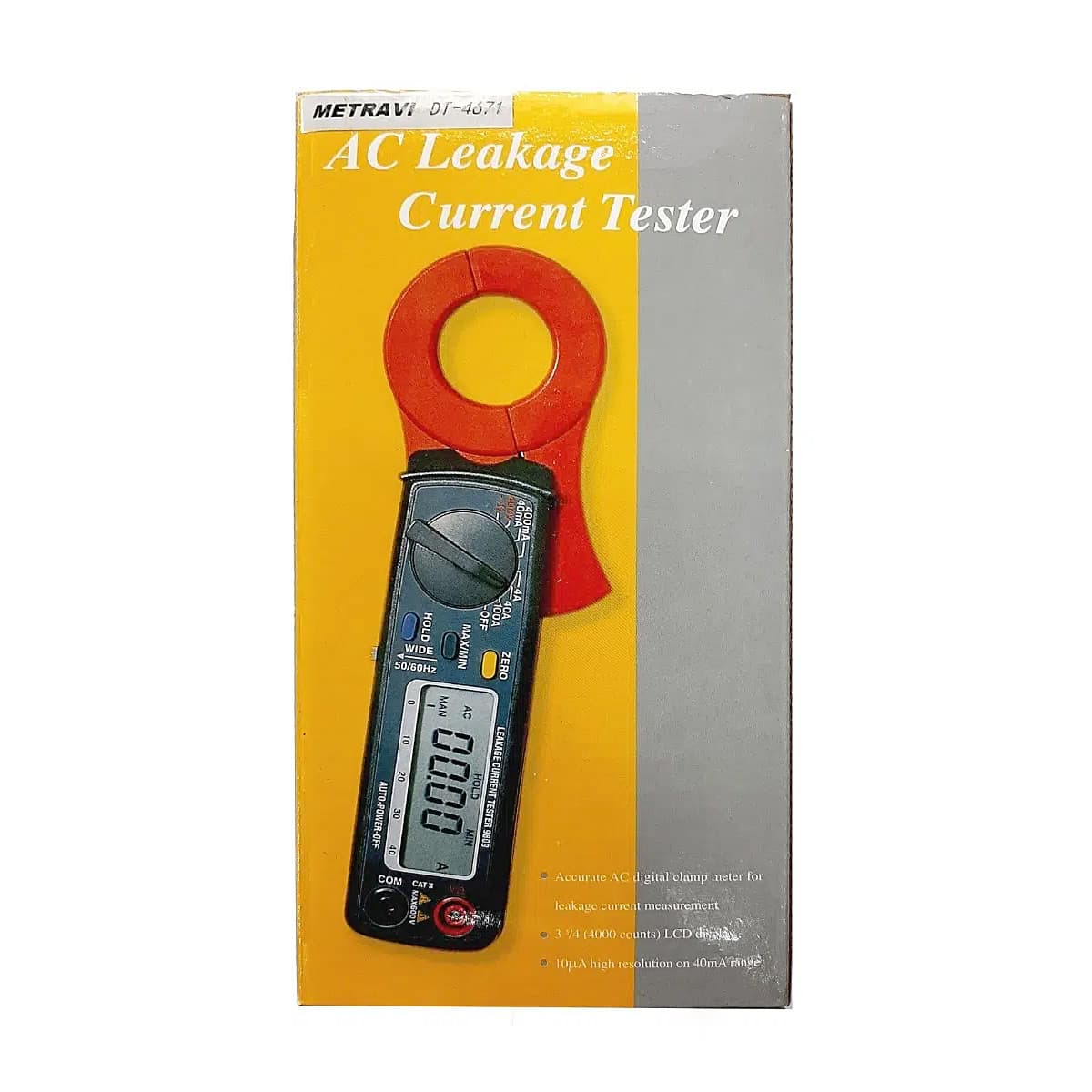

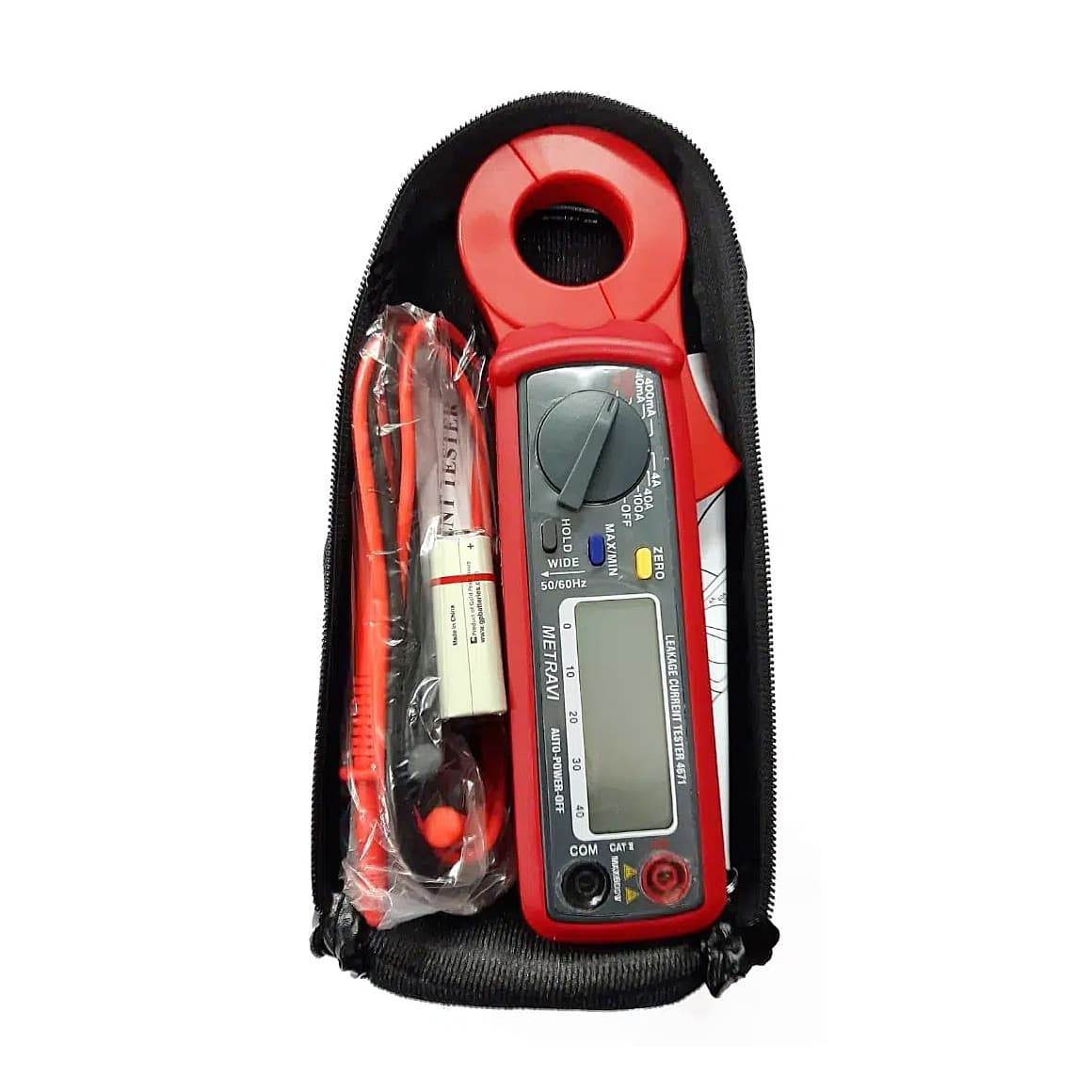

Metravi 3-3/4 Digit / 0 - 400V Digital AC Leakage Current Clamp Meter, DT-4671

AC Leakage Current Clamp Meter 3-3/4 Digits, Analogue Bargraph, LCD, Data Hold, MAX/MIN Record, 30mm Jaw Size, AC Voltage, AC Current, Resistance. Has Low Pass Filter to filter out noise.

Features:

• Auto Power Off
• Max / Min recording with Data Hold
• Clamp Jaw Size : 30mm
• Display : 3-3/4 Digits 3999 Counts LCD with 40 Segment analog Bargraph
• AC Voltage : 0 – 400V
• Accuracy : ±1.5%
• AC Current : 0 – 40m/400m/4A/40A/80A/100A
• Accuracy : ±1.0%
• Resistance : 40 – 400 Ohms
• Accuracy : ±1.0%
• Low Pass Filter for eliminating effect of High Frequency Noise.
• Accurate AC digital clamp meter for leakage current measurement
• 10µA high resolution on 40mA range
• Shied transformer jaws to minimize the effect of external stray magnatic field
• Large jaw with 30 mm diameter
• Five Ranges (40mA, 400mA, 4A, 40A, 100A) for all application
• A filter circuit is designed to eliminate the effect of high frequency noise and harmonics by setting the frequency selector switch at the 50/60 Hz position for AC current measurement
• Fast bargraph display (20 times/sec) for transient observation
• Continuity and frequency measurements
• Max/Min and Data Hold functions
• Relative Measurement
• 600V overload protection for ohms measurement
• Easy single rotary switch for any function selection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
