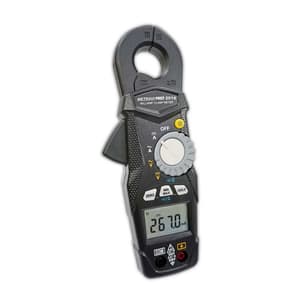

Metravi 5000 Count / 23 mm Digital TRMS AC/DC Auto-Ranging Leakage Current Clamp Meter, Pro 2010

Shop all Metravi

SKU: ME.EL.LE.00018

Model: Pro2010

Roll over the image to zoom in


Key Features

  • Product Type: Leakage Testers
  • Weight: 0.28 kg
  • Jaw Dia: 23 mm
  • DC Current Range: 300mA/ 3000mA/10A
  • AC Current Range: 0mA/3000mA/20A
See all product information

ToolBuy Benefits

₹27,840 (Incl. of all taxes)

₹23,593 + ₹4,247 GST (18%)

MRP was MRP ₹34,695

Save 32%



5 Business Days

1

90303100

Download Product LeafletNot available
Download Metravi CatalogueNot available

Highlights

The PRO 2010 TRMS AC/DC Leakage Current Clamp Meter features high reliability, safety, precision and compact design with 0.1mA resolution in both AC & DC Currents. It is the perfect instrument for diagnostics and maintenance in areas with low current measurement requirements. It measures both AC and DC current with a very stable 0.01 mA resolution. The backlit LCD display and bright LED flashlight make it easier to work in dimly lit locations.

The PRO 2010 is the ideal choice not only in general industrial applications, but also in utility, automotive and marine applications to measure standby or leakage currents in the mA range right up to 20A AC. The narrow jaw, angled for better manoeuvrability makes it easy to select the right wire in confined spaces. Auto power-off will save your battery when you forget to switch off. The PRO 2010 is a well made and truly versatile hi-resolution clamp-meter for a wide range of users. With reliable measurement accuracy and the unique design makes it an outstanding new generation electrician/electric power measurement instrument.


Features:

  • Max/Min
  • Continuity Test for <100Ω
  • True RMS measurement for all applications
  • Backlit display
  • Diode & Continuity Test
  • MAX MIN function
  • Data Hold
  • Zero Function
  • Auto power-off
  • Auto-ranging
  • Numerical Display: Backlit LCD, maximum reading of 5000
  • Low Battery Indication
  • Sampling Rate: 2 times/sec
  • Jaw Opening Diameter: 23mm


What's Included In This Package:

  • Carrying Case
  • Batteries
  • Test Leads
  • User Manual


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Metravi 5000 Count / 23 mm Digital TRMS AC/DC Auto-Ranging Leakage Current Clamp Meter, Pro 2010
DisplayBacklit LCD
ColourBlack
Power SourceBattery Operated
Battery TypeAlkaline
Battery SizeAAA
No of Batteries2
Jaw Dia23 mm
Sampling Time2 times/sec
DC Current Range300mA/ 3000mA/10A
AC Current Range0mA/3000mA/20A
DC Voltage Range0-60V/600V
AC Voltage Range0-60V/600V
Resistance Range0 to 600k Ohms
DC Current Accuracy±1%
AC Current Accuracy±1%
DC Voltage Accuracy±1%
AC Voltage Accuracy±1.0%
Resistance Accuracy±1.0%
DC Current Resolution0.1mA to 0.01A
AC Current Resolution0.1mA to 0.01A
DC Voltage Resolution0.01V to 0.1V
AC Voltage Resolution0.01V to 0.1V
Resistance Resolution0.1 to 100 Ohms
CertificationsCAT-III 600V, CE, IEC 61010
