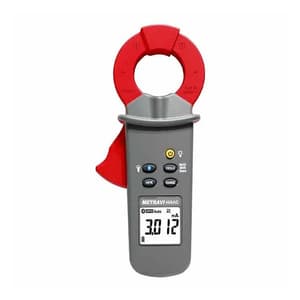

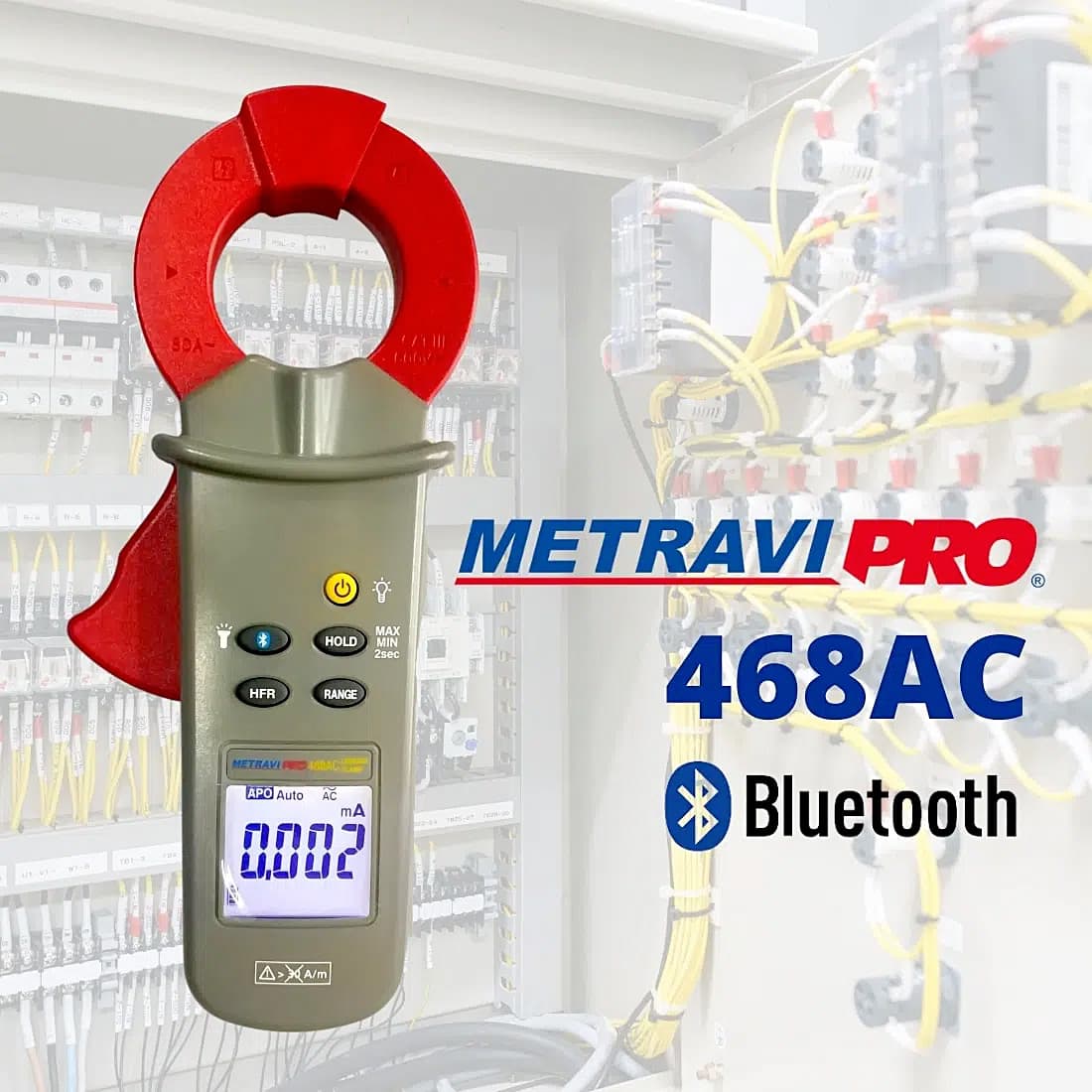

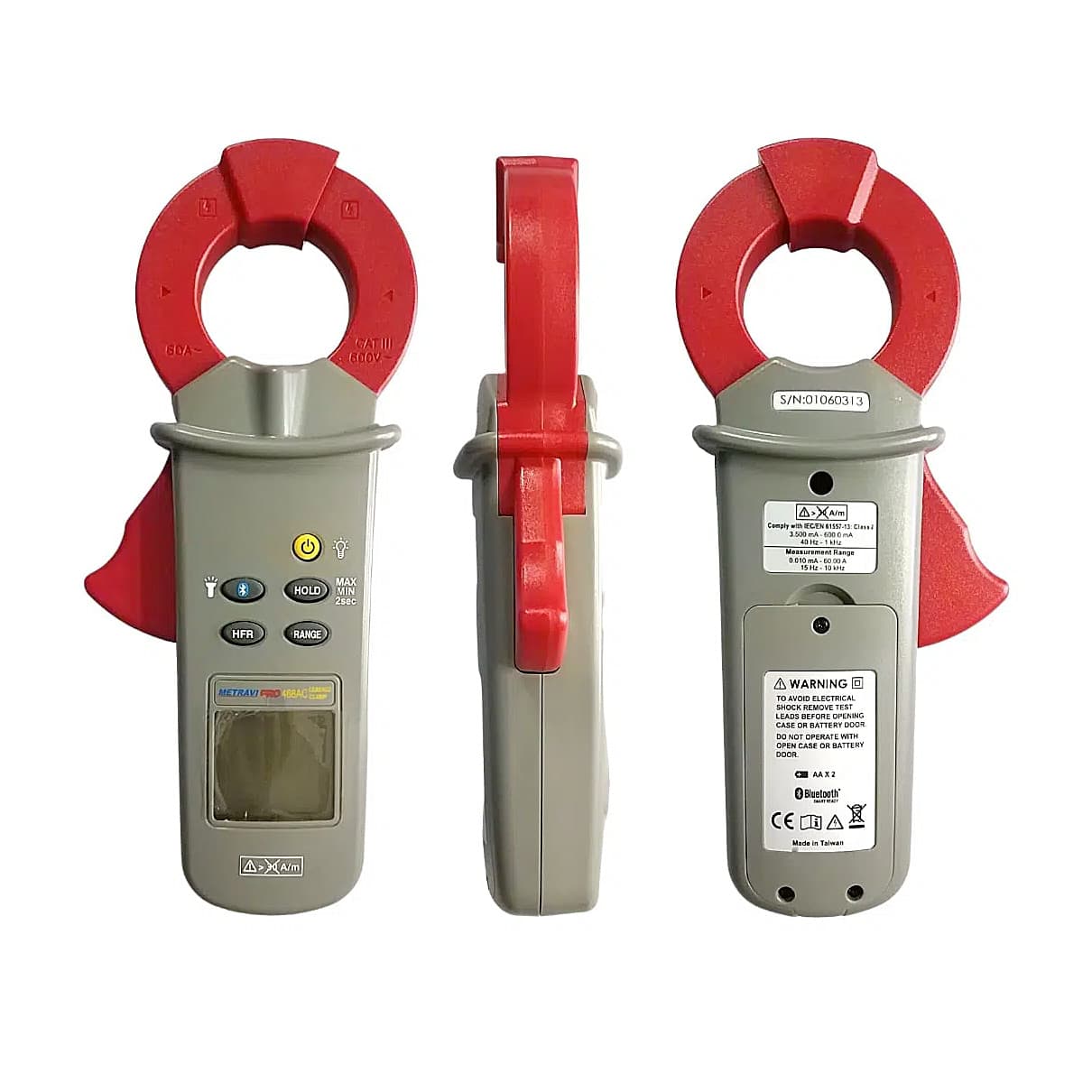

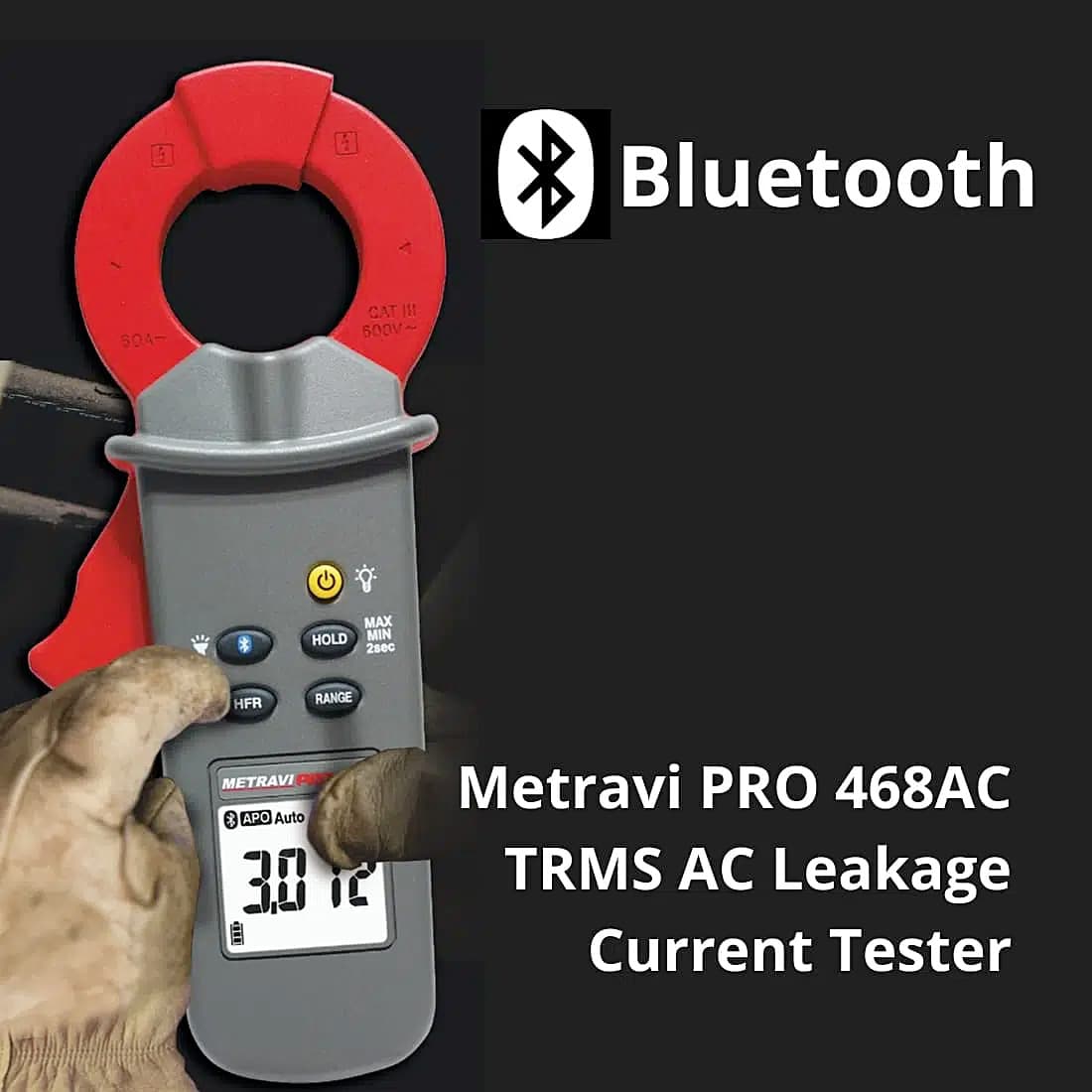

Metravi 6000 Count / 40 mm Digital TRMS AC Leakage Current Clamp Meter, Pro 468AC

TRMS AC Leakage Current Clamp Meter 6000 Counts, Auto-Backlit LCD Display, Auto Power Off, as per IEC 61557-13: Class 2, 40mm Jaw Dia, IEC / EN 61010-1, IEC / EN 61010-2-032, CAT. III 600V, Pollution Degree 2, EN 61326-1 EN 61326-2-2, bandwidth up to 1kHz, 1% accuracy, 0 – 6mA / 60mA / 600mA / 6A / 60A, With resolution of 1uA, Bluetooth connection to connect it to freely available APP for recording data.

Features:

• Max/Min
• Data Hold
• Overload Indication
• 6000 counts digital display
• Large white LED backlight display
• AC True RMS reading
• High frequency rejection (selectable, cut-off frequency: 50Hz~60Hz, 1kHz)
• AC 60 Amps capability
• AC 1µA resolution
• Bluetooth connection with smartphone app
• Smart hold
• Min/Max hold
• Torch light
• Flashlight for working in dark areas
• Auto power off (can be disabled)
• Battery capacity indication in segments
• Up to 40mm dia. conductor size
• 4 feet drop proof

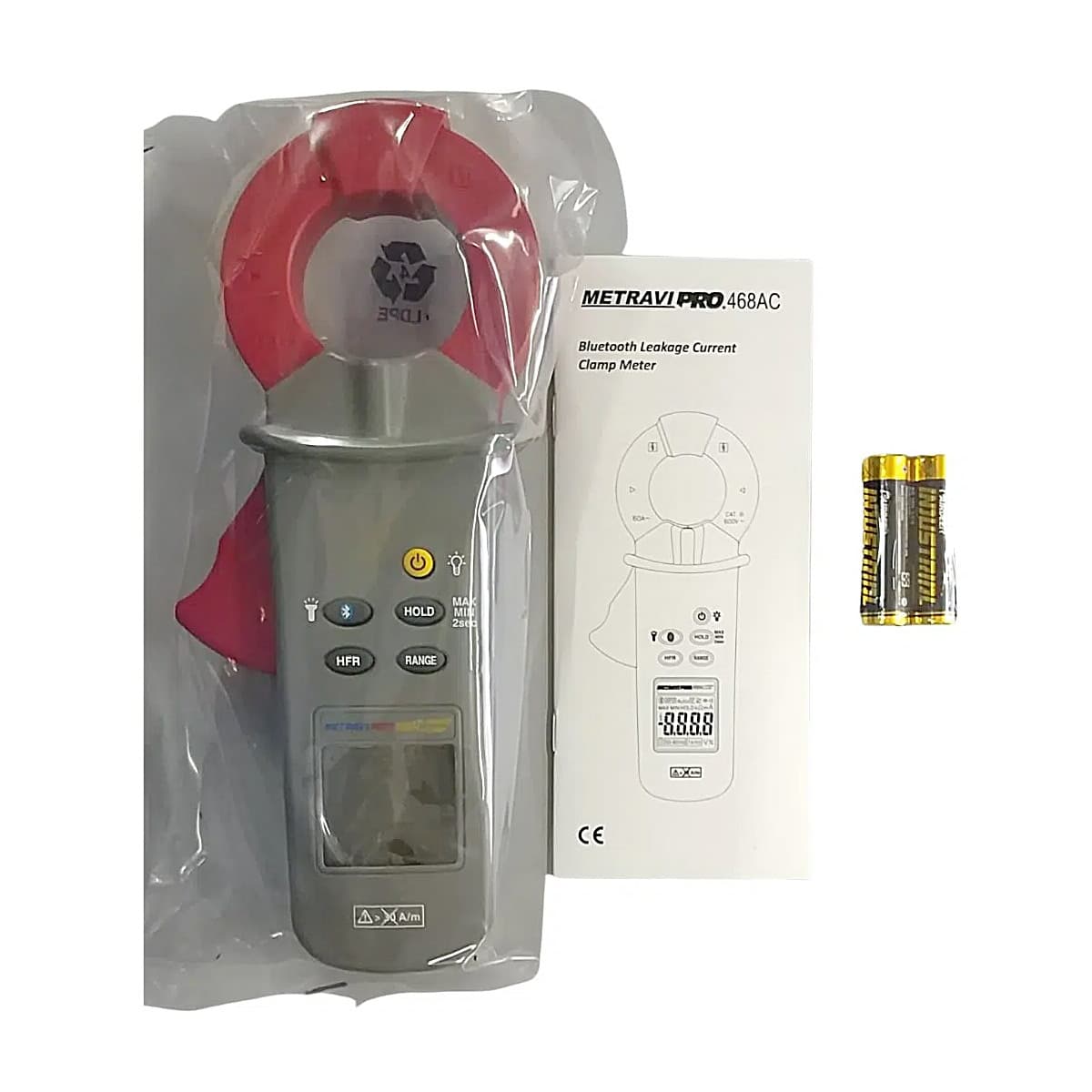

• Deluxe carrying case
• Hand guard & streamlined design
• Convenient battery door
• CAT III 600V safety standard
• Designed to meet: IEC 61557-13: Class 2 ≤ 30A/m

Environmental Conditions:

• Temperature Coefficient: 0.1 x (specified accuracy) / °C (<18°C or >28°C)
• Operating Temperature: -10°C to 30°C (≤ 80% R.H.) / 30°C to 40°C (≤ 75% R.H.) / 40°C to 50°C (≤ 45% R.H.)
• Storage Temperature: -20°C to 60°C (≤ 80% R.H., no batteries)
• Max. Operating Altitude: 2000m (6562ft.)
• Vibration: Random Vibration per MIL-PRF-28800F Class 2 Calibration cycle: One year

Indoor Use:

• Safety Standards: IEC / EN 61010-1 IEC / EN 61010-2-032 CAT. III 600V, Pollution Degree 2
• Electromagnetic Compatibility Standards (EMC): EN 61326-1 EN 61326-2-2
• Application Standards: IEC 61557-13: Class 2, ≤ 30A/m @ In: 3.5 to 600 mA, Fn: 40 to 1k Hz

Electrical Specifications:

Accuracy is given as ±(% of reading + counts of least significant digit) at 23°C ± 5°C (≤ 80% R.H.)

AC Function:

• ACA specifications are ac coupled, True RMS.
• For non-sinusoidal waveforms, Additional Accuracy by Crest Factor (C.F.): Add 1.0% for C.F. 1.0 to 2.0 / Add 2.5% for C.F. 2.0 to 2.5 / Add 4.0% for C.F. 2.5 to 3.0
• Max. Crest Factor of Input Signal: 3.0 @ 3000 counts / 2.0 @ 4500 counts / 1.5 @ 6000 counts
• Frequency Response is specified for sine waveform.
• Minimum Reading is 10uA
• Frequency response is 15 to 50 Hz. When frequency < 30 Hz, add 3.0% to accuracy.
• Frequency response is 60 to 10k Hz. When frequency > 1k Hz, add 0.5% to accuracy.
• Minimum Resolution : 1uA Position Error : ±1% of reading Overload Protection : 60A

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
