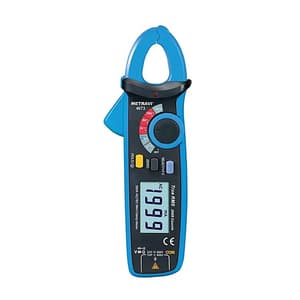

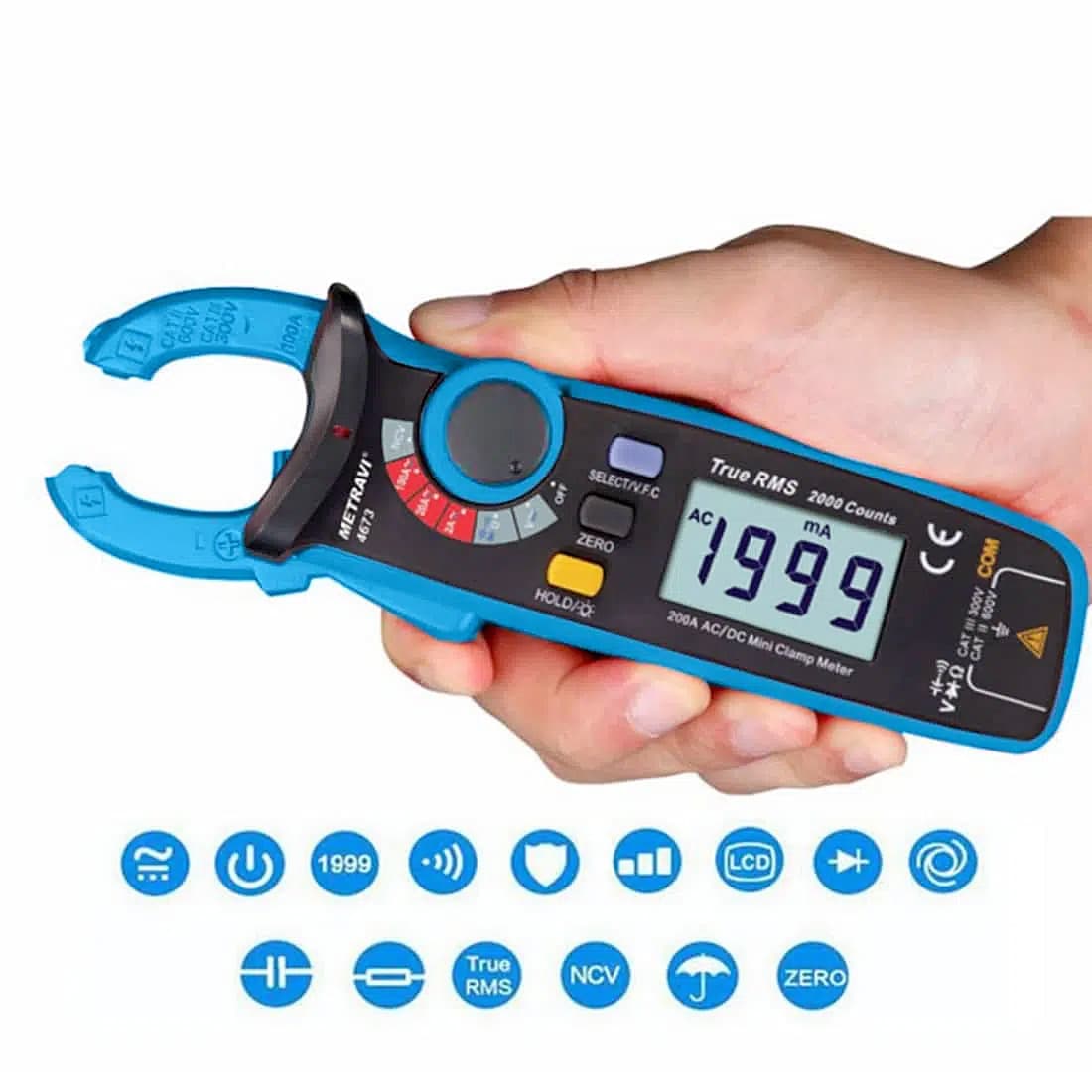

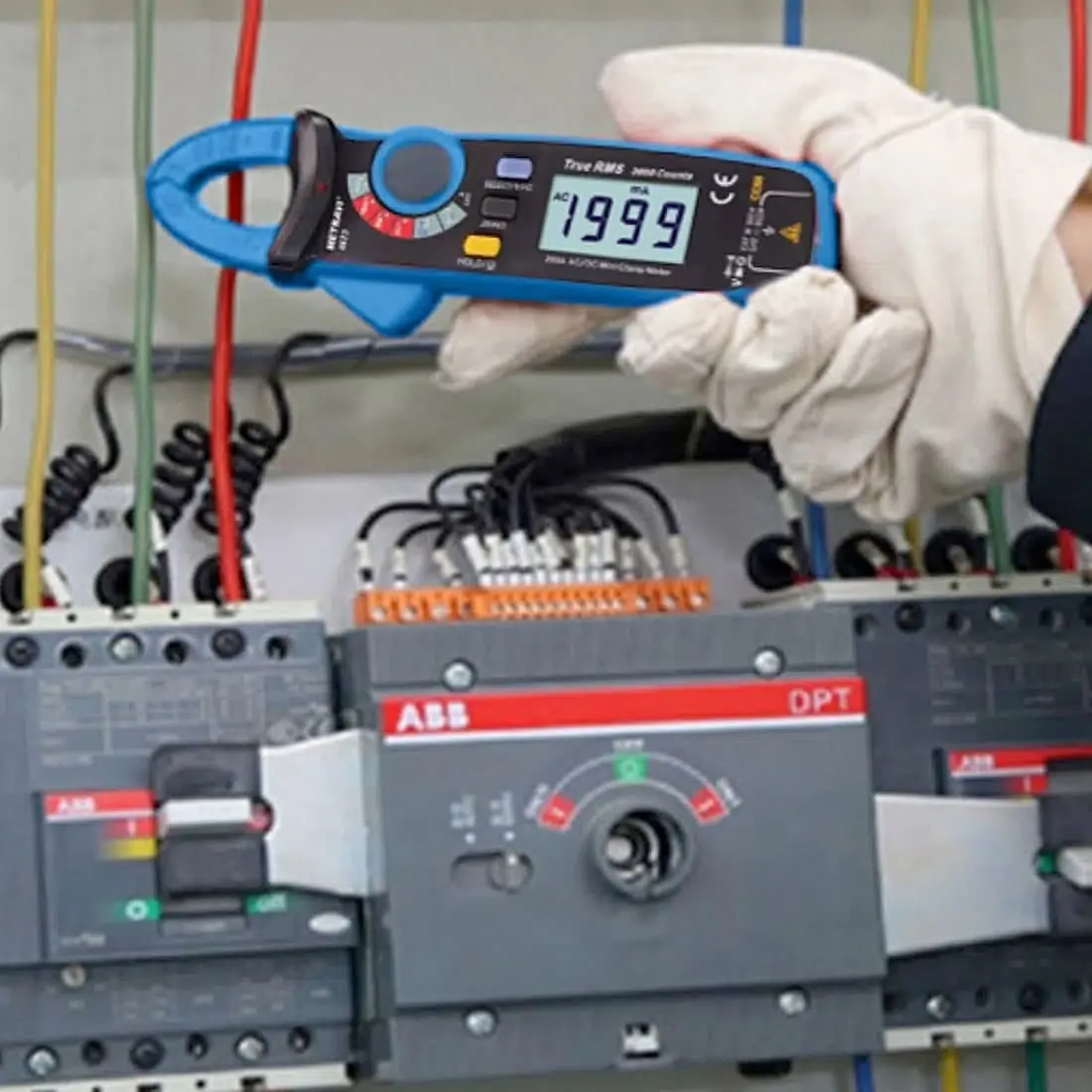

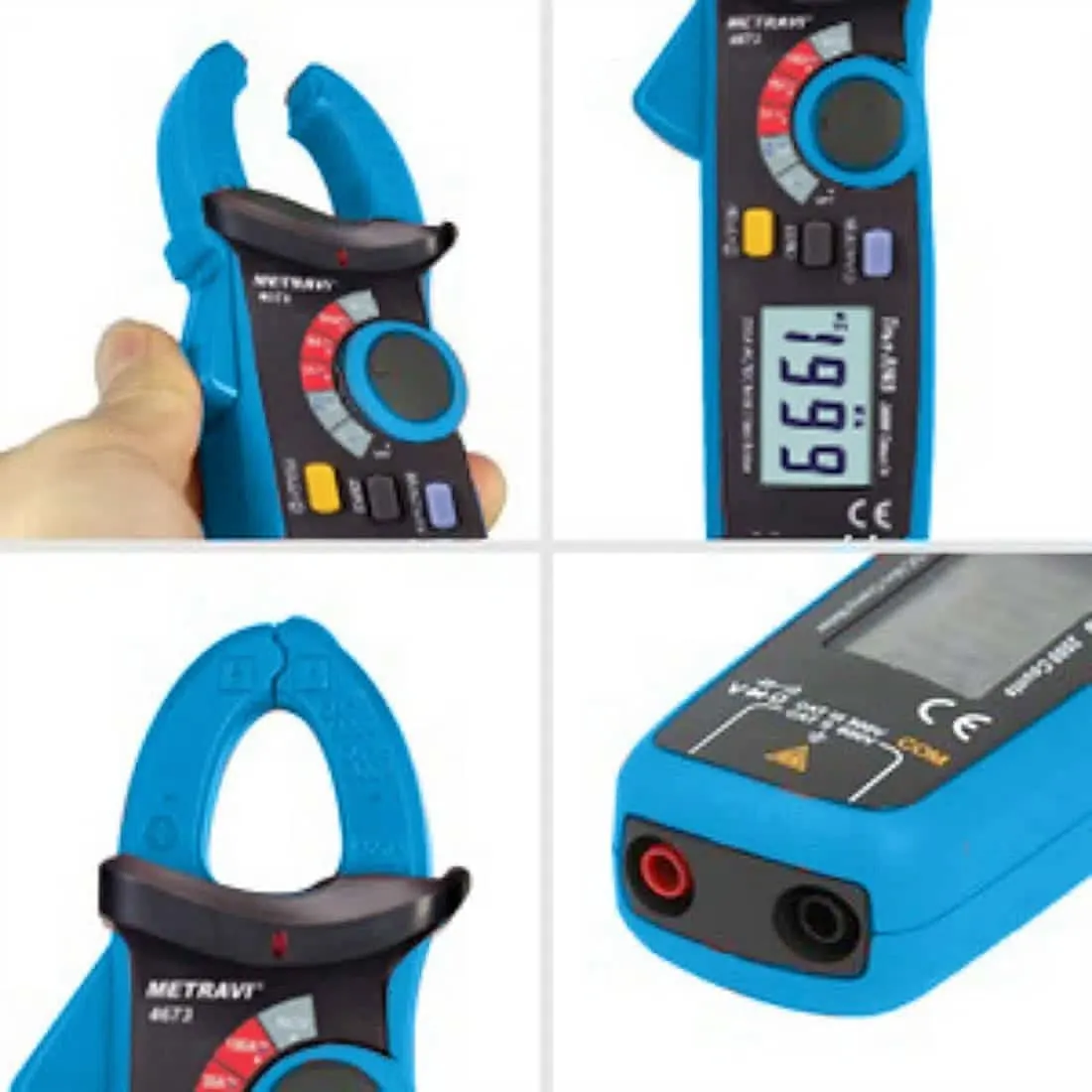

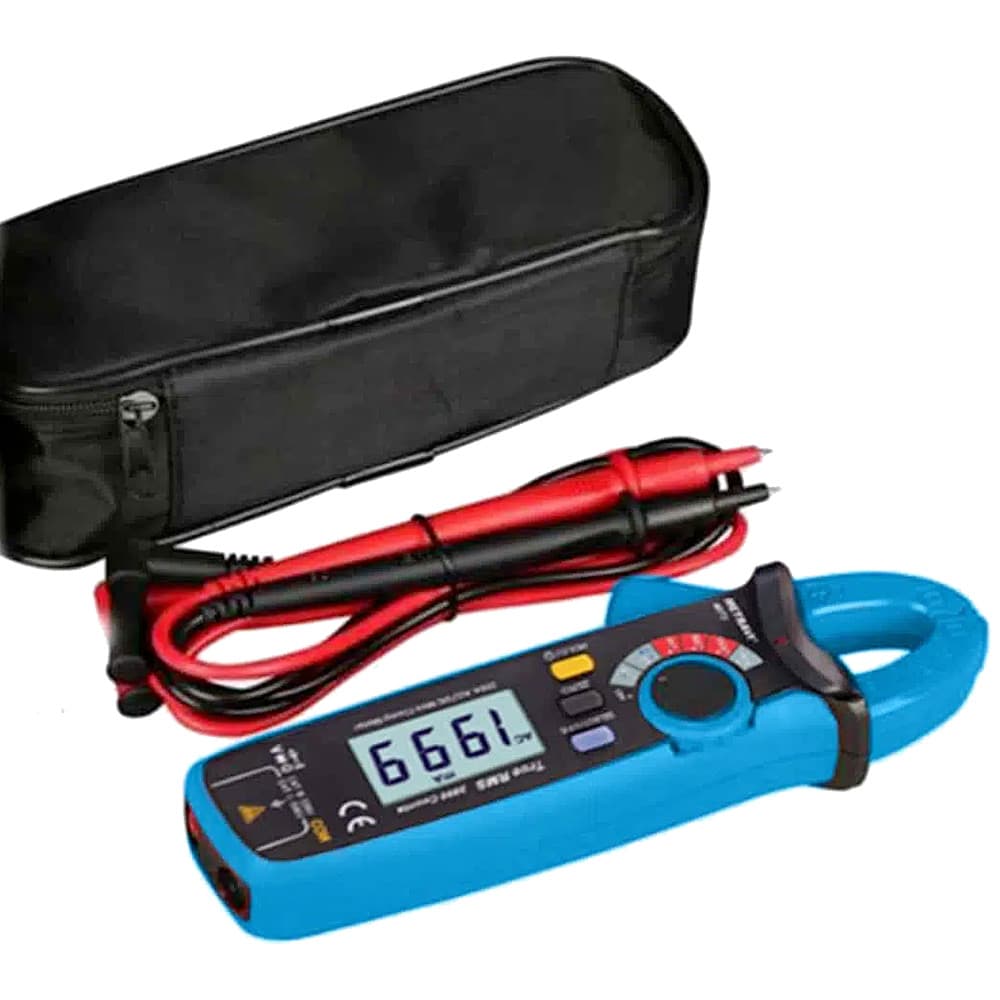

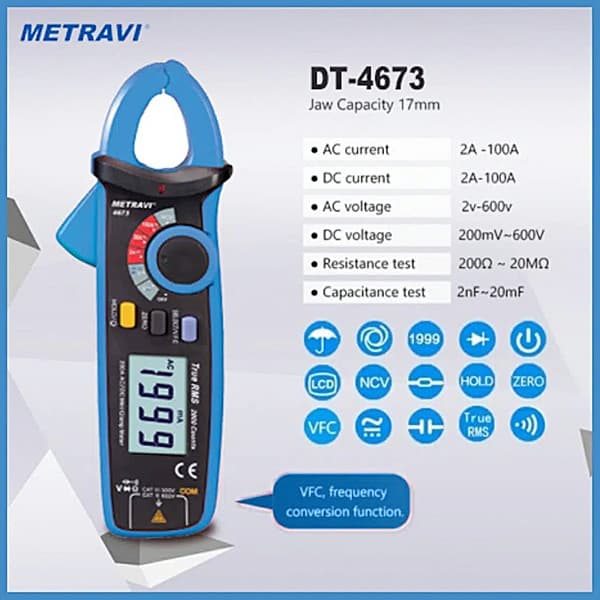

Metravi 3-1/2 Digit / 100A Digital TRMS AC/DC Leakage Current Clamp Meter, DT-4673
Roll over the image to zoom in
Key Features
- Product Type: Leakage Testers
- Weight: 0.17 kg
- AC Voltage Range: 0–2V/20V/200V/600V
- DC Current Range: 0–2A/20A/100A
- Capacitance Range: 0–2nF/20mF
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,824 (Incl. of all taxes)
₹5,783 + ₹1,041 GST (18%)
MRP was MRP ₹8,505
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights
M-4673 mini digital leakage current clamp meter features high reliability, safety, precision and compact design with 1mA resolution. AC/DC Current range of 100A; particular VFC start mode. Entering this mode can accurately measure voltage and current which has VFC frequency conversion.
A voltage or current response display is T-RMS. Whole range overload protection, reliable measurement accuracy and unique design makes it an outstanding new generation electrician/electric power measurement instrument.
Safety:
This Meter complies with EN 61010-1, 61010-2-032, 61010-2-033, Pollution Degree 2, Measurement Category : (CAT II 600V, CAT II 300V) and Double Insulation standards.
Conform to UL STD. 61010-1, 61010-2-032, 61010-2-033 Certified to CSA STD. C22.2 NO. 61010-1 IEC STD 61010-2-032, 61010-2-033
Features:
- T-RMS
- Overload Indication
- Auto Power Off
- Upto 600V voltage measurement in both AC(T-RMS) and DC ranges
- Upto 100A current measurement in both AC(T-RMS) and DC ranges
- Resistance upto 20M.Ohms
- Capacitance upto 20mF
- Small, Handy and Ergonomic
- Jaw Opening 17mm
- Display: 3-1/2 Digits, 1999 Counts Backlit LCD
- Measures as low as 1mA AC/DC Current
- Data Hold to Freeze Displayed Data
- Non Contact Voltage Detector
- Can measure in Variable Frequency Control Drive
- Confirms to CAT-III 300V
- Low Battery and Over Range Indication
- 1.5V X 2 AAA Battery Operated
- Diode and Continuity Test
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | Backlit LCD |
|---|---|
| Colour | Blue-Black |
| Power Source | Battery Operated |
| Battery Size | AAA |
| Battery Type | Alkaline |
| No of Batteries | 2 |
| Polarity | Automatic |
| DC Voltage Range | 0–200mV/2V/20V/200V/600V |
| AC Voltage Range | 0–2V/20V/200V/600V |
| DC Current Range | 0–2A/20A/100A |
| AC Current Range | 0–2A/20A/100A |
| Resistance Range | 0–200/2k/20k/200k/2M/20M Ohms |
| Capacitance Range | 0–2nF/20mF |
| Jaw Dia | 17 mm |
| DC Voltage Accuracy | ±0.7% |
| AC Voltage Accuracy | ±1.0% |
| DC Current Accuracy | ±2.0% |
| AC Current Accuracy | ±2.5% |
| Resistance Accuracy | ±1.0% |
| Capacitance Accuracy | ±4.0% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 1mV to 1V |
| Resistance Resolution | 0.1 to 1k Ohms |
| Capacitance Resolution | 1pF to 10μF |
| DC Current Resolution | 1mA to 100mA |
| AC Current Resolution | 1mA to 100mA |
| Certifications | CAT II 600V, CAT-II 300V, EN 61010-2-032, EN 61010-2-033, EN-61010-1, Pollution Grade 2, UL 61010-2-032, UL-61010-2-033 |
