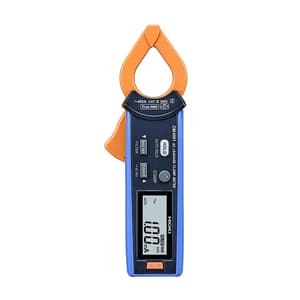

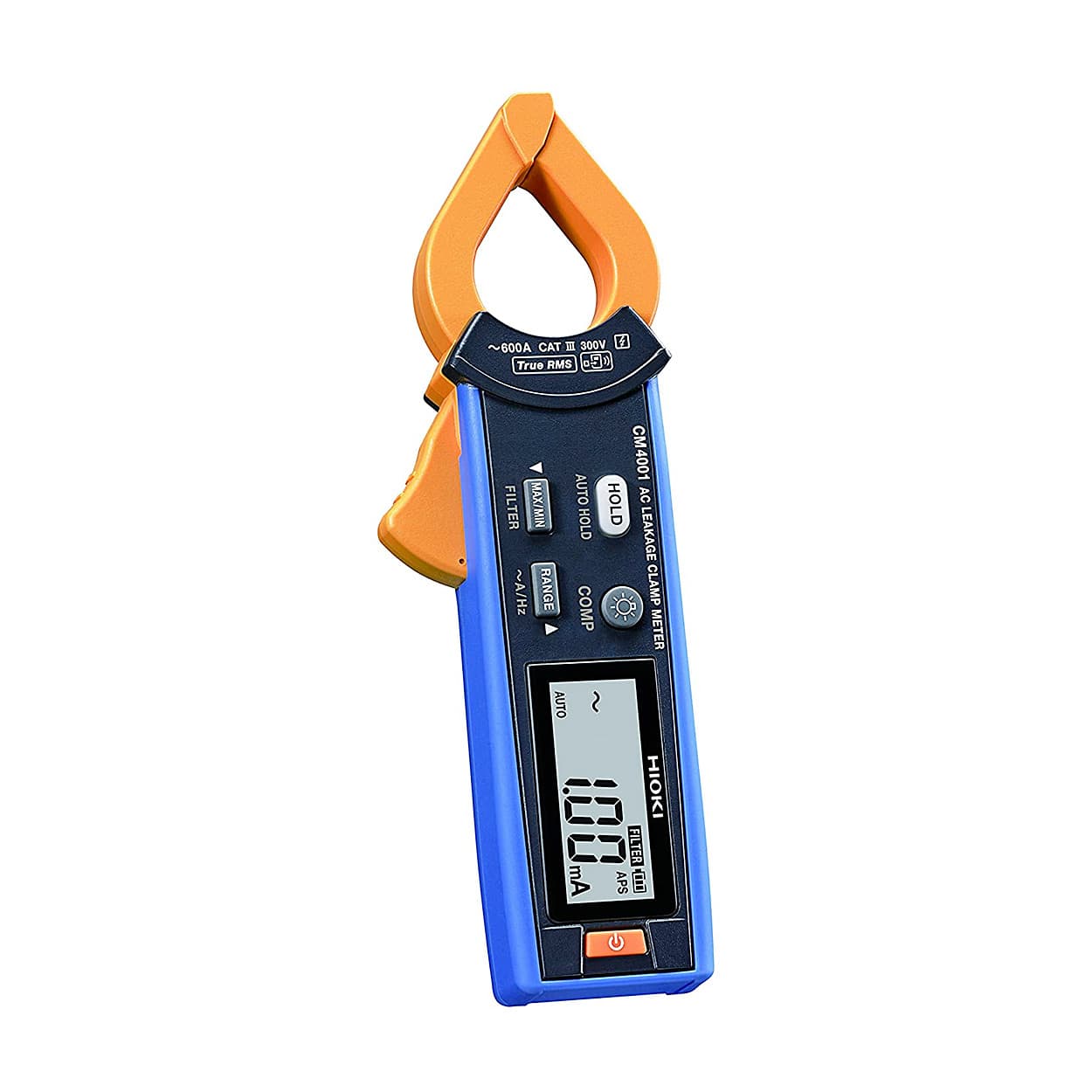

Hioki 0.60 mA - 600.0A AC Leakage Clamp Meter, CM4001

Shop all Hioki

SKU: ME.EL.LE.00009

Model: CM4001

Roll over the image to zoom in

Visit Hioki Store

Key Features

  • Product Type: Leakage Testers
  • Weight: 115 g
  • Frequency range: 40.0 Hz to 999.9 Hz
  • Core jaw diameter: 24 mm (0.94 in)
  • Display: Display refresh rate: 5 times/s
See all product information

ToolBuy Benefits

₹35,978 (Incl. of all taxes)

₹30,490 + ₹5,488 GST (18%)

MRP was MRP ₹35,871

Save 15%

5 Business Days

1

–

Download Product LeafletNot available
Download Hioki CatalogueNot available

Highlights

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables in order to reduce work time and improve safety.

With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.


Key Features:

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Slim jaws let you work with ease
  • Measure everything from leakage to load

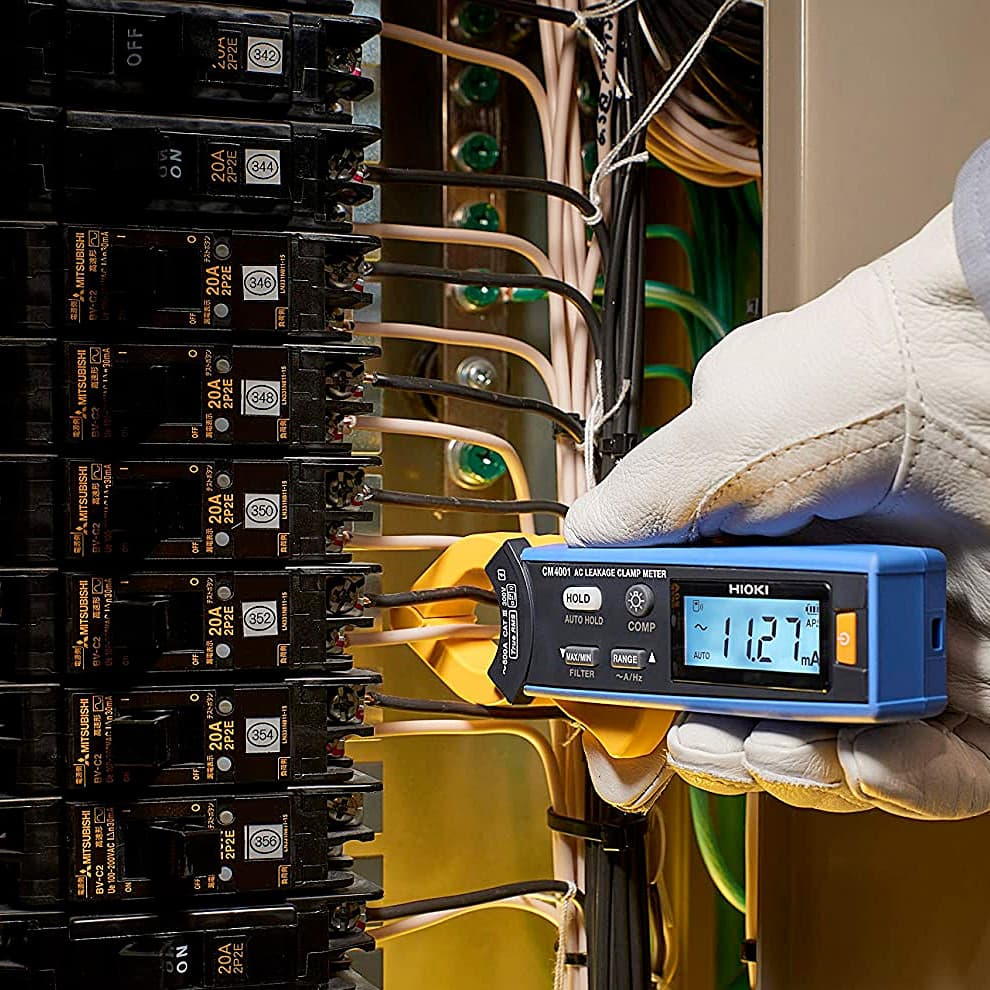

  • Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current
  • Find issues faster with comparator function
  • Double your speed for checking leakage current.
  • Easily clamp within crowded cables to save work time and improve safety.
  • Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready: Wirelessly connect Hioki-compliant instruments with a simple connection. Transmit measured values to your tablet or smartphone.
  • Easily transfer measurement data to an Excel® file: Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)
  • Find issues faster with a comparator function: Quickly Identify leakage current locations with red backlight and audio alerts based on comparison with set threshold value.
AC Current range 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A
Crest factor 4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)



What's Included In This Package:

  • 1x Carrying case
  • 1x Strap
  • 1x Instruction manual
  • 1x Operating Precautions
  • 1x LR03 alkaline battery

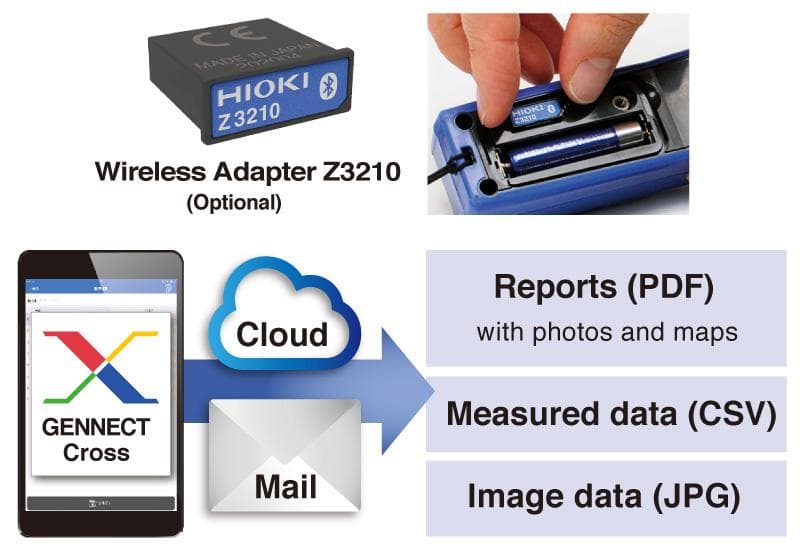

Wireless support. Wireless communication capability for even greater convenience.

Compatible with Wireless Adapter Z3210 (optional). It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

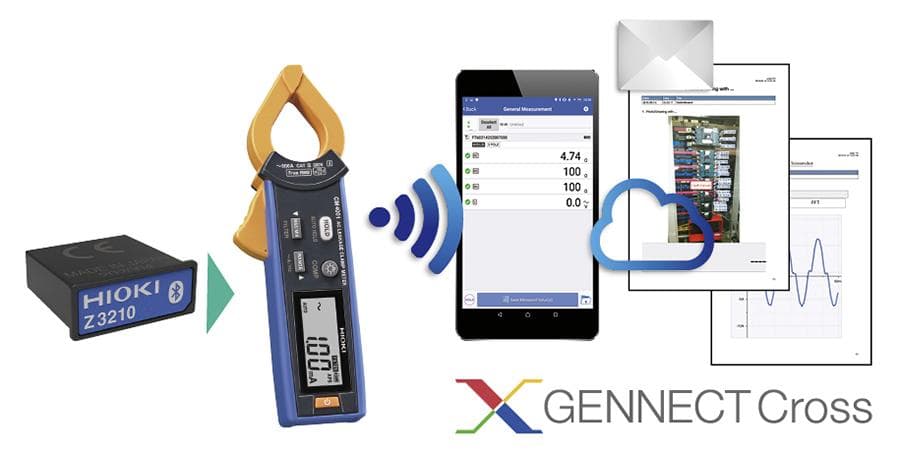

Instantly create reports by a free app (GENNECT Cross)

  • GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.
  • The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.(Optional Wireless Adapter Z3210 is necessary.)

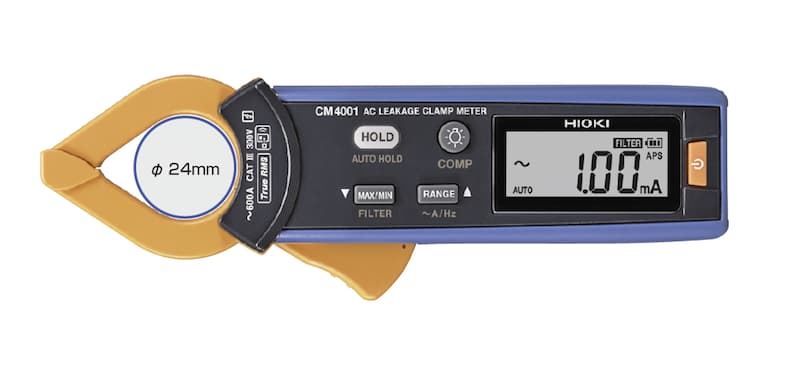

Core jaw diameter φ24 mm

Despite its compact body, the core jaw diameter is φ24 mm.

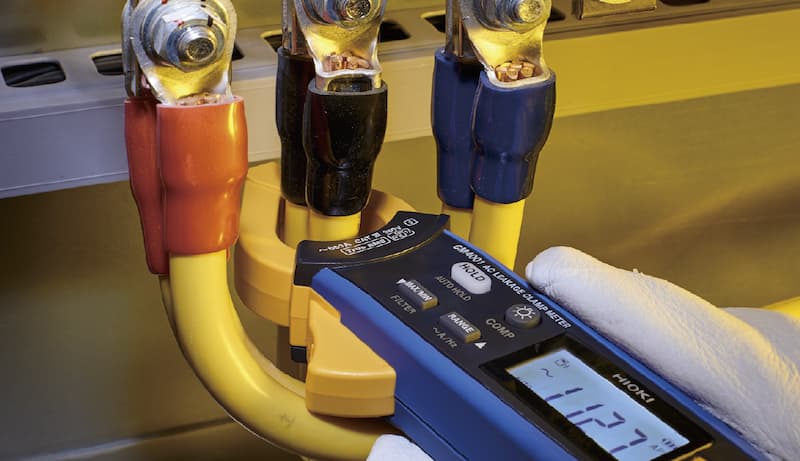

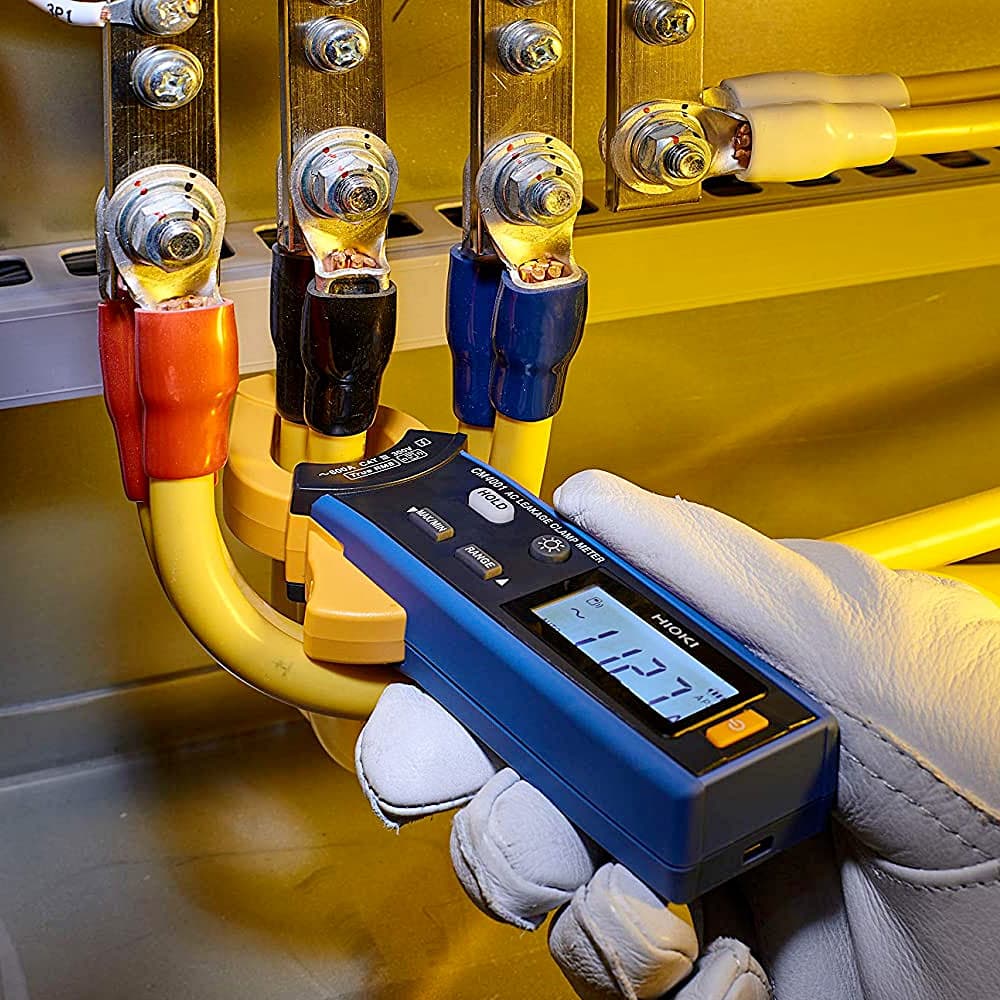

Perform everyday maintenance work more safely and easily

Clamp thick wires and double wires with narrow spacing smoothly. Various useful functions support for troubleshooting and diagnostics.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Hioki 0.60 mA - 600.0A AC Leakage Clamp Meter, CM4001
Frequency range40.0 Hz to 999.9 Hz
Core jaw diameter24 mm (0.94 in)
DisplayDisplay refresh rate: 5 times/s
Filter functionCut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Other functionsComparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
Power supplyLR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)
Dimensions and mass37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
