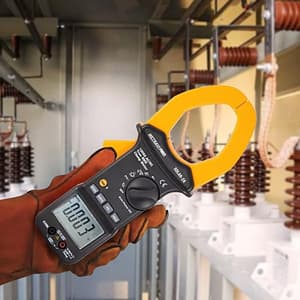

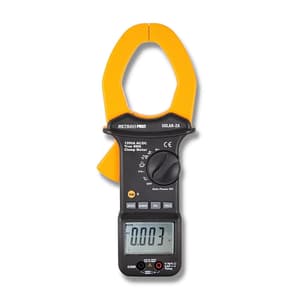

Metravi 1500V DC / 1000V AC Digital TRMS AC/DC Clamp Meter, Pro Solar-2A

The Metravi PRO Solar-2A is a professional T-RMS Industrial Clamp Meter that measures up to 1500V DC and 1000V AC, making it ideal for high voltage applications, including Solar, Photovoltaic, EV, Power, Motor, etc. applications. This robust device also features measurement capability for TRMS, AC/DC Current upto 1200A, Peak Current, Resistance, Frequency (auto-ranging), Capacitance, Duty Cycle, Diode and Continuity Testing and Temperature.

A 3-3/4 digits (4000 counts) backlit LCD makes readings easy and along with over-range protection and CAT III 1000V and CAT IV 600V certifications, the Pro Solar-2A is value for money when you’re looking for a reliable, accurate and solid clamp for your high-voltage DC applications. Safety: For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Over voltage Category III 1000V and Category IV 600V, Pollution Degree

It Can Measure:

• AC/PV DC Voltage
• AC/DC Current
• Resistance
• Capacitance
• Frequency
• Continuity
• Diode
• Temperature
• Hz%

Functions:

• Over-range Protection
• Auto-ranging
• Auto Power Off
• Data Hold
• Peak Hold
• Low Battery Indication
• Overload Indication
• Diode & Continuity test

Features:

• Display: 3-3/4 digits (4000 counts) backlit LCD
• Jaw Opening: 2” (52mm) approx.
• PV DC Voltage: 400mV / 4V / 40V / 400V / 1500V
• Accuracy: ± (1% + 3d)
• AC Voltage T-RMS: 4V / 40V / 400V / 1000V
• Accuracy: ± (1.2% + 5d)
• AC Current : 400A / 1200A
• Accuracy: ± (3.0% + 3A)
• DC Current: 400A / 1200A
• Accuracy: ± (3.0% + 3A)
• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Accuracy: ± (1.0% + 4d)
• Frequency: 10Hz to 100kHz / 40Hz to 1kHz
• Accuracy: ± 1.0% ±5 digits
• Capacitance: 40nF / 400nF / 4µF / 40µF / 400µF
• Accuracy: ± (3.5% + 10d)
