Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter, UNIKS C-126
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Current Frequency: 100Hz/1000 Hz/ 10Kz
- Duty Cycle Range: 1% to 99%
- Voltage Frequency: 100Hz/1000Hz /10kHz
- Diode Range: 2.000V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,883 (Incl. of all taxes)
₹7,528 + ₹1,355 GST (18%)
MRP was MRP ₹11,070
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights

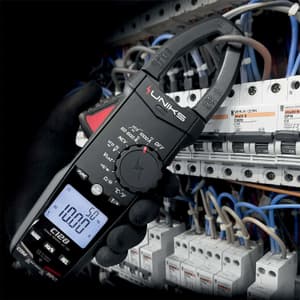

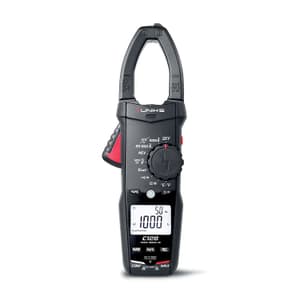

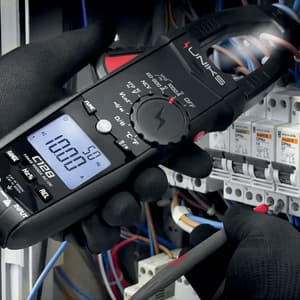

The Metravi Uniks C-126 Digital TRMS AC Clamp Meter is designed for use in both industrial and civil sectors It carries out TRMS measurements of voltage up to 1000V AC/DC* and current from 0.1A up to 1000A AC. The modern design, the fluid mechanics and the 2″ DUAL DISPLAY function facilitates work in the field, making it the most complete instrument in the range. It is equipped with a built-in voltage detector that turns on if placed near live conductors and an integrated torch that allows you to work even in very dark places.
Features:
- TRMS AC Current: 0-60A/600/1000A (Accuracy: ±2.5% reading +8 digits)
- TRMS AC Voltage: 0-6V/60/600/1000V (Accuracy: ±0.8% reading +5 digits)
- DC Voltage: 0-6V/60/600/1000V (Accuracy: ±0.5% reading +5 digits)
- Resistance: 600Ω/6kΩ/60/600/6MΩ/60MΩ (Accuracy: ±1.0% reading +3 digits)
- Capacitance: 60.00nF/6.000/600.0uF/60.00/600.0/6.000mF/60.00mF (Accuracy: ±4.0% reading +3 digits)
- K-type Temperature: -20° to 1000°C / -4° to 1832°F (Accuracy: ±2.0% reading +2 digits)
- Frequency: 100Hz/1000/10kHz
- Non-contact Voltage detection
- InRush Current
- Voltage measurement with low impedance VLoz
- Voltage and Current VFD Filter
- Duty Cycle
- Diode Test
- Polarity Test
- Auto and Manual Range
- Bandwidth for TRMS measurements of 1KHz
- Relative measurements
- Display: 2 inch Backlit LCD, 6000 Counts, Dual Display with analog bargraph
- REL function
- Data Hold
- Sampling Time: 3 times/second
- Power supply: 1.5V AAA battery ×3
- Low battery indication
- Auto Power-off

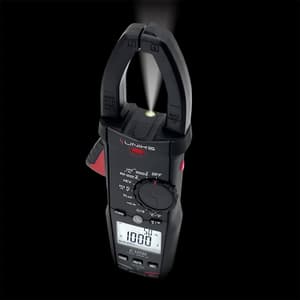

- Built-in LED Flashlight
- Over Range indication
- Overload Protection
- Input protection from over-voltage 1000V AC/DC RMS
- Certifications: CATIV 600V, CATIII 1000V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Current Frequency | 100Hz/1000 Hz/ 10Kz |
|---|---|
| Current Frequency Resolution | 0.01Hz/ 0.1Hz / 0.001kHz |
| Current Frequency Accuracy | ±1% |
| Duty Cycle Range | 1% to 99% |
| Duty Cycle Resolution | 0.1% |
| Duty Cycle Accuracy | ±3% |
| Voltage Frequency | 100Hz/1000Hz /10kHz |
| Voltage Frequency Resolution | 0.01Hz/ 0.1Hz / 0.001kHz |
| Voltage Frequency Accuracy | ±1% |
| Diode Range | 2.000V |
| Diode Resolution | 0.001V |
| Resistance Resolution (Ohms) | 0.1/0.001k/0.01k/0.1k/0.001M/0.01Mn Ohms |
| Capacitance Resolution | 0.01nF/0.1nF/1nF /10nF /100nF/1uF /10uF |
| Temperature Range | -20~1000°C, (-4~1832°F) |
| Temperature Resolution | 1°C/2°F |
| Temperature Accuracy | ±2% |
| Safety Certifications | CE, EN-61010-1, EN-61010-2-030, EN-61010-2-032 |
| Encloser | Double Insulation |
| Pollution Level | Level II |
