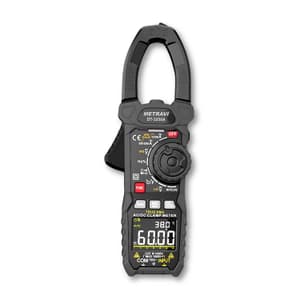

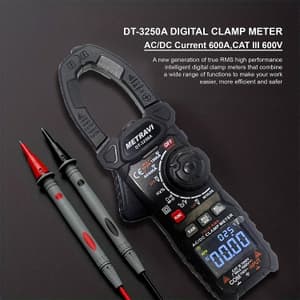

Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display: 6000 Counts, Backlit
- DC Current: 0-60A/600A/1000A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,958 (Incl. of all taxes)
₹5,049 + ₹909 GST (18%)
MRP was MRP ₹7,425
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights
The Metravi DT-3250A is a dual impedance, TRMS, Digital Clamp Meter, integrating a variety of measurements like AC/DC Voltage, AC/DC Current, Frequency, Duty Ratio, Resistance, Capacitance, Temperature, Diode, Continuity, NCV, VFD, Inrush Current, and more. It features functions like last Data Hold, LED Flashlight, Max./Min./Relative value, Celsius/Fahrenheit degrees, and Zero key. The Metravi DT-3250A Digital TRMS AC/DC Clamp Meter is a precise and well-built, True RMS Clamp Meter with solid build quality and loaded features. It has an excellent in-hand feel, and is very easy to use. It is an ideal clamp meter for home usage, home energy auditing, solar energy applications, battery estimation, etc.
Features:
- Diode & Continuity Test
- Auto power off
- Flashlight
- MAX / MIN record function
- Data Hold

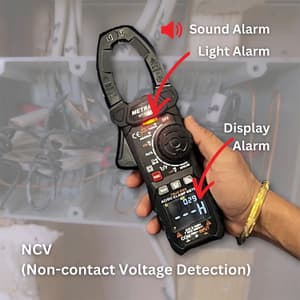

- Non Contact Voltage Detector (NCV)
- Live Wire detection
- Inrush Current measurement
- LoZ measurement facility
- Measurement of Frequency Through Clamp
- Dual Display: Voltage / Frequency, Current / Frequency on same screen
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | 6000 Counts, Backlit |
|---|---|
| DC Current | 0-60A/600A/1000A |
| DC Current Accuracy | ±(2.5%reading+8) |
| AC Current TRMS | 0-60A/600A/1000A |
| AC Current Accuracy | ±(2.5%reading+8) |
| DC Voltage | 0-600mV/6V/60V/600V/1000V |
| DC Voltage Accuracy | ±(0.5%reading+5) |
| AC Voltage | 0-600mV/6V/60V/600V/750V |
| AC Voltage Accuracy | ±(0.8%reading+5) |
| VFD Voltage | 750V |
| VFD Voltage Accuracy | ±(2.0%reading+5) |
| Resistance | 600/6k/60k/600k/6M/60M Ohms |
| Resistance Accuracy | ±(1.0%reading+5) |
| Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF/10mF/100mF |
| Capacitance Accuracy | ±(4.0%reading+5) |
| Frequency | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz |
| Frequency Accuracy | ±(1.0%reading+3) |
| K-type Temperature | Upto 1000°C (Accuracy: ± 1.0% or ± 2°C) |
| Clamp Opening Size | 40 mm |
