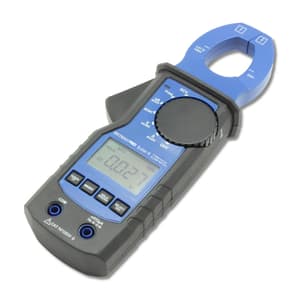

Metravi 3-3/4 digits 4000 Count Digital TRMS AC/DC Clamp Meter, Pro Solar-4
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display: 4000 Counts, 3 3/4 Digits Backlit LCD
- DC Current: 0-40A/400A
- TRMS AC Current: 0-40A/400A
- DC Voltage: 0-400mV/4V/40/400/1500V
- TRMS AC Voltage: 0-400mV/4V/40/400/1000V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,963 (Incl. of all taxes)
₹6,748 + ₹1,215 GST (18%)
MRP was MRP ₹9,923
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights
The Metravi Pro Solar-4 TRMS AC/DC Clamp Meter features compact dimensions and the highest safety category CAT IV 1000V. It helps you perform accurately for the most reliable work, every single day. With a 35mm jaw-opening, a strong flashlight and a backlit 4-digit display, this Made in Germany device is a robust and reliable featuring varied measurement and testing functions. The Metravi Pro Solar-4 TRMS AC/DC Clamp Meter can measure up to 1500V DC and 1000V AC, which makes it ideal for use in industries where high-voltage DC systems are prevalent.
This tool is essential for safely measuring high-voltage current and voltage without direct contact, making it ideal for the following industries:
- Renewables Industry : Solar/Photovoltaic (PV)
- Electric Vehicles (EV) Industry
- Battery Storage Systems
- Telecommunications and Data Centres
- Railways & Transportation Industry
Features:
- Automatic Polarity display
- Continuity Test
- Diode Test
- Non-contact voltage detection (NCV)
- Low Battery indication

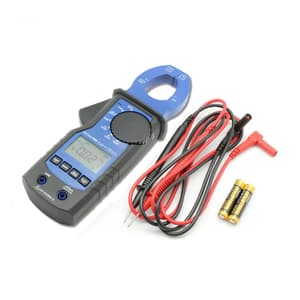

Package Content:
- Clamp Meter
- Test Leads
- Batteries
- User Manual
- Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | 4000 Counts, 3 3/4 Digits Backlit LCD |
|---|---|
| DC Current | 0-40A/400A |
| DC Current Accuracy | ±(2% of meas. val. + 5 digits) |
| TRMS AC Current | 0-40A/400A |
| TRMS AC Current Accuracy | ±(2% of meas. val. + 5 digits) |
| DC Voltage | 0-400mV/4V/40/400/1500V |
| DC Voltage Accuracy | ±(1% of meas. val. + 3 digits) |
| TRMS AC Voltage | 0-400mV/4V/40/400/1000V |
| TRMS AC Voltage Accuracy | ±(1% of meas. val. + 3 digits) |
| Resistance | 0-400/4k/40/400/4M/40M Ohms |
| Resistance Accuracy | ±(1.5% of meas. val. + 3 dgts) |
| Capacitance | 0-51.2nF/512.0/5.120uF/51.2/100μF |
| Capacitance Accuracy | ±(1.5% of measurement val. + 5 digits) |
| Frequency | 0-5.000Hz/50.00/500.0/5.000kHz/50.00/500.0/5.000MHz |
| Frequency Accuracy | ± 0.1% + 1D |
| Safety | CAT IV 1000V |
| Power Supply | 2 x 1.5V AAA Alkaline Batteries |
