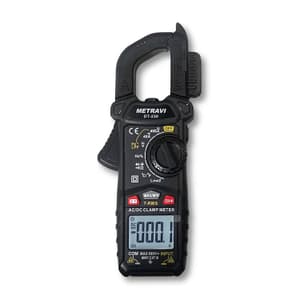

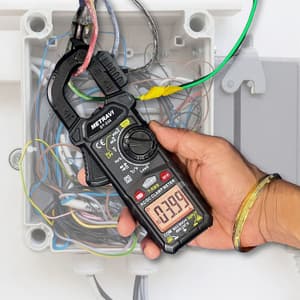

Metravi 3999 Counts Digital TRMS AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display: 3999 Counts, Backlit LCD
- AC Voltage (T-RMS): 0 – 4/40/400/600V (Accuracy: ±1.0%)
- AC Current (T-RMS): 0 – 40/400A (Accuracy: ±2.5%)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,141 (Incl. of all taxes)
₹2,662 + ₹479 GST (18%)
MRP was MRP ₹3,915
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights
The Metravi DT-230 Digital TRMS AC/DC Clamp Meter is a multifunction, ergonomically-designed, battery-operated, robust and reliable device which is made of good quality material and will last long. Used for measuring AC & DC Voltage, AC & DC Current, Resistance, Capacitance, Frequency, NCV detection, Continuity and Diode Test. Features a built-in LED Flashlight and HD display along with Data Hold function, Auto power-off and alarm functions.
Features:
- 3999 Counts Backlit LCD Display
- MAX/MIN Record Function
- A flashlight to access dark areas
- Auto-Ranging
- Auto Power Off
- Data Hold
- Low Battery Indication

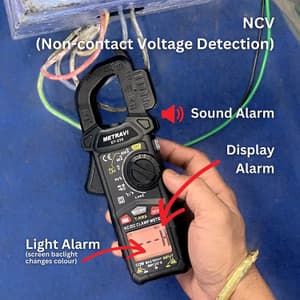

- Non-contact Voltage Detection (NCV)
- Live Wire Indication
- Low Pass Filter (LPF)
- Low Z Voltage Measurement
- Diode Test & Continuity Test
- Safety: Confirms to EN61010-1,-2-030, EN61010-2-033, EN6132601, CATIII 600V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | 3999 Counts, Backlit LCD |
|---|---|
| DC Voltage | 0 – 400m/4/40/400/600V (Accuracy: ±0.5%) |
| AC Voltage (T-RMS) | 0 – 4/40/400/600V (Accuracy: ±1.0%) |
| DC Current | 0 – 40 / 400A (Accuracy: ±2.5%) |
| AC Current (T-RMS) | 0 – 40/400A (Accuracy: ±2.5%) |
| Resistance | 0 – 400/4k/40k/400k/4M/40M Ohms (Accuracy: ±1.0%) |
| Capacitance | 0 – 40n/400n/4u/40u/400u/4mF (Accuracy: ±4.0%) |
| Frequency | 0 – 10/100/1k/10k/100k/1M/10MHz (Accuracy: ±1.0%) |
| Temperature | -20 to 1000°C |
| DC Voltage Resolution | 0.01mV to 1V |
| DC Current Resolution | 0.01A – 0.1A |
| Resistance Resolution | 0.1 Ohm – 0.01M Ohm |
| Capacitance Resolution | 0.001nF – 0.01mF |
| Frequency Resolution | 0.001Hz-0.001mHz |
| Sampling Time | 3 Times/sec |
| Overload Indication | Yes |
| Power Source | 2x AAA Alkaline Batteries |
| Jaw Dia | 26 mm |
| Relative Measurement | Yes |
| Flashlight | Yes |
