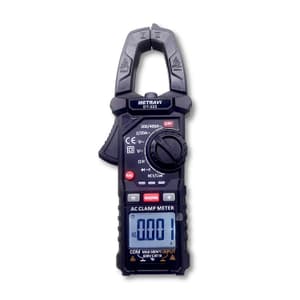

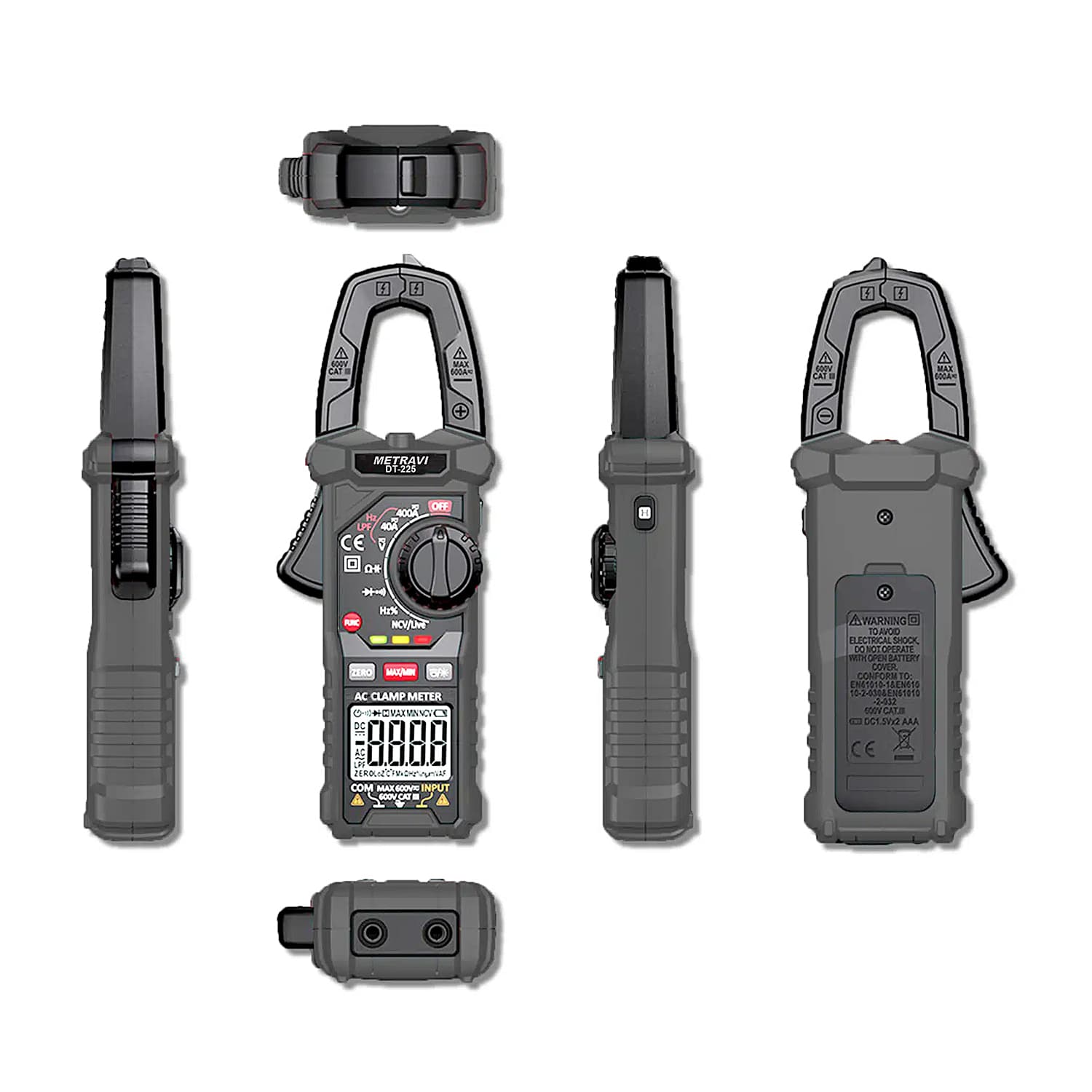

Metravi 2000 counts Digital TRMS AC Clamp Meter, DT-225
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- DC Voltage Range: 0-2V/20V/200V/600V
- DC Voltage Resolution: 0.001V to 1V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,733 (Incl. of all taxes)
₹1,469 + ₹264 GST (18%)
MRP was MRP ₹2,160
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The new Metravi DT-225 Digital TRMS AC Clamp Meter is a multifunction, ergonomically-designed, battery-operated, robust and reliable device which is made of good quality material and will last long. Used for measuring AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, NCV detection, Continuity and Diode Test. Features a built-in LED Flashlight and HD display along with Data Hold function, Auto power-off and alarm functions.
Features:
- DC Voltage: 2V/20V/200V/600V
- Accuracy: ±(0.5%reading +5dgt)
- AC Voltage: 2V/20V/200V/600V
- Accuracy: ±(1.0%reading +5dgt)

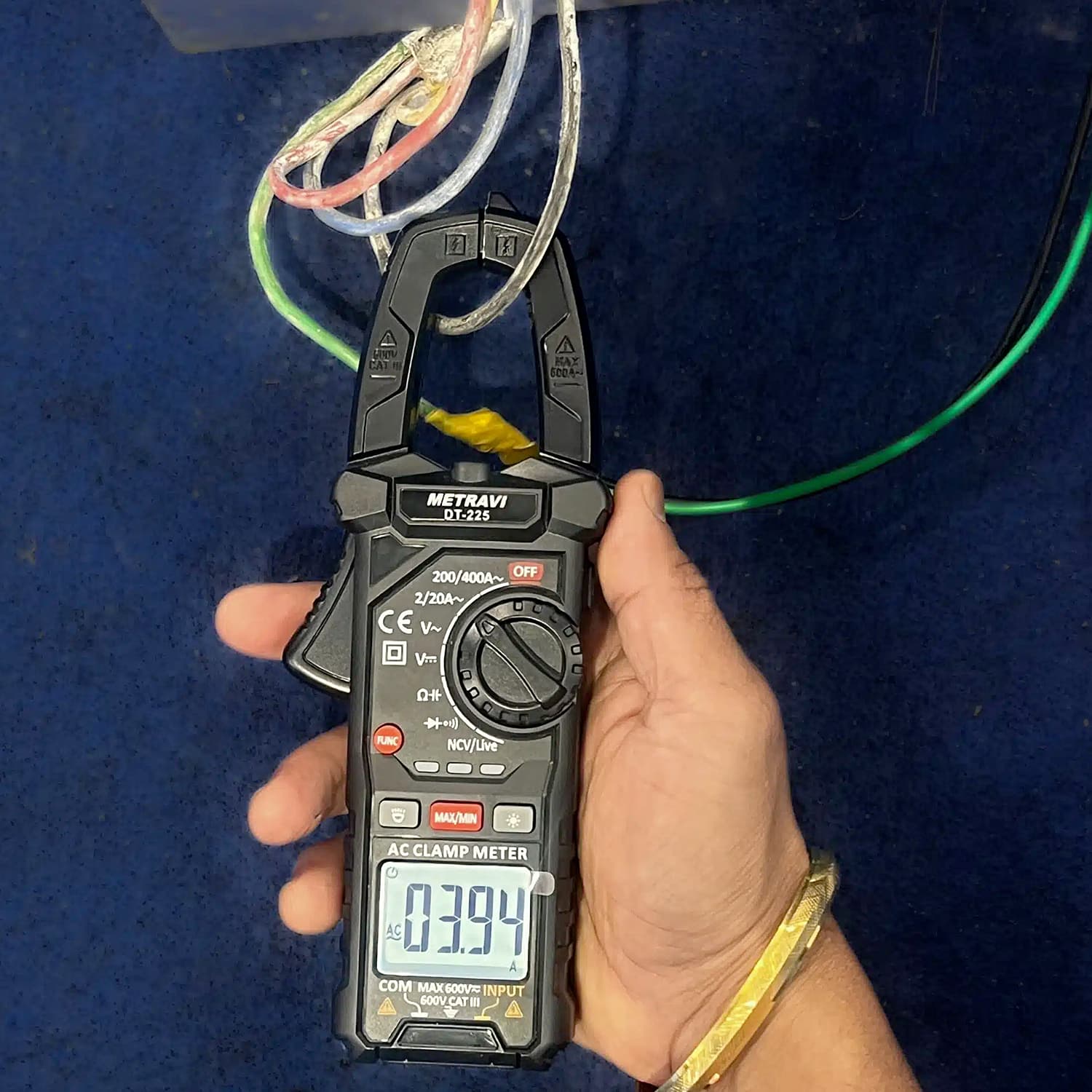

- AC Current: 2A/20A/200A/400A
- Accuracy: ±(2.5%reading +5dgt)
- Resistance: 200Ω/20kΩ/200kΩ/2MΩ/20MΩ
- Accuracy: ±(1.0%reading +5dgt)
- Capacitance: 2nF/20nF/200nF/2µF/20µF/200µF/2mF
- Accuracy: ±(4.0%reading +5dgt)
- Continuity & Diode Test
- Sampling Rate: about 3 times/second
- Display: 2000 counts Backlit LCD
- Over-range indication
- Low battery indication
- Input Polarity Indication
- Flash Light
- Auto Power Off
- Max / Min Record Facility

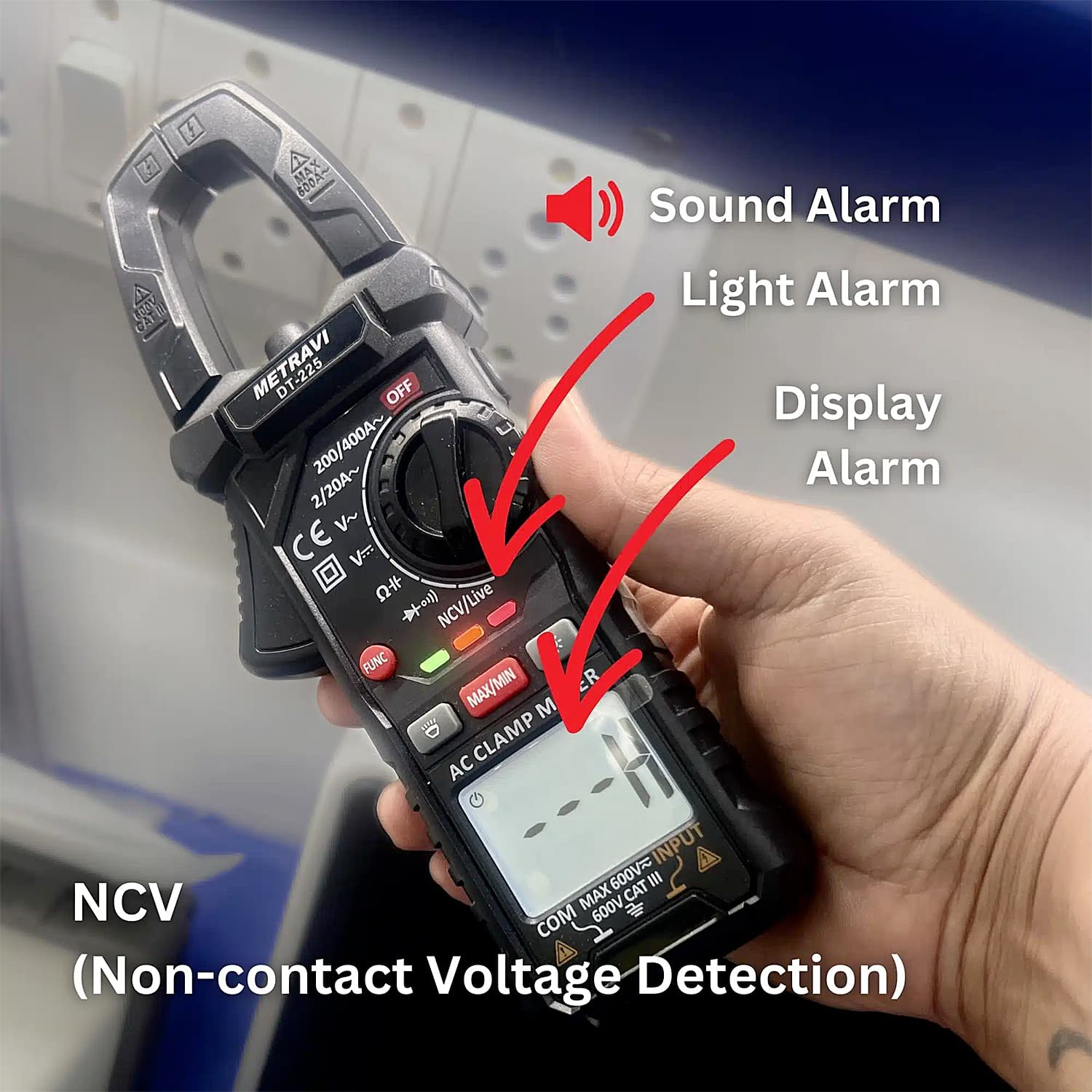

- Non-contact Voltage Detector (NCV)
- Live Wire Detection
- Jaw Dia: 26mm
- Confirms to EN61010-1,-2-030; EN61010-2-033; EN61326-1, CAT-III 600V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Voltage Range | 0-2V/20V/200V/600V |
|---|---|
| DC Voltage Resolution | 0.001V to 1V |
| DC Voltage Accuracy | ±0.5% |
| Capacitance Range | 0-2nF/20nF/200nF/2μF/20μF/200μF/2mF |
| Capacitance Resolution | 0.001nF - 0.001mF |
| Resistance Range (Ohms) | 0-200/2k/20k/200k/2M/200M |
| Resistance Resolution | 0.1 Ohm to 0.01MOhm |
| Resistance Accuracy | ±1% |
| Display | Backlit LCD |
| Power Source | 2x AAA Alkaline Batteries |
| Relative Measurement | Yes |
| Data Hold | Yes |
| Flashlight | Flashlight for working in dark areas |
| Diode & Continuity | Yes |
