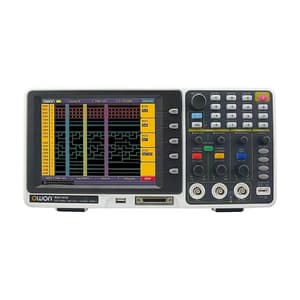

Owon 100MHz / 1GS/s Dual Channel 8 Bit Logic Analyser Mixed Signal Digital Oscilloscope, MSO 7102TD
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Weight: 2.2 kg
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
- Sample Rate: 1GS/s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹59,894 (Incl. of all taxes)
₹50,758 + ₹9,136 GST (18%)
MRP was MRP ₹61,900
Save 18%
5 Business Days
1
90302000
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- 100 MHz.,2 CH / 8 Bit, Logic Analyser, Coloured 8 “,1GS/s, USB+Software
- 2 in 1 (DSO + LA)
- 8 inch color LCD
- USB data transmission supported
- 20 automated measurements
Digital Storage Oscilloscope:
- Bandwidth : 60MHz - 100MHz
- Sample rate : 1GS/s
- Auto-scale function
- FFT
Logic Analyzer:
- Bandwidth : 100MHz
- Sample rate : 1GS/s
- 16 input channels
Application:
- Design and debug
- Circuit function test
- Education and training
- Mixed signal circuit test
What's Included In This Package:
- Power Cord
- CD Room
- Manual
- USB Cable
- Probe
- Probe Adjust
- Logic Analyzer Module
(Digital Storage Oscilloscope) Performance Specifications:
| Bandwidth | 100MHz | |
| Sample Rate | 1GS/s | |
| Rise Time | ≤3.5ns | |
| Display | 8''color LCD , 640 x 480 pixels | |
| Channel | dual + external trigger | |
| Horizontal Scale (s/div) | 2ns/Div - 100s/Div, step by 1-2-5 | |
| DC Accuracy (average) | average>16 : ±(3% reading + 0.05div) for ?V | |
| Vertical Sensitivity | 2mV/div - 10V/div | |
| DC Gain Accuracy | ±3% | |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | |
| Interpolation | sin (x) / x | |
| Max Input Voltage | 400V (DC + AC peak) | |
| Probe Attenuation Factor | 1X,10X,100X,1000X | |
| Trigger Mode | Edge, Video, Alternate, Pulse, and Slope | |
| Acquisition Mode | Normal, Peak Detect, and Average | |
| Record Length | 2M points | |
| Waveform Storage | 4 waveforms | |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty | |
| Waveform Math | +, -, *, /, invert, FFT | |
| Power Supply | 100 - 240V AC, 50Hz / 60Hz, CAT II | |
| Lissajous Figure | Bandwidth | 100MHz |
| Phase Difference | ± 3degrees | |
| Communication Interface | USB host, VGA (optional), and USB device | |
| Fuse | 1A, T class, 250V | |
| Battery | 7.4V 8000mAh (optional) |
(Logic Analyzer) Performance Specifications:
| Sample Rate | 20S/s - 1GS/s |
| Bandwidth | 100MHz |
| Channel | 16 |
| Record Length | 4M points |
| Input Impedance | 660KΩ ± 5%, in parallel with 15 ± 5pF |
| Trigger Mode | Edge, Bus, State, Data Alignment, Data Width, and Distributed Queue |
| Trigger Position Setting | Pre-trigger, Mid-trigger, and Re-trigger |
| Threshold Voltage | ±6V (4 settings) |
| Input Signal Range | ±30V |
| Data Search | available |
| Data System | binary, decimal, and hex |
| Digital Filter | 0, 1, 2 optional |
| Setting Storage | 10 settings |
| USB Flash Disk Storage | available |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Sample Rate | 1GS/s |
| Rise Time | =3.5ns |
| Record Length | 2M points |
| DC Gain Accuracy | ±3% |
| Interpolation | sin (x) / x |
| Display | 8'' Color LCD , 640 x 480 Pixels |
| Max Input Voltage | 400V (DC + AC peak) |
| Power Supply | 100 - 240V AC, 50Hz / 60Hz, CAT II |
| Horizontal Scale (s/div) | 2ns/Div - 100s/Div, Step by 1-2-5 |
| Communication Interface | USB host, VGA (optional), and USB device |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| DC Accuracy (average) | Average>16 : ±(3% reading + 0.05div) for ?V |
| Dimension (W x H x D) | 370 x 180 x 120 (mm) |
| Battery | 7.4V 8000mAh (optional) |
| Probe Attenuation Factor | 1X,10X,100X,1000X |
| Fuse | 1A, T class, 250V |
