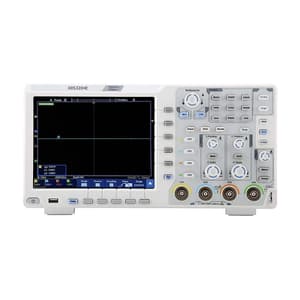

Owon 200MHz / 1GS/s Four Channel 8 Inch Large Display Digital Storage Oscilloscope, XDS 3204E
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 200 MHz
- No. of Channels: Four Channel
- Sample Rate (500MS/s for each Channel): 1GS/s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹61,926 (Incl. of all taxes)
₹52,480 + ₹9,446 GST (18%)
MRP was MRP ₹64,000
Save 18%
5 Business Days
1
90302000
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights

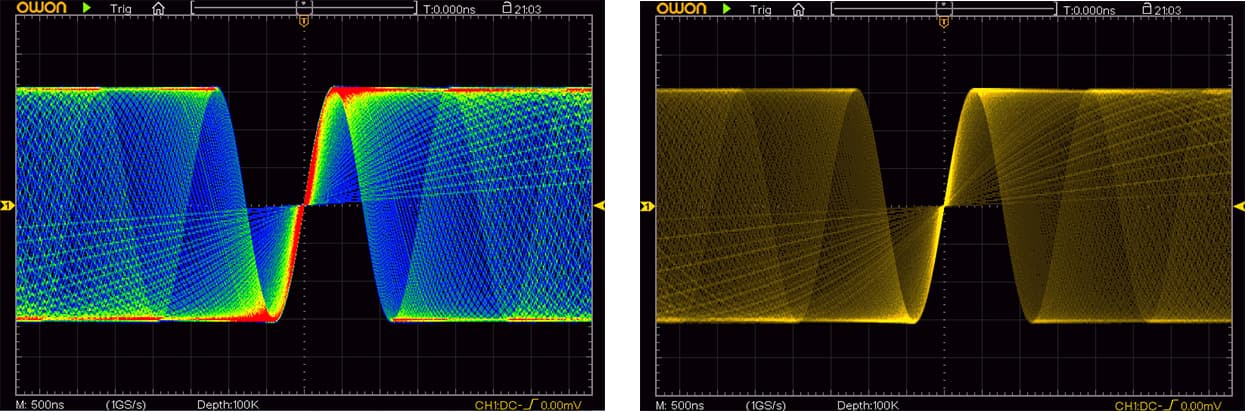

- Low back ground noise

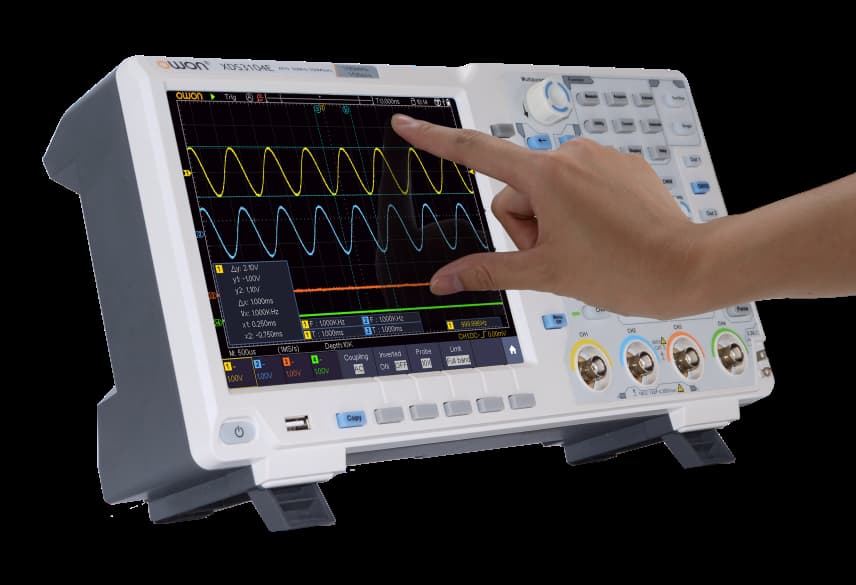

- 8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
- SCPI, and LabVIEW supported
- Multi- trigger, and bus decoding function
- Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA

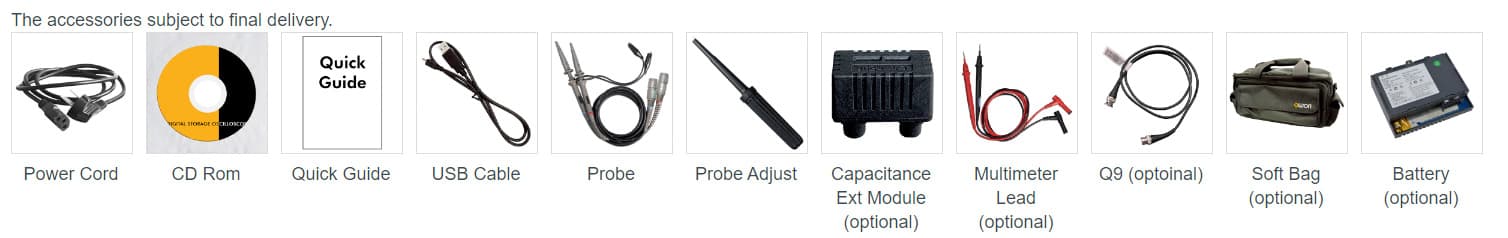

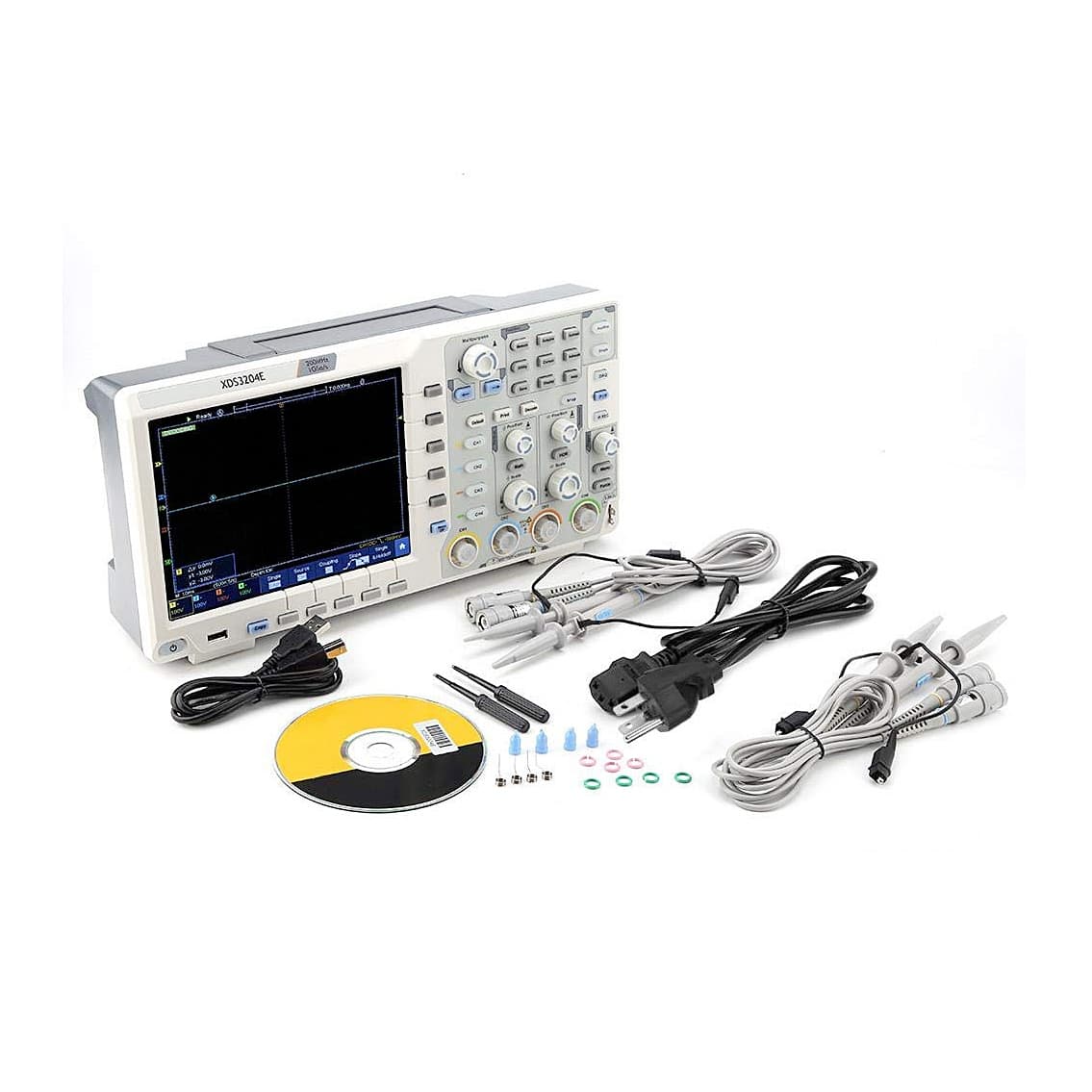

What's Included In This Package:
- Power Cord
- CD Room
- Quick Guide
- USB Cable
- Probe/Probe Adjust
Specification:
| XDS3204E | |
| Input Coupling | DC, AC, and GND |
| Vertical Sensitivity | 1mV/div - 10V/div (at input) |
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) |
| Bus Decoding (optional) | I2C, SPI, RS232, CAN |
| Trigger Mode | Auto, Normal, and Single |
| Vertical Range | ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div) |
| Waveform Math | +, -, *, / , FFT, FFT rms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject) |

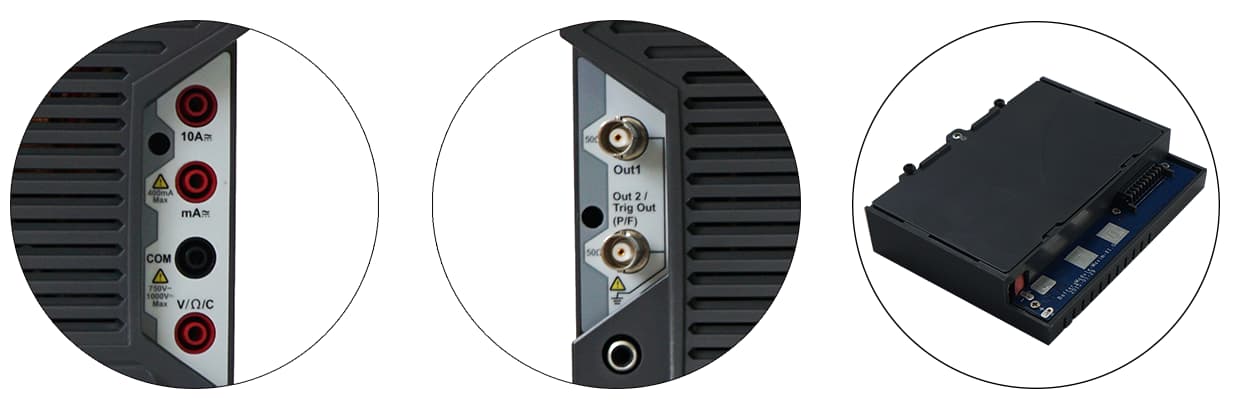

| Optional Module / Function | |
| VGA | VGA+AV port |

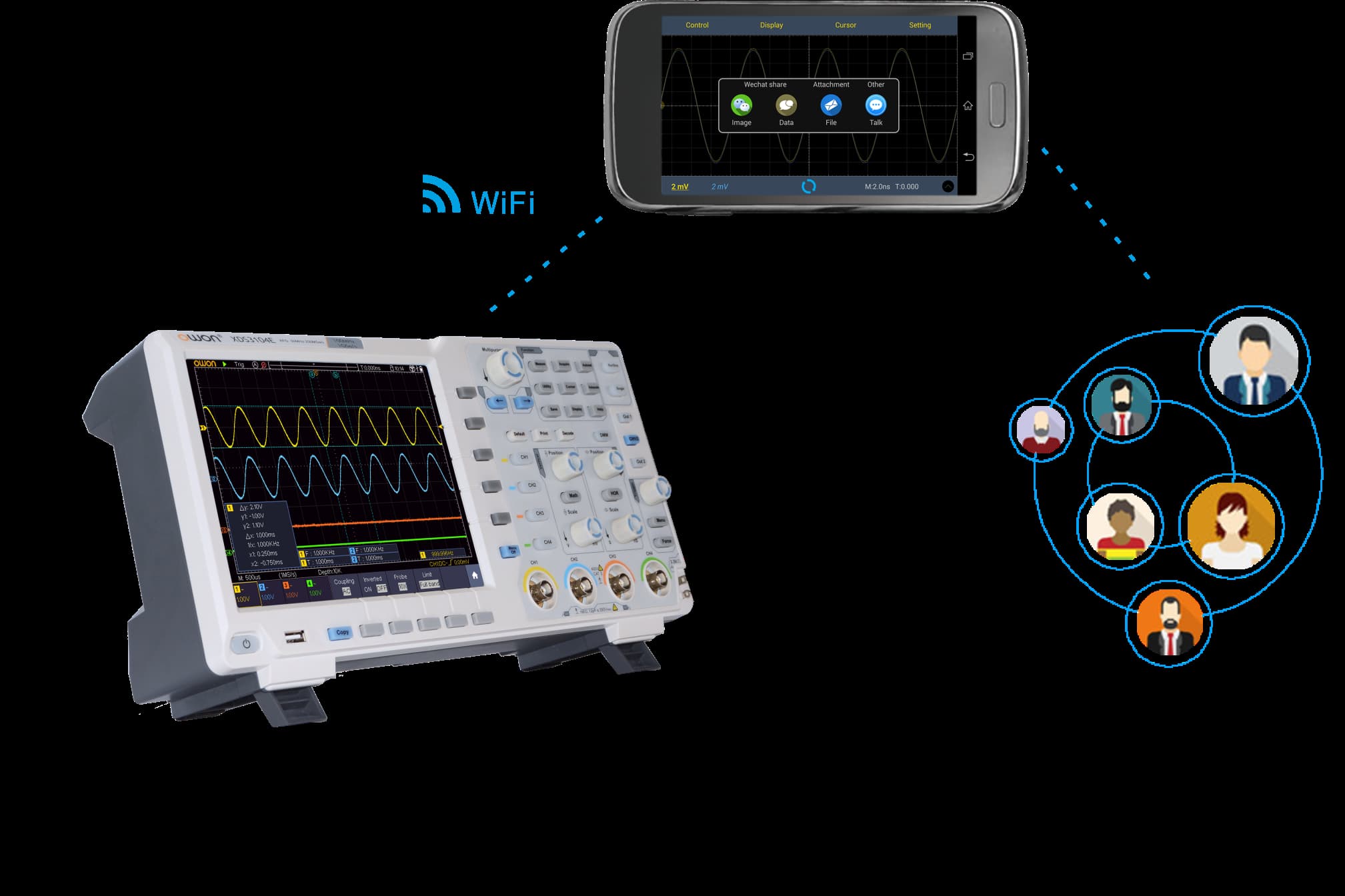

| WIF | Wifi |
| AWG | arb Waveform Generator (only apply to XDS3104E ?XDS3064E,XDS3014, XDS3204E) |
| DMM | Digital Multimeter |
| MTS | Touch Screen (capacitor-type) |
| Optional Decoding Kit | |
| RS232 | RS232 |
| SPI | SPI |
| I2C | I2C |
| CAN | CAN |
 |
 |
 |
 |
 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 200 MHz |
|---|---|
| No. of Channels | Four Channel |
| Sample Rate (500MS/s for each Channel) | 1GS/s |

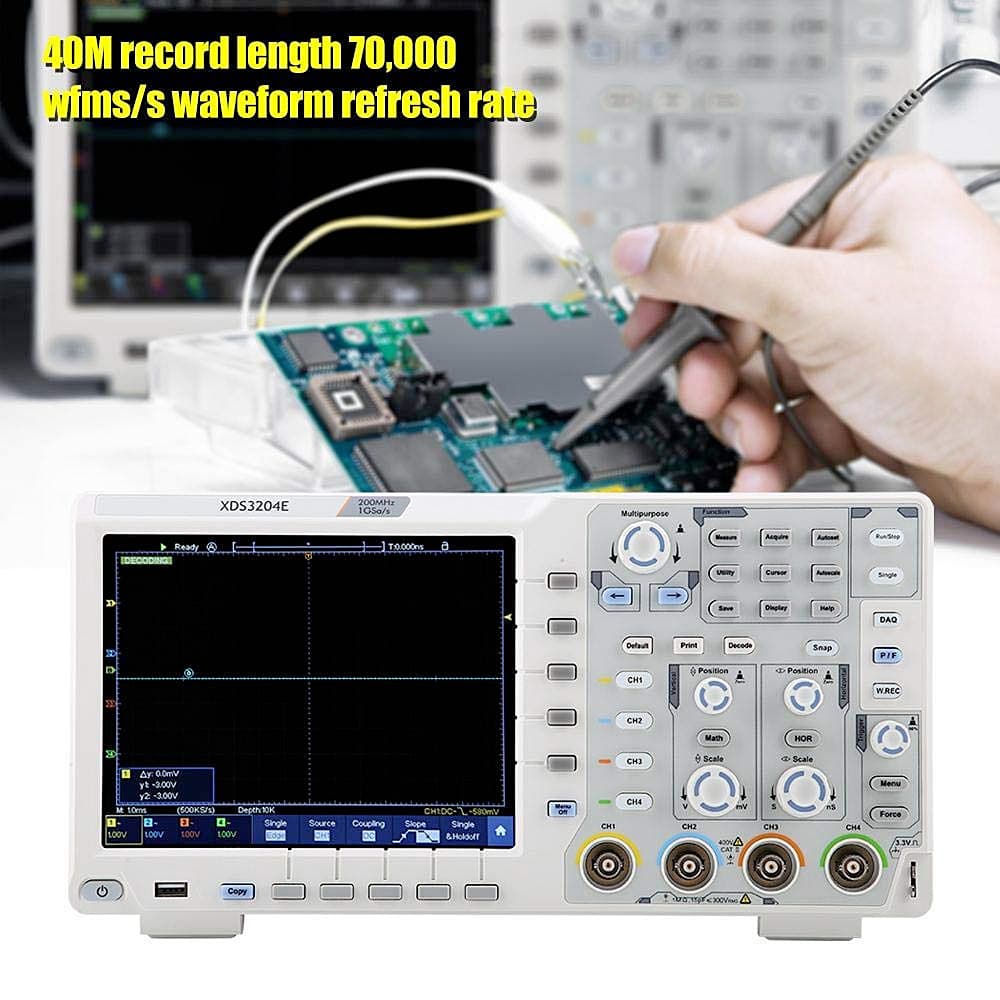

| Record Length | 40M |
| Sampling Rate / Relay Time Accuracy | ±2.5 ppm |
| Waveform Refresh Rate | 70,000 wfms/s |
| Fuse | 2A, T class, 250V |
| Frequency Counter | Available |
| Display | 8"Color LCD, 800 x 600 Pixels Display |
| Max Input Voltage | 1MO = 300Vrms |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Horizontal Scale (s/div) | 1ns/Div - 1000s/Div, Step by 1-2-5 |
| Vertical Resolution (A/D) | 8 bits |
| Battery | 3.7V, 13200mA |
| Dimension (W x H x D) | 340 x 177 x 90 (mm) |
| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) |
