Owon 20MHz / 100MS/s Dual Channel Handheld Digital Storage Oscilloscope & Digital Multimeter, HDS 1022M-N
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Weight: 645 kg
- Bandwidth: 20 MHz
- No. of Channels: Dual Channel
- Sample Rate: 100MS/s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹31,931 (Incl. of all taxes)
₹27,060 + ₹4,871 GST (18%)
MRP was MRP ₹33,000
Save 18%
5 Business Days
1
90302000
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- 2 in 1 (DSO + Multimeter)
- Auto-scale function
- FFT function
- 20 group automatic measurement options
- Bandwidth : 20MHz
- USB data transmission supported
- Rechargeable Li-ion battery (6 hours' backup)
- Waveform record and replay
- Multimeter newly supported SCPI
Application:
- Electronic circuit debugging
- Circuit testing
- Design and Manufacture
- Education and Training
- Automobile maintenance and testing

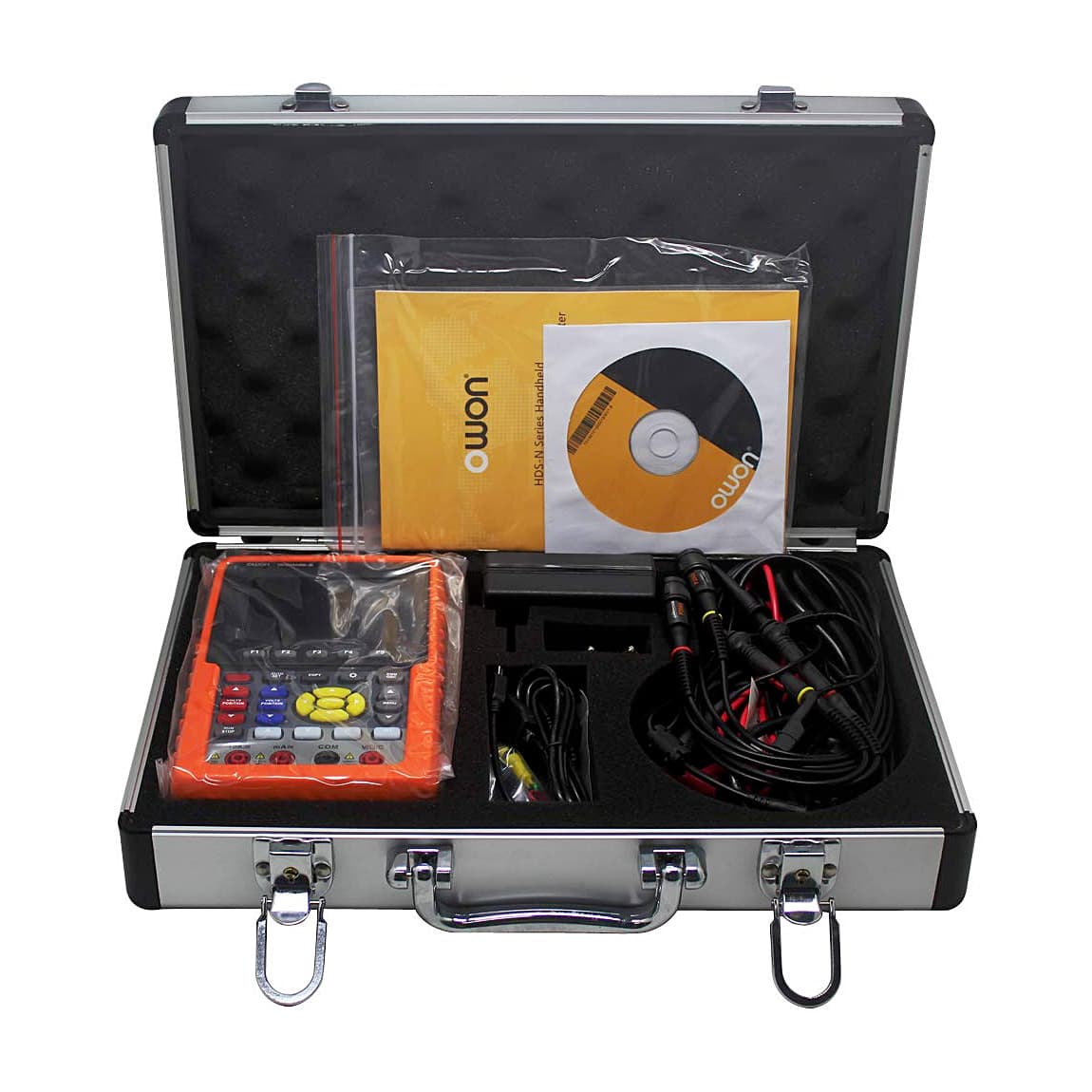

What's Included In This Package:
- Power Cord
- Cd Room
- Manual
- USB Cable
- Probe
- Probe Adjust
- Multimeter Lead
- Adapter
- 5V.1KHZ Output
- Capacitance Ext Module
- Metal Case
Specification:
| Input Coupling | DC, AC, and GND |
| Vertical Sensitivity | 5mV/div - 5V/div (at input) |
| Trigger Type | Edge, Video, and Alternate |
| Trigger Mode | Auto, Normal, and Single |
| Trigger Level | ±6 divisions from screen center |
| Acquisition Mode | Sample, Peak Detect, and Average |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty |
| Waveform Math | +, -, *, /, invert, FFT |
| Waveform Storage | 4 Waveform |
| Bandwidth | full bandwidth |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 20 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Sample Rate | 100MS/s |
| Rise Time (at Input, Typical) | =17.5ns |
| Record Length | 6K points |
| DC Gain Accuracy | ±3% |
| Interpolation | sin (x) / x |
| Display | 3.7" Color TFT Display (640 x 480 Pixels) |
| Max Input Voltage | 400V (DC + AC peak, 1MO input impedance, probe attenuation 10 : 1), CAT II |
| Power Supply | 100V-240V AC, 50/60Hz |
| Horizontal Scale (s/div) | 5ns/Div - 100s/Div, Step By 1-2.5-5 |
| Input Impedance | 1MO ± 2%, in parallel with 20pF ± 5pF |
| Communication Interface | USB |
| Vertical Resolution (A/D) | 8 bits |
| DC Accuracy (average) | Average >16 : ±(5% reading + 0.05 div) for ?V |
| Dimension (W x H x D) | 115 x 180 x 40 (mm) |
| Li-ion Battery | 7.4V, 6 hours' operation |
| Probe Attenuation Factor | 1X,10X,100X,1000X |
| Full Scale Reading | 33⁄4 Digits (Max 4000 count) |
| Voltage | VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 750V (virtual value) |
| Current | DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits) |
| Impedance | 400O : ±(1% ± 3 digits), 40?O - 4?O : ±(1% ± 1 digit), 40MO : ±(1.5% ± 3 digits |
| Capacitance | 51.2nF - 100uF : ±(3% ± 3 digits) |
| Diode | 0V - 1.5V |
| On / Off Test | <50 (± 30) beeping |
