Owon 25MHz / 100MS/s Single Channel Pen Type Digital PC Oscilloscope, RDS 1021
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Weight: 0.27 kg
- Bandwidth: 25 MHz
- No. of Channels: Single Channel
- Sample Rate: 100MS/s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,225 (Incl. of all taxes)
₹4,428 + ₹797 GST (18%)
MRP was MRP ₹5,400
Save 18%
5 Business Days
1
90302000
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights

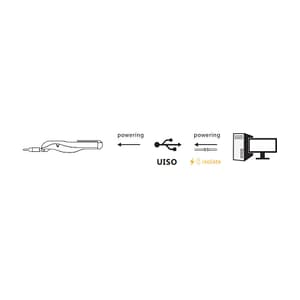

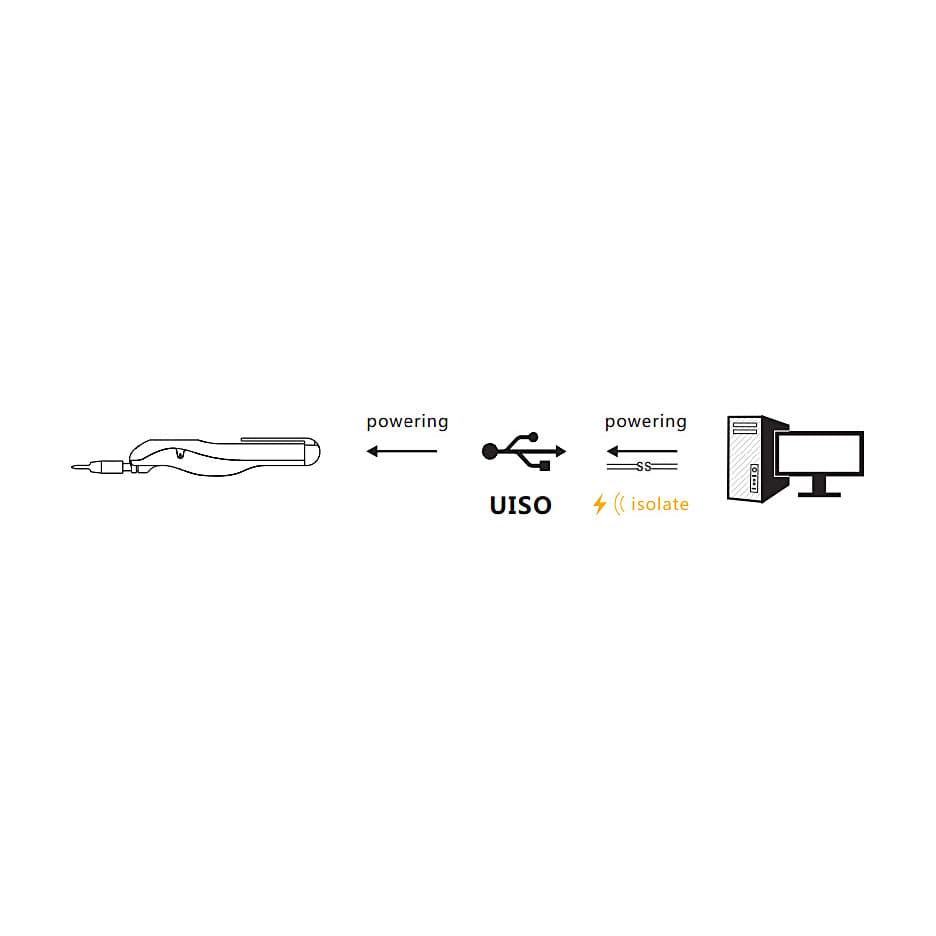

Creative USB isolation function fulfills direct device- powering via USB port, and supports floating measurement (isolation voltage upto 1000V), making the operation more user-friendly, assuring safer T&M environment, and decreasing the interference to micro signal- measuring to the minimum.
- 25 MHz., PEN Type, 1 CH., 100MS/s, USB+Software
- 25MHz bandwidth
- 100MS/s sample rate
- 5K record length
- FFT function
- human engineering design

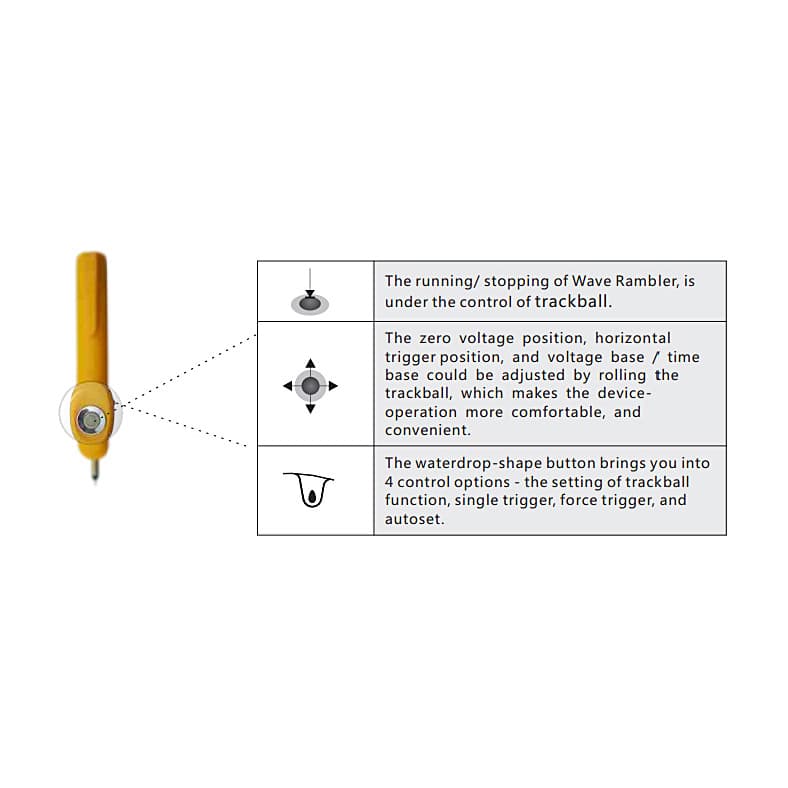

- multi- action mode via creative trackball
- multi- trigger option : edge, slope, and pulse
- 5mV micro signal supported
- USB bus powering, and optional USB isolated function
- easy portability, pocket accommodated
Application:
- Design and debug
- Circuit function test
- Education and training
What's Included In This Package:
- Grounding Clamp
- Protection Cover
- USB Flash Disk
- Manual
- USB Cable
Specification:
| Interval (?T) Accuracy (full bandwidth) | Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
| Input Coupling | DC, AC , and GND |
| Vertical Sensitivity | 5mV/div - 5V/div |
| Trigger Type | Edge, Pulse, and Slope |
| Trigger Mode | Auto, Normal, and Single |
| Trigger Level | ±5 di visions from screen center |
| Acquisition Mode | Sample, Peak Detect, and Average |
| Cursor Measurement | ? V and ?T between cursors |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty |
| Waveform Math | FFT |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 25 MHz |
|---|---|
| No. of Channels | Single Channel |
| Sample Rate | 100MS/s |
| Record Length | 5K |
| Rise Time | =14ns |
| DC Gain Accuracy | ±3% |
| Interpolation | sin(x)/x |
| Max Input Voltage | 50V (DC + AC peak) |
| Communication Interface | USB2.0 |
| Probe Attenuation Factor | 1X, 10X |
| Displacement | ±10 divisions |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Input Impedance | 10MO±2% (X 10), 1MO±2% (X1) |
| Horizontal Scale (s/div) | 5ns/Div - 100s/Div, Step by 1-2-5 |
| Vertical Resolution (A/D) | 8 bits |
| LF Respond (AC, -3dB) | =10Hz |
| DC Accuracy (average) | average=16 : ±(3% reading + 0.05 div) for ?V |
| Dimension (W x H x D) | 150 x 20 x 18 (mm) |
| Input Capacitance | 20pF±5pF |
