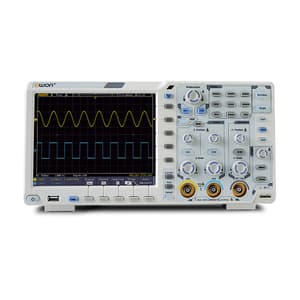

Owon 300MHz / 2.5GS/s Dual Channel Digital Storage Oscilloscope, XDS 3302

Shop all OWON

SKU: ME.EL.OS.00067

Model: XDS3302

Roll over the image to zoom in

Visit OWON Store

Key Features

  • Product Type: Oscilloscopes
  • Weight: 2.6 kg
  • Bandwidth: 300 MHz
  • No. of Channels: Dual Channel
  • Sample Rate: 2.5GS/s
See all product information

ToolBuy Benefits

₹1,09,339 (Incl. of all taxes)

₹92,660 + ₹16,679 GST (18%)

MRP was MRP ₹1,13,000

Save 18%

5 Business Days

1

–

Download Product LeafletNot available
Download OWON CatalogueNot available

Highlights

  • 8-bit, 12-bit or 14-bit high resolution ADC, restoring the waveform detail fully
  • 40M record length, max 70,000 wfms/s waveform refresh rate
  • Low background noise, vertical sensitivity in 1 mV/div - 10 V/div
  • Multi- trigger, and bus decoding function
  • SCPI, and LabVIEW supported

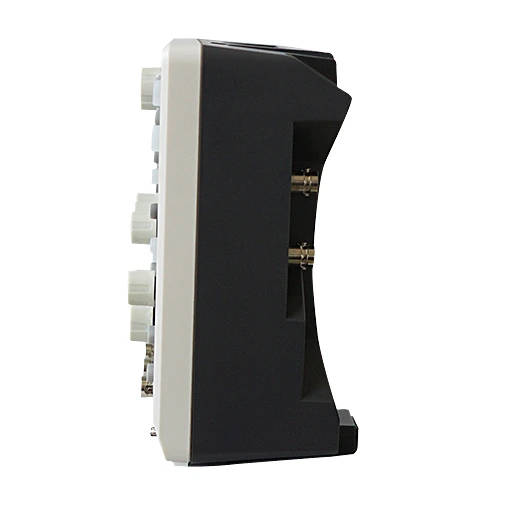

  • Ultra-thin body-design, less space accommodation
  • Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
  • VGA port - better solution for video expansion, and teaching demonstration
  • 8 inch 800 x 600 high resolution LCD
  • Optional multi-point touch screen, more user-friendly operation experience
  • functions as data logger, and multimeter with data logging function and dual-channel 25MHz / 50MHz arbitrary waveform generator, furthermore, battery pack, and WiFi module supported.
  • Waveform Math: +, -, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
  • Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN (optional)

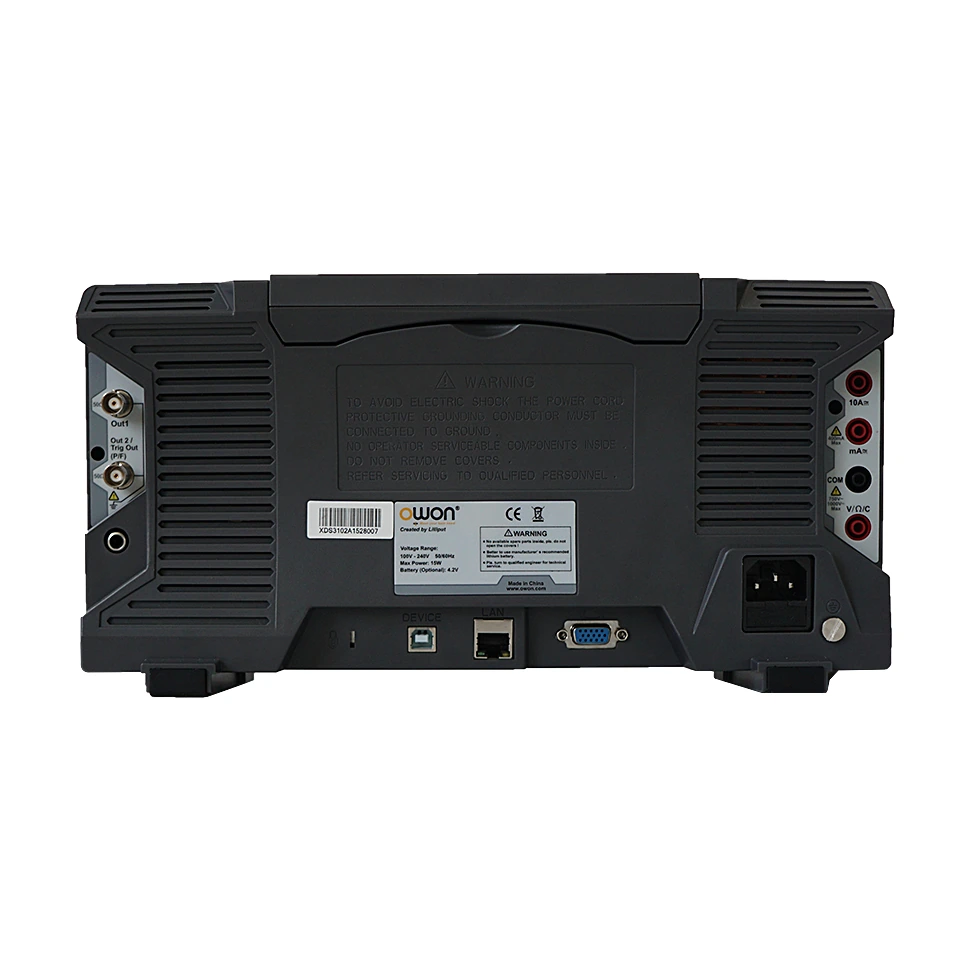

  • Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)

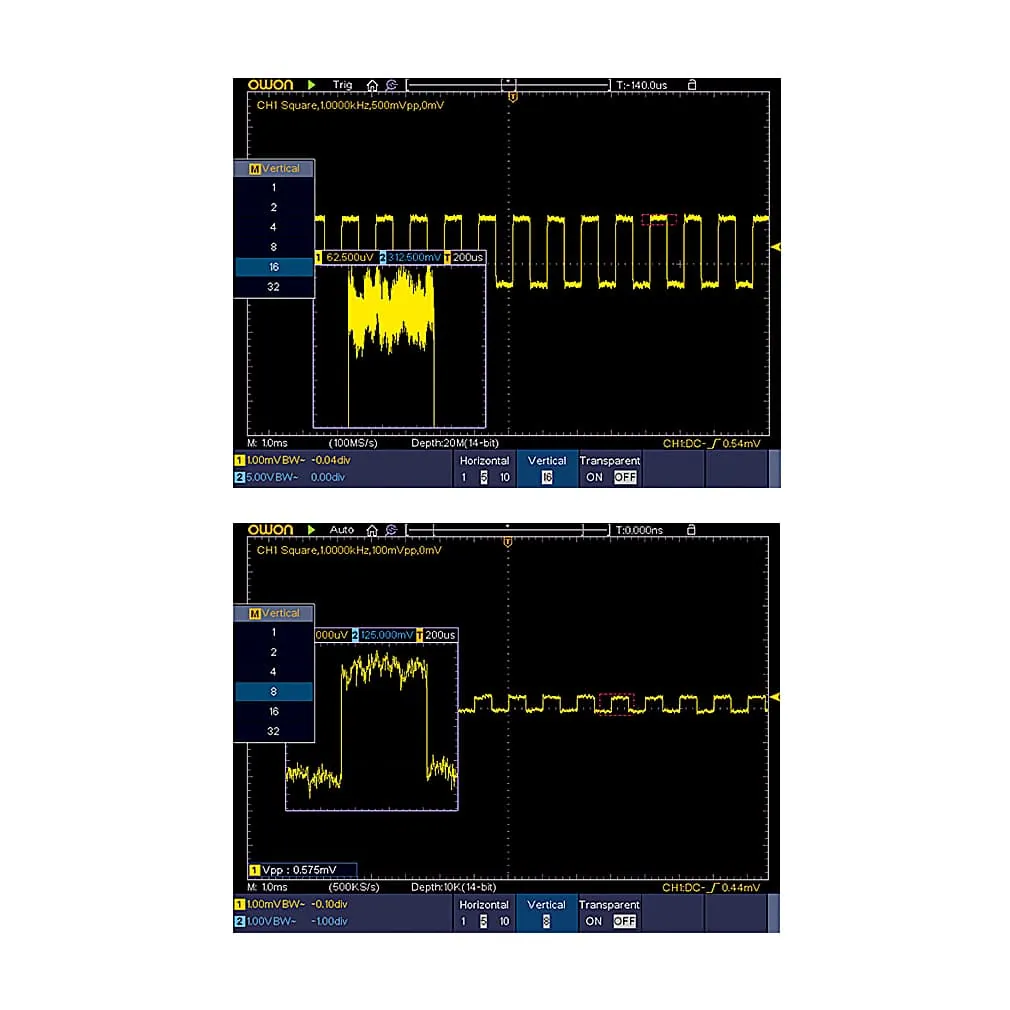

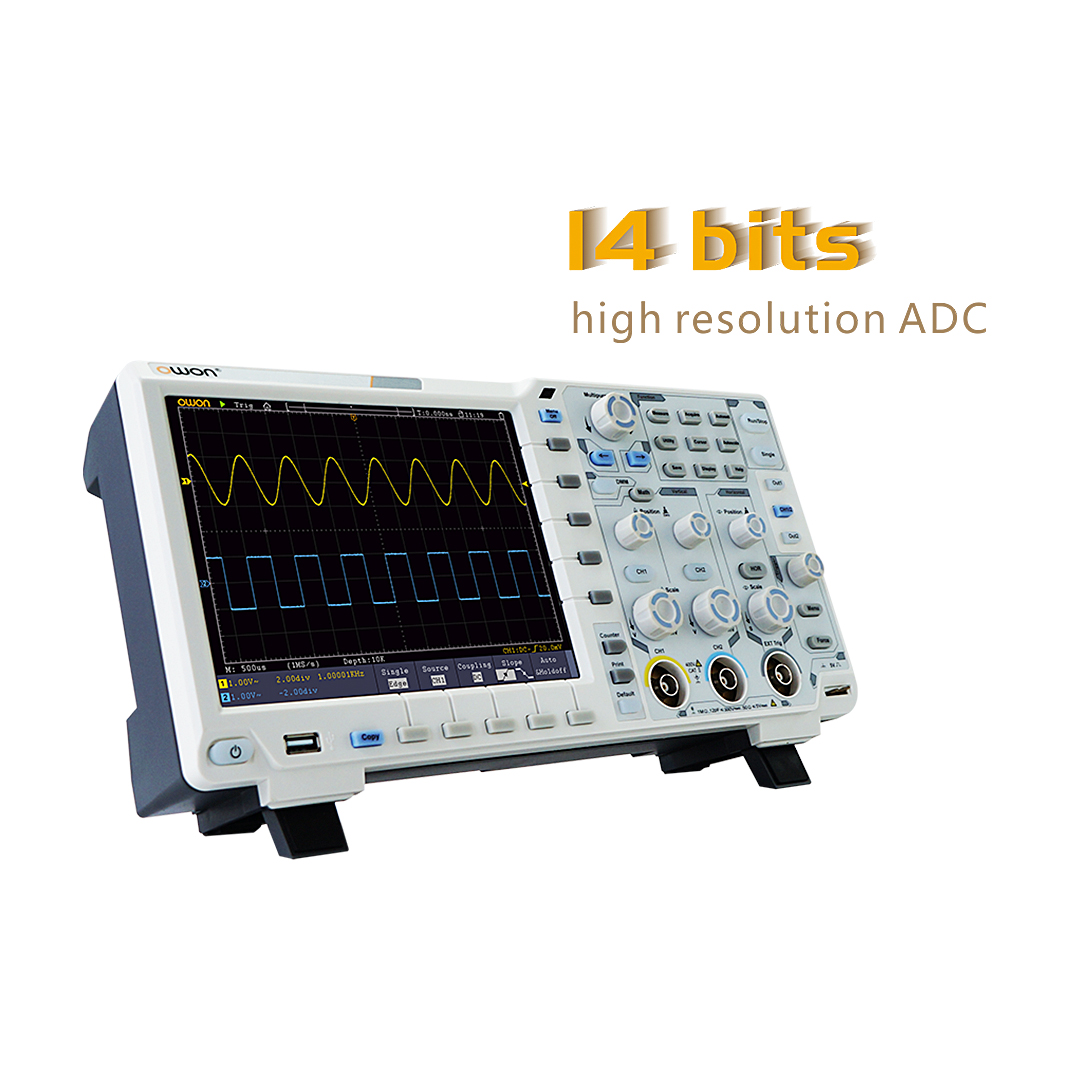

12 / 14-bits ADC and original magnifier function
XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25μV/div.

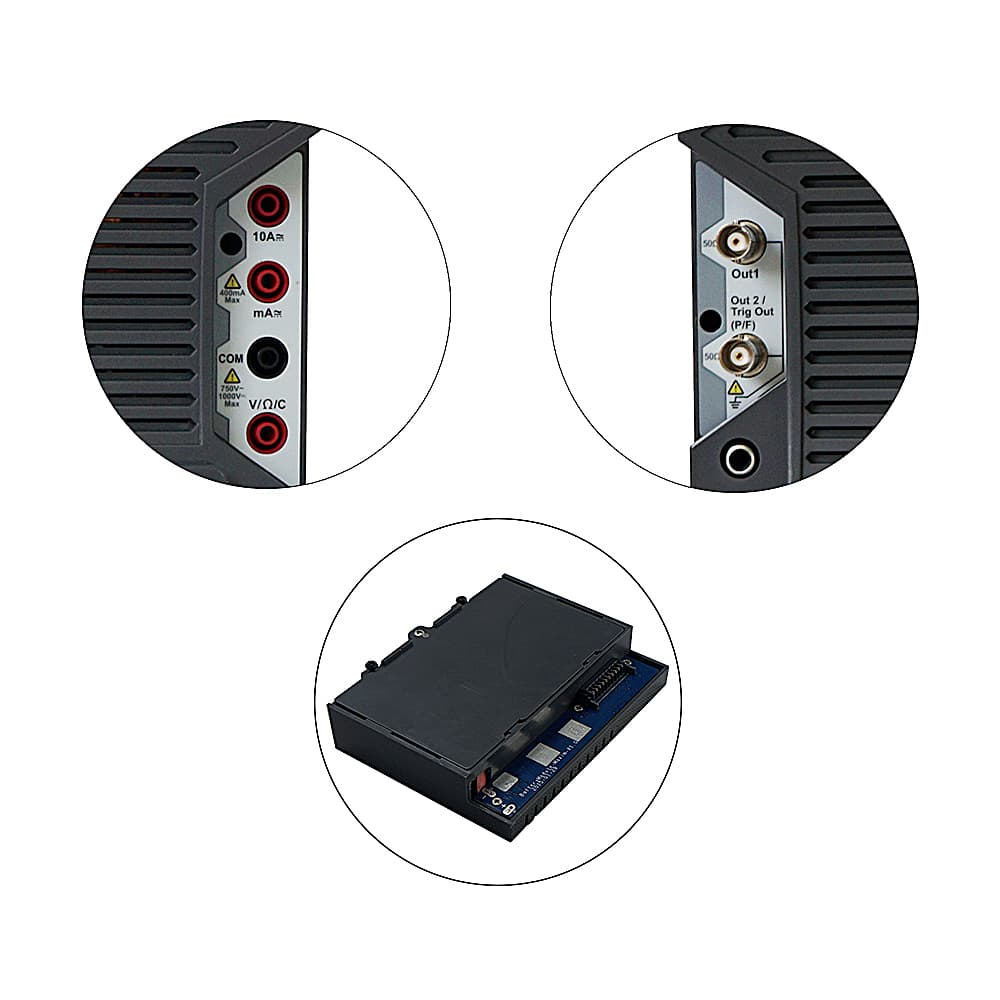

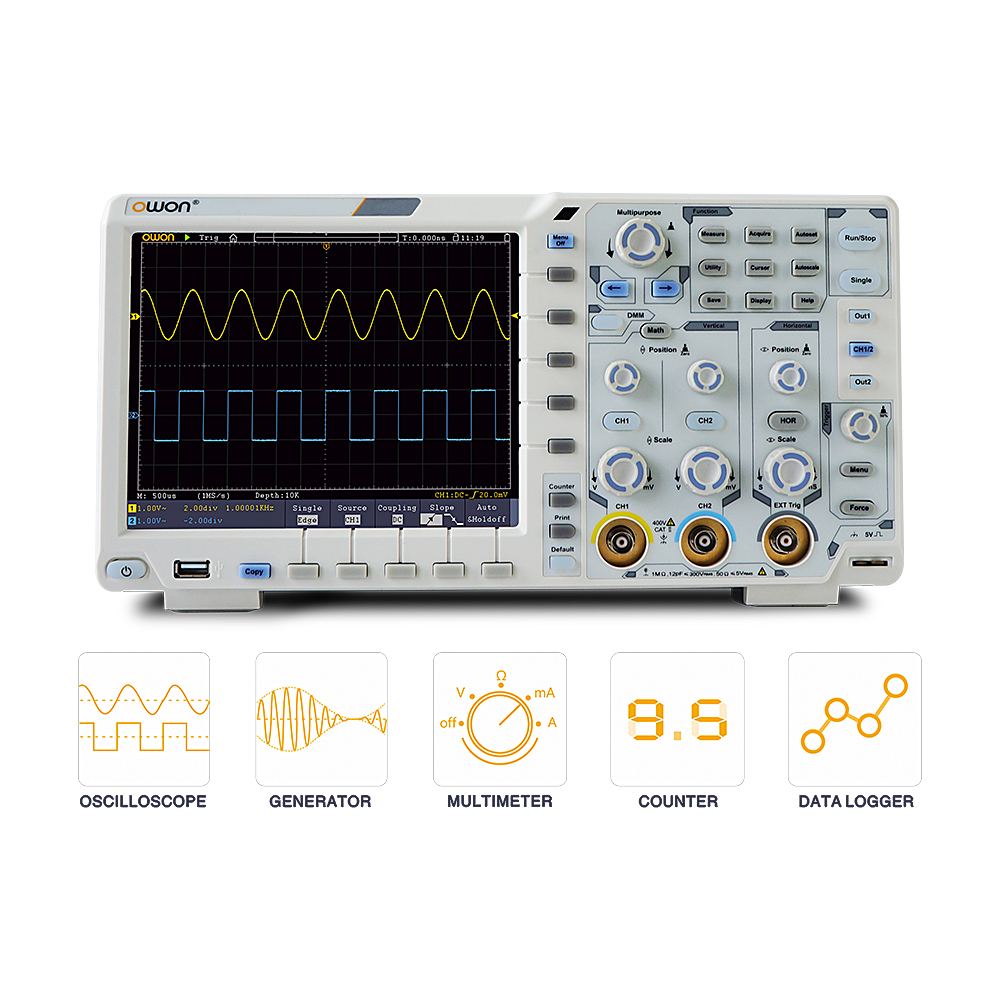

Multi-function mobile tester
Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.

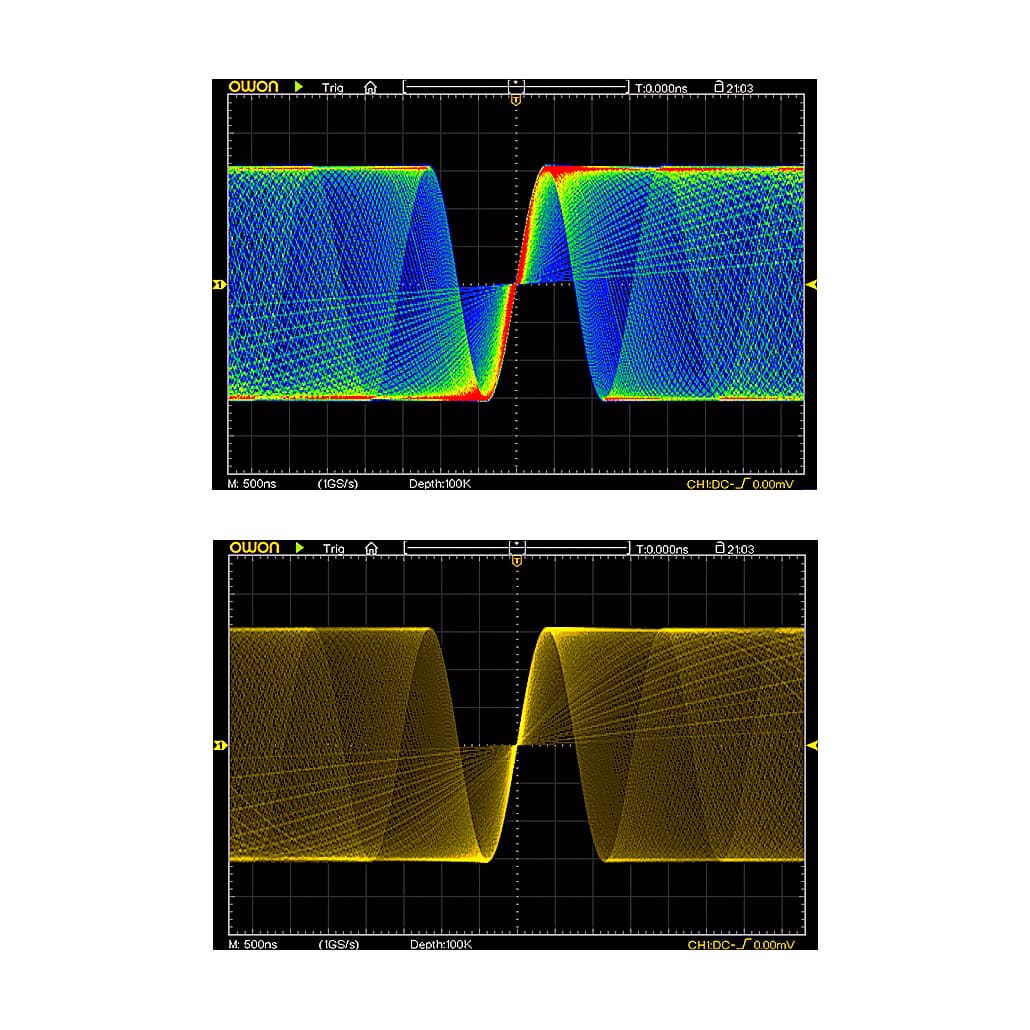

Max 70,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.

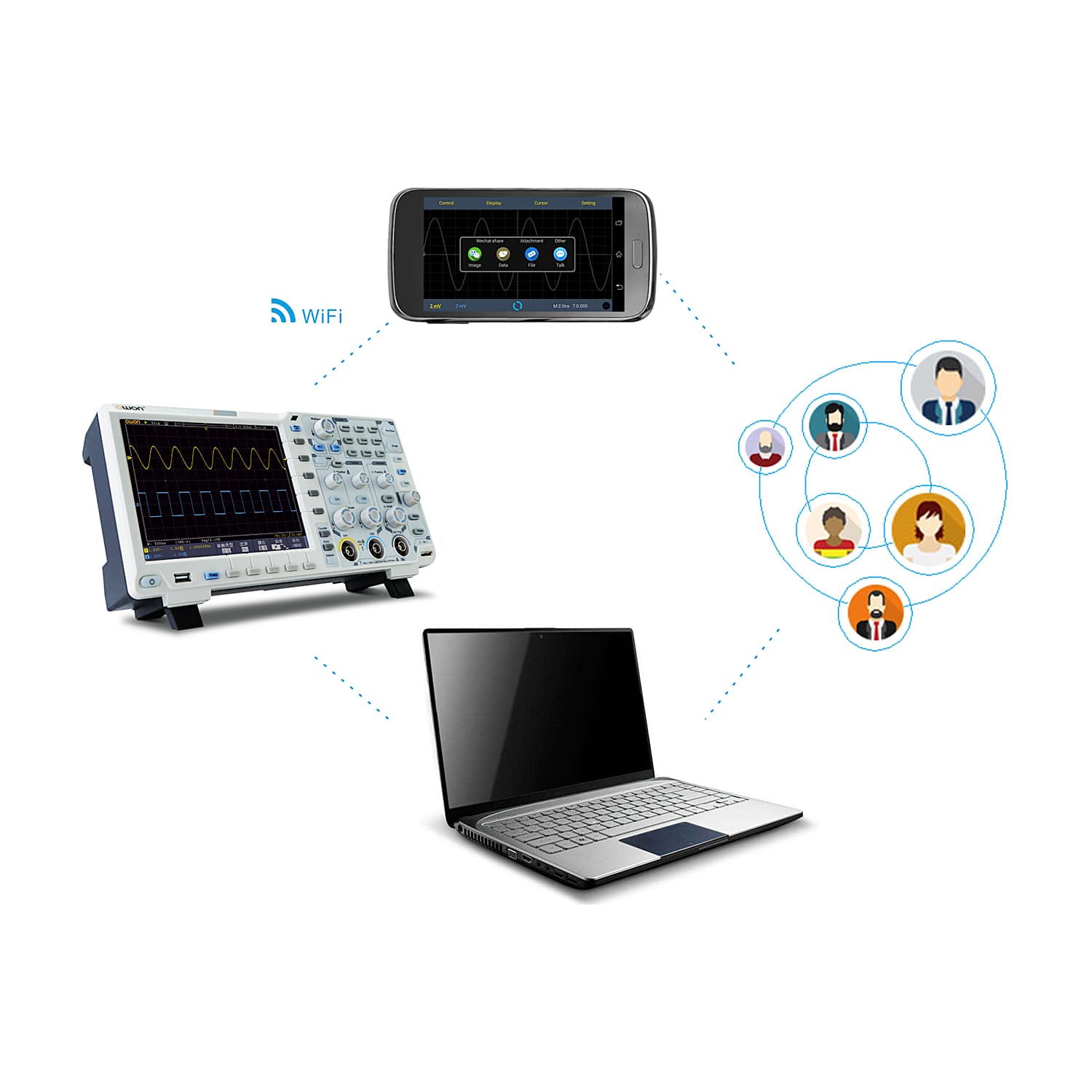

WiFi function

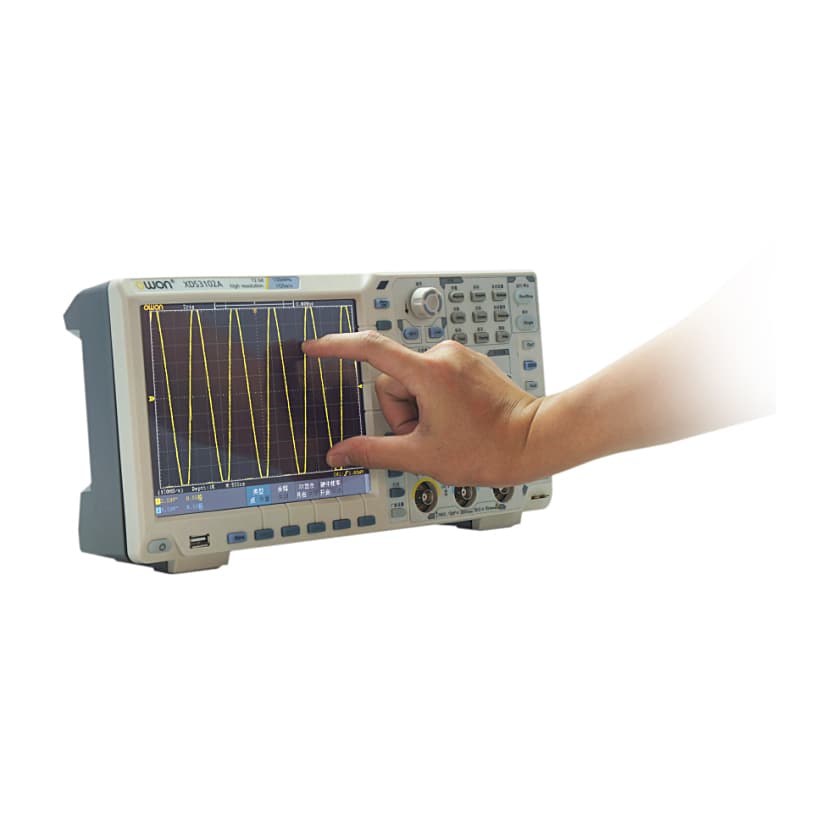

Multi-touch screen, easy to operate



Package Content:

  • 1x Digital Storage Oscilloscope
  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
  • Capacitance Ext Module (optional)
  • Multimeter Leads (optional)
  • Q9 (optional)
  • Soft Bag (optional)
  • Battery (optional)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Owon 300MHz / 2.5GS/s Dual Channel Digital Storage Oscilloscope, XDS 3302
Bandwidth300 MHz
No. of ChannelsDual Channel
Sample Rate2.5GS/s
Vertical Resolution (A/D)8 bits
Record Length40M
Horizontal Scale (s/div)1ns/div - 1000 s/div, step by 1 - 2 - 5
Display8" color LCD (800 x 600 Pixels)
Bus DecodingI2C, SPI, RS232, and CAN (Optional)
Power Supply100V - 240V AC, 50/60Hz, CAT II
Power Consumption< 24W
Fuse2A, T class, 250V
Dimension (W x H x D)340 x 177 x 90 mm
