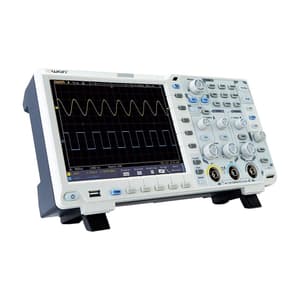

Owon 60 MHz/ 1GS/s Dual Channel AWG Multimeter Touch Screen Digital Storage Oscilloscope VGA, XDS 3062A
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Weight: 2.6 kg
- Bandwidth: 60 MHz
- No. of Channels: Dual Channel
- Sample Rate: 1GS/s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹46,929 (Incl. of all taxes)
₹39,770 + ₹7,159 GST (18%)
MRP was MRP ₹48,500
Save 18%
5 Business Days
1
90302000
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
Functions as data logger, and multimeter with data logging function, and dual channel 25MHz arbitrary waveform generator, furthermore, battery pack supported.
Features:

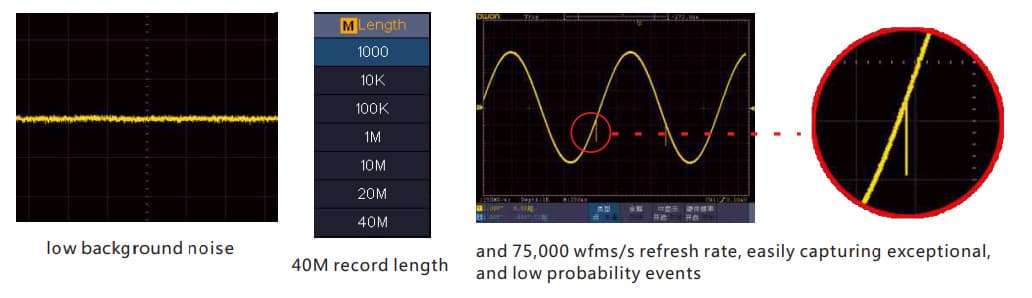

- Low background noise, vertical sensitivity in 1 mV/div - 10 V/div
- Multi- trigger, and bus decoding function
- SCPI, and LabVIEW supported
Application:
- Electronic circuit debugging
- Circuit testing
- Design and Manufacture
- Education and Training
- Automobile maintenance and testing

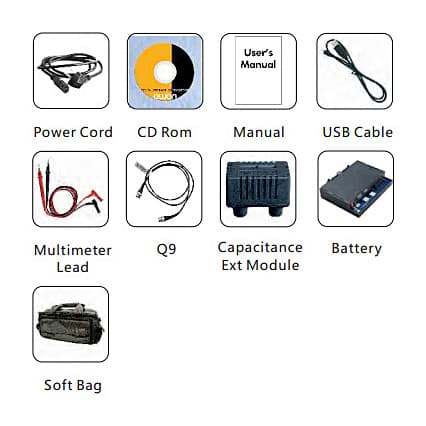

What's Included In This Package:
- Power Cord
- CD Room
- Manual
- USB Cable
- Multimeter
- Q9
- Capacitance Ext Module
- Battery
- Soft Bag
Creative New Look:
- Ultra-thin body-design, less space accommodation
- Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
- VGA port - better solution for video expansion, and teaching demonstration
- 8 inch 800 x 600 high resolution LCD
- Optional multi-point touch screen, more user-friendly operation experience
Specification:
| Interval (T) Accuracy (full bandwidth) | Single : ±(1 interval time + 1ppm x reading + 0.6ns); A verage > 16 : ±(1 interval time + 1ppm x reading + 0.4ns |
| Input Coupling | DC, AC, and GND |
| Vertical Sensitivity | 1mV/div - 10V/div (at input) |
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, T imeout, Nth Edge, Logic, I C, SPI, RS232, and CAN |
| Bus Decoding* | I2C, SPI, RS232, and CAN |
| Trigger Mode | Auto, Normal, and Single |
| Line / Field Frequency (video) | NTSC, PAL, and SECAM standard |
| Cursor Measurement | ?V, and ?T between cursors, ?V and ?T between cursors, and auto- cursors |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B , Delay A→B , +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count |
| Waveform Math | +, -, *, /, FFT |
| Waveform Storage | 100 group |
| Bandwidth | full bandwidth |
| Phase Difference | ±3 degrees |

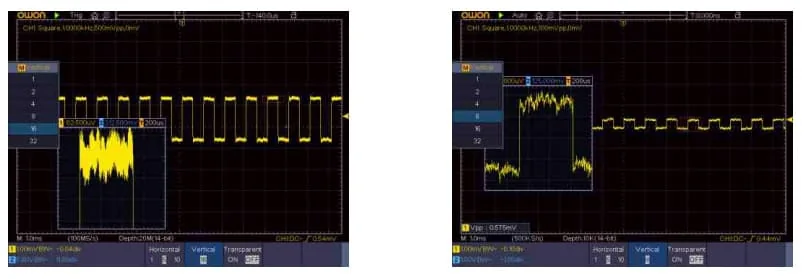

 XDS series introduce 12 bits hardware ADC, the precision is 16 times against other oscilloscope on market. Equipping with OWON's original magnifier function, it can observe the signal low down to 31.25μV/div. |

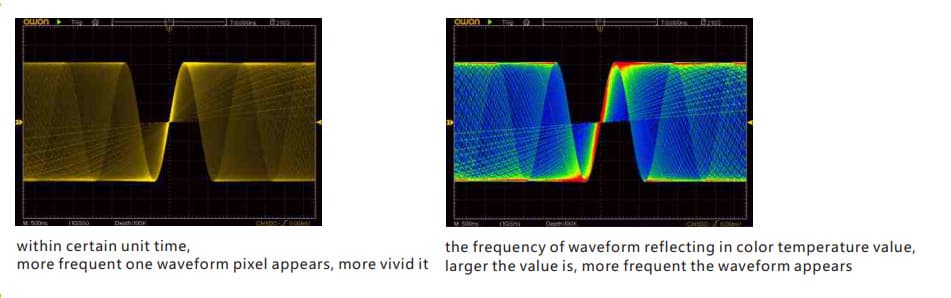

 Xvisual platform - restore the waveform detail fully. |
 Multi-trigger supported - Logic, Time-out, I C, SPI, RS232, Runt, Windows, Nth Edge, and CAN. |
 Serial bus coding available in I2C, SPI, RS232, and CAN. |
 Built-in multimeter module, with auto-scale, and data logging function Built-in dual-channel 25MHz arbitrary waveform generator module, with sample rate of 125MS/s. |
 Its multi-point touchscreen improves operation efficiency considerably. |
 Optional battery makes floating measurements possible, advancing the operation convenience. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 60 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Sample Rate | 1GS/s |
| Rise Time (at Input, Typical) | =5.8ns |
| Record Length | 40M |
| DC Gain Accuracy | ±1.5% |
| Sampling Rate / Relay Time Accuracy | ± 1ppm |
| Waveform Refresh Rate | 45,000 wfms/s |
| Fuse | 2A, T class, 250V |
| Interpolation | sin (x) / x |
| Power Consumption | <15W |
| Frequency Counter | Available |
| Channel Isolation | 50Hz : 100:1, 10MHz : 40:1 |
| Display | 8"Color LCD, 800 x 600 Pixels |
| Max Input Voltage | 1MO = 300Vrms; 50O = 5Vrms |
| Power Supply | 100 - 240 V AC, 50 / 60Hz, CAT II |
| Horizontal Scale (s/div) | 2ns/Div - 1000s/Div, Step by 1-2-5 |
| Input Impedance | 1MO ± 2 %, in Parallel with 15pF ± 5pF |
| LF Respond (AC, -3dB) | =10Hz |
| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA |
| Vertical Resolution (A/D) | 12 bits |
| DC Accuracy | Average = 16 : ±(3% reading + 0.05 div) for ?V |
| Dimension (W x H x D) | 340 x 177 x 90 (mm) |
| Battery | 3.7V, 13200 mAh |
| Probe A ttenuation Factor | 0.001X - 1000X, step by 1-2-5 |
| Full Scale Reading | 3 3⁄4 Digits (Max 4000 Count) |
| Capacitance | 51.2nF - 100uF: ±(3% ± 3 digits) |
| Voltage | Vdc : 400mv, 4v, 400v: ±(1 ± 1 Digit); Max Input: Dc 1000v Vac: 4v, 40v, 400v: ±(1 ± 3 Digits); Frequency: 40hz - 400hz; Max Input: Ac 400v (Virtual Value) |
| Current | Current DC: 40mA, 400mA: ±(1.5% ± 1 digit); 10A: ±(3% ± 3 digits) AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A: ±(3% ± 3 digits) |
| Impedance | 400O: ±(1% ± 3 digits), 4 KO - 40MO: ±(1% ± 1 digit) |
| Diode | 0V - 1.5V |
| Max Frequency Output | 25MHz |
| Channel | Available in 1-ch, or 2-ch |
| Vertical Resolution | 14 bits |
| Amplitude Range | 2mVpp - 6Vpp |
| Waveform Length | 8K |
| Standard Waveform | Sine, S quare, Pulse, and Ramp |
| DEC | RS232 / SPI / IIC |
| CAN | CAN Decoding |
