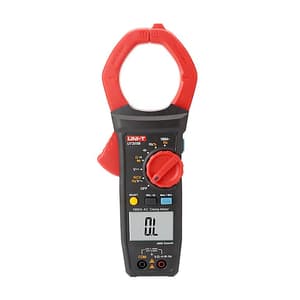

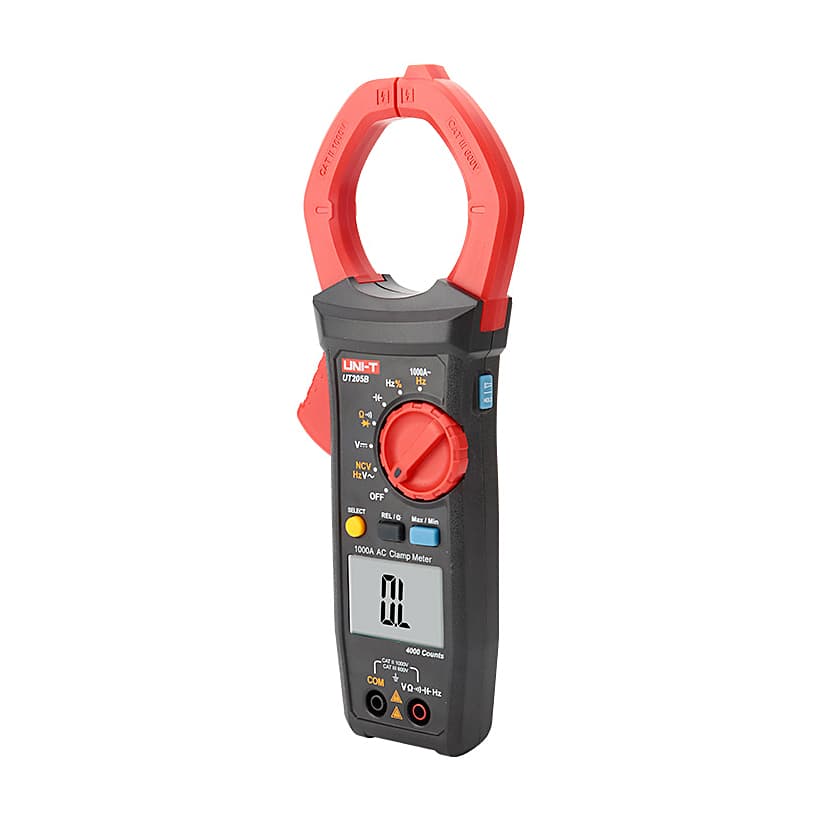

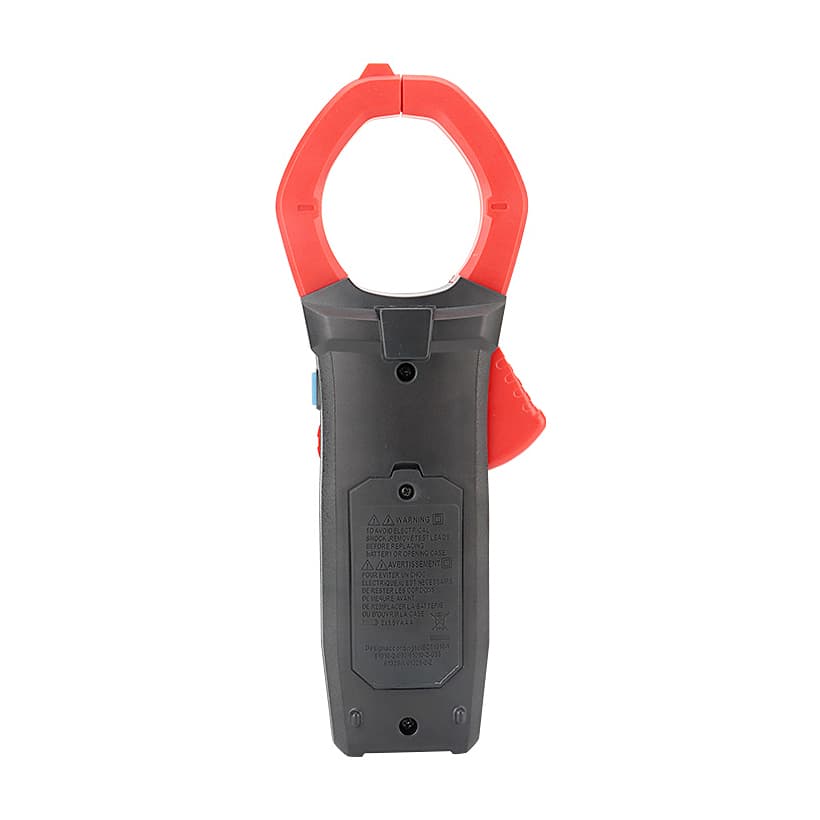

UNI-T 4000 Count / 1000A AC Digital Clamp Meter, UT205B
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Display Count: 4000
- Jaw Opening (mm): 60 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,313 (Incl. of all taxes)
₹3,655 + ₹658 GST (18%)
MRP was MRP ₹4,300
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT205B 1000A AC clamp meter has a large size of Jaw (up to 60mm) and can suit more application scenarios. The lightweight and slim design, and the backlight/flashlight functions are good for dark environment operation; The meter also supports duty cycle, NCV, MAX/MIN, etc. functions, it is a reliable and portable electronic tool.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- 1000A AC current measurement
- 1000V AC/DC voltage measurement
- 40MΩ resistance measurement
- 40mF capacitance measurement
- 10MHz frequency measurement
- Duty cycle / NCV test / Flashlight
- Diode / Continuity Test
- Relative value/Max & Min value
- 55mm Clamp jaw size, opening 60mm
- Pliers head uses an air core coil, which is light-weight and easy to carry
- Low battery indication / Data hold / Backlight
Technical Data:
| Range | Accuracy | |
| AC current (A) | 1000A | ±(1.5%+5) |
| ACA frequency (Hz) | 40Hz~1kHz | ±(1.0%+5) |
| AC voltage (V) | 1000V | ±(1.0%+2) |
| ACV frequency (Hz) | 10Hz~10kHz | ±(1.0%+5) |
| DC voltage (V) | 1000V | ±(0.8%+2) |
| Resistance (Ω) | 40.00MΩ | ±(2.5%+5) |
| Capacitance (F) | 40mF | ±(10%) |
| Frequency (Hz) | 10Hz ~ 10MHz | ±(0.1%+4) |
| Duty cycle | 0.1% ~ 99.9% | ±(3.0%+5) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 4000 |
|---|---|
| Jaw Opening (mm) | 60 mm |
| Jaw Size | 55 mm |
| Auto Power Off | Approximately 15 Minutes |
| Overvoltage Category | CAT II 1000V / CAT III 600V |
