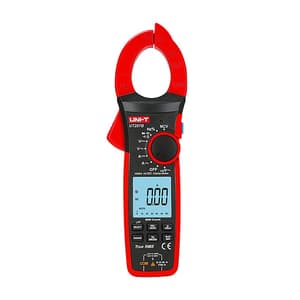

UNI-T 6000 Count / 1000A AC/DC True RMS Digital Clamp Meter, UT207B
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 420 g
- Display Count: 6000
- AC/DC Current: 1000A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,322 (Incl. of all taxes)
₹6,205 + ₹1,117 GST (18%)
MRP was MRP ₹7,300
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT207B is 6000 count digital clamp meters with auto range, large LCD, True RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcerti?ed by CE/ETL. The UT207B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Flashlight button: Short press this button to turn on/off the flashlight
- NCV Multi-Segment Display and audio/visual alarm
- True RMS/Auto backlight
- NCV/Function retention
- Certifications: CE, UKCA, cETLus
Technical Data:
| Specifications | Range | Accuracy |
| AC current (A) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 1000V | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) |
| LoZ ACV | 1000V | ±(2%+5) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Low voltage frequency (Hz) | 10Hz ~ 1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
Package Content:
- 1x True RMS Digital Clamp Meter
- 3x 1.5V Battery (R03)
- Test leads
- English manual
- Gift box
- Carrying bag
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 6000 |
|---|---|
| AC/DC Current | 1000A |
| AC/DC Voltage | 1000V |
| Jaw Opening (mm) | 42 mm |
| AC/DC Current & Voltage Frequency Response | 40Hz ~ 400Hz |
| Analog Bar | 31 |
| Power Supply | 3x 1.5V battery (R03) |
| Display Size | 43 x 45 mm |
| Dimensions (mm) | 272 x 81 x 43.5 mm |
