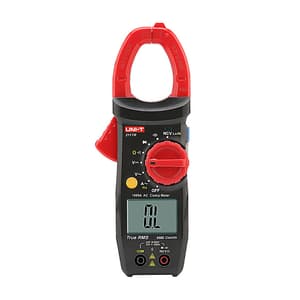

UNI-T 6000 Count / 1000A AC TRMS Digital Clamp Meter, 2117R
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 210 g
- Display Count: 6000
- Jaw Opening (mm): 33 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,862 (Incl. of all taxes)
₹3,273 + ₹589 GST (18%)
MRP was MRP ₹3,850
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
2117R True RMS 1000A AC clamp meter is a great choice for AC current measurement. It features 1000V AC/DC voltage measurement, 60MΩ resistance measurement, and bright backlight. The dual-mode NCV allows users to detect live voltages without contacting any metallic surface. The high frequency response range is suitable for more measuring applications. This meter is CE/UKCA approved and features a CAT II 1000V / CAT III 600V safety rating with 1000V overload protection.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- True RMS
- 1000A AC current measurement
- 1000V AC/DC voltage measurement
- Large LCD with backlight
- ACA frequency measurement: 20H~10kHz
- 1000V overload protection
- NCV (High/Low dual-mode)
Technical Data:
| Specifications | Range | 2117R |
| Certificates | CE/UKCA | |
| AC current (A) | 1000A | ±(1.5%+4) |
| AC frequency (Hz) | 20Hz-10kHz | ±(1.0%+5) |
| AC voltage (V) | 1000V | ±(1.0%+2) |
| DC voltage (V) | 1000V | ±(0.7%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 6mF | ±(4%+5) |
Applications:
- Current measurement
- Voltage measurement
- NCV measurement
- Capacitance measurement
Package Content:
- 1x Digital Clamp Meter
- 2x 1.5V batteries (AAA)
- Test leads
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 6000 |
|---|---|
| Jaw Opening (mm) | 33 mm |
| Auto Power Off | Approximately 15 Minutes |
| Low Battery Indication | < 2.5V Approximately |
| Safety Rating | CATII 1000V / CATIII 600V |
| Power Supply | 2x 1.5V AAA Batteries |
| Dimensions (L x W x H) | 204 x 63 x 38 mm |
