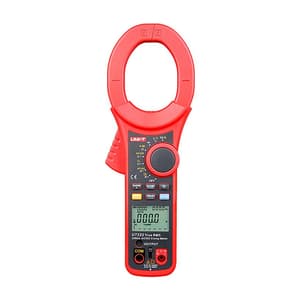

UNI-T 6000 Count / 2500A AC/DC True RMS Digital Clamp Meter, UT222
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 726 g
- Display count: 6000
- AC/DC Current: 2500A
- Jaw Opening (mm): 63 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,311 (Incl. of all taxes)
₹17,213 + ₹3,098 GST (18%)
MRP was MRP ₹20,250
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT222 are 2500A AC/DC digital clamp meters. This series ensures stable performance, safety, and reliability for measuring up to 2500A AC current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2500A.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Auto range
- Continuity buzzer
- MAX/MIN
- Diode
- Data hold
- Low battery indication
- Full icon display
- Certifications: CE, UKCA, cETLus
Technical Data:
| Specifications | Range | UT222 |
| AC current (A) | 2500A | ±(1.5%+5) |
| DC current (A) | 2500A | ±(1.5%+5) |
| AC voltage (V) | 1000V | ±(1%+3) |
| DC voltage (V) | 1000V | ±(0.5%+2) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(3%+5) |
| Frequency (Hz) | 60MHz | ±(0.1%+3) |
| Temperature | -40°C ~ 1000°C | ±(1%+10) |
| -40°F ~ 1832°F | ±(1%+18) |
Package Content:
- 1x AC/DC Digital Clamp Meter
- 1x 9V battery (6F22)
- Test leads
- Output Cable
- Thermocouple
- Tool Box
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display count | 6000 |
|---|---|
| AC/DC Current | 2500A |
| Jaw Opening (mm) | 63 mm |
| Duty Cycle | 10% ~ 90% |
| Inrush Current | AC Current |
| Data Storage | 1000 |
| Analog Bar Graph | 61 |
| Input Impedance | > 10M Ohm |
| Power Supply | 9V battery (6F22) |
| Display | 43 mm x 30 mm |
| Product Color | Red & grey |
| Dimensions (mm) | 298 x 107 x 47 mm |
