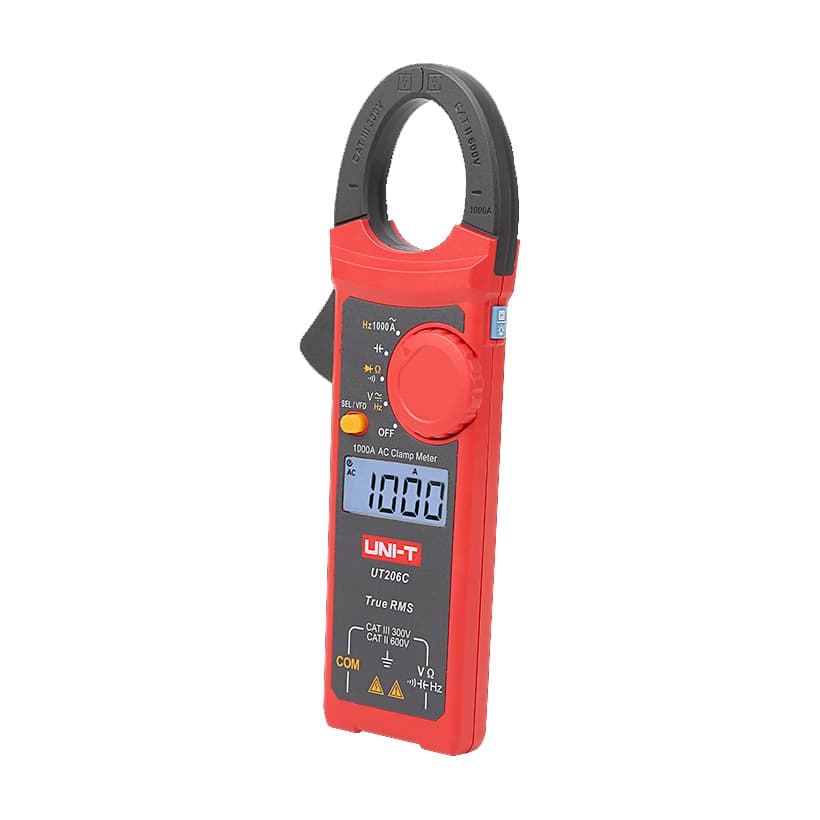

UNI-T 6000 Count / 1000A AC True RMS Digital Clamp Meter, UT206C
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 130 g
- Display Counts: 6000 Counts
- Current (AC): 1000A AC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,965 (Incl. of all taxes)
₹4,208 + ₹757 GST (18%)
MRP was MRP ₹4,950
Save 15%
3 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
The UT206C is a compact, pocket-sized digital clamp-meter. It can stably measure voltage, current, frequency, and other parameters of sine waves superimposed with carrier frequencies and various distorted interference signals (VFD). The AC measurement range reaches up to 1000A. The product is designed in accordance with CAT? 600V / CAT? 300V safety ratings and has obtained corresponding EC and cETLus certifications.
Features:
- True RMS measurement with 6000 display count
- Ultra-narrow/thin Jaw: Jaw is 10mm thick
- VFD measurement
- Auto power off & Flashlight
- CAT II 600V & CAT III 300V
- CE & ETL certified
Functions:
- True RMS
- Continuity
- Data hold
- Backlight
Package Content:
- Clamp Meter
- 2x AAA 1.5 Batteries
- Testing Probe
- Manual
- Cloth Bag
Technical Data:
| Range | Accuracy | ||
| Current(AC) | 60.00A | 0.01A | ± (2.0%+10) |
| 600.0A | 0.1A | ± (2.0%+5) | |
| 1000A | 1A | ± (2.0%+5) | |
| Frequency(ACA) | 45Hz~400Hz | 0.01Hz~0.1Hz | ± (0.1%+3) |
| Voltage(AC) | 6.000V | 0.001V | ± (1.2%+5) |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ||
| VFD(AC) | 600.0V | 0.1V | ± (8%) |
| Frequency(ACV) | 10Hz~100kHz | 0.01Hz~0.1kHz | ± (0.1%+3) |
| Voltage(DC) | 6.000V | 0.001V | ± (1.0%+2) |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ||
| Resistance (Ω) | 600.0Ω | 0.1Ω | ±(1.0%+5) |
| 6.000kΩ | 0.001kΩ | ±(1.0%+2) | |
| 60.00kΩ | 0.01kΩ | ||
| 600.0kΩ | 0.1kΩ | ||
| 1.000MΩ | 0.001MΩ | ||
| Capacitance(F) | 6.000μF | 0.001uF | ± (2%+5) |
| 60.00μF | 0.01uF | ± (5%+5) | |
| 600.0μF | 0.1uF | ||
| 6.00mF | 0.01mF | ± (10%) | |
| 10.00mF | 0.01mF |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 6000 Counts |
|---|---|
| Current (AC) | 1000A AC |
| Frequency | 45Hz~400Hz |
| Clamp Opening Size | 33 mm |
| Clamp Thick | 10 mm |
| Auto Identification | Resistance / Continuity / Diode |
| Category Rating | CAT III 300V CAT II 600V |
| Power Supply | 2x 1.5V AAA Batteries |
| Dimensions (mm) | 190 x 68 x 20 mm |
