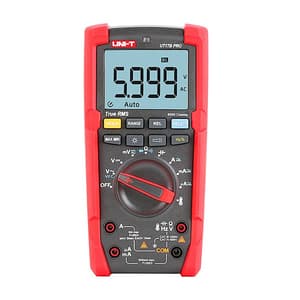

UNI-T 6000 Count True-RMS Digital Multimeter with Temperature Probe, UT17B PRO
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 484 g
- Display Count: 6000
- Auto Power Off: Approximately 15 minutes
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,225 (Incl. of all taxes)
₹6,970 + ₹1,255 GST (18%)
MRP was MRP ₹8,200
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT17B PRO are highly reliable, safe, and durable True RMS multimeter. Equipped with built-in VFC, it can filter interference, resulting in a more accurate voltage reading. These meters come with gold-plated test leads for quick and precise measurement. They also provide complete range 1000V protection, as well as 8kV transient voltage protection, which can withstand sudden high voltage shocks. Flashlight and automatic backlight design enable users to troubleshoot electrical equipment easily even in dark environments, they are good tools for electricians.
Features:
- 1000V AC/DC voltage measurement
- 6000 count True RMS
- VFC 600V measurement
- Overload protection
- Auto Backlight / Flashlight
- Auto range/Manual range
- Continuity/Diode test
- Relative mode
- Data hold
- Max/Min
Technical Data:
| Range | Accuracy | |
| DC voltage (V) | 1000V | ±(0.5%+3) |
| AC voltage (V) | 1000V | ±(1%+3) |
| AC current (A) | 10A | ±(1%+3) |
| DC current (A) | 10A | ±(0.8%+3) |
| Resistance (Ω) | 60MΩ | ±(0.5%+2) |
| Capacitance (F) | 6000μF | ±(2%+5) |
| Frequency (Hz) | 10Hz ~ 1MHz | ±(0.1%+3) |
| Duty cycle | 1%~99% | ±(1%+4) |
| Temperature (°C / °F) | -55°C ~ 500°C / -67°F ~ 932°F | ±(2%+1) |
Package Content:
- 1x TRMS Digital Multimeter
- 2x 1.5V Battery (LR6)
- test lead
- temperature probe
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 6000 |
|---|---|
| Auto Power Off | Approximately 15 minutes |
| Low Battery Indication | <2.5V Approximately |
| Drop Test | 1m |
| Overvoltage Category | CAT III 1000V / CAT IV 600V |
| Power Supply | 2x 1.5V Battery (LR6) |
| Dimensions (mm) | 195 x 95 x 58 mm |
