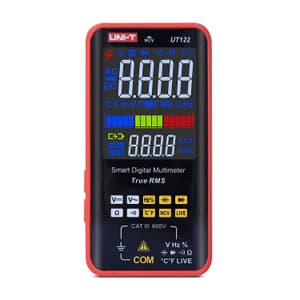

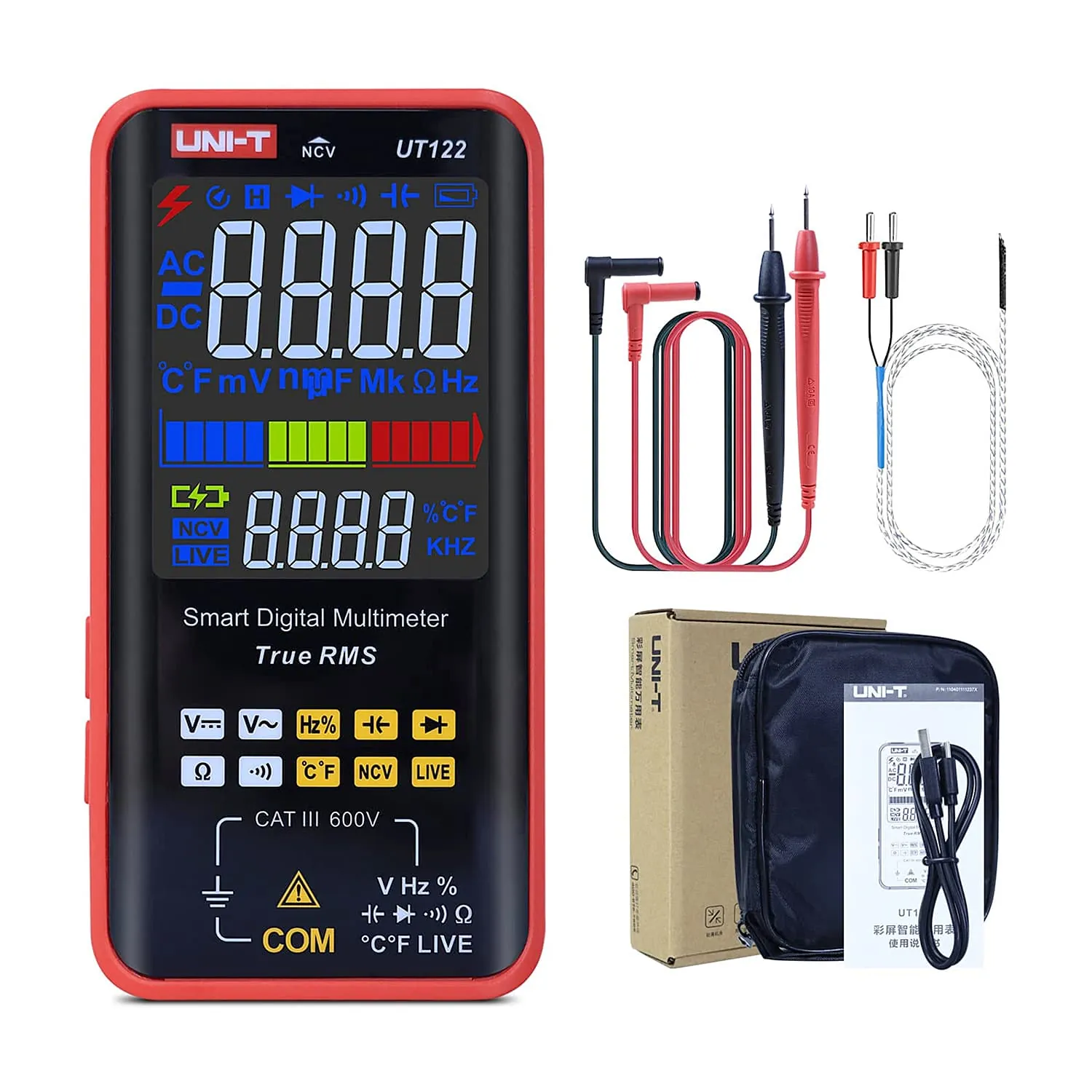

UNI-T 6199 Count True RMS Smart Digital Multimeter, UT122
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Display Count: 6199
- Voltage: 600V AC/DC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,558 (Incl. of all taxes)
₹2,168 + ₹390 GST (18%)
MRP was MRP ₹2,550
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights

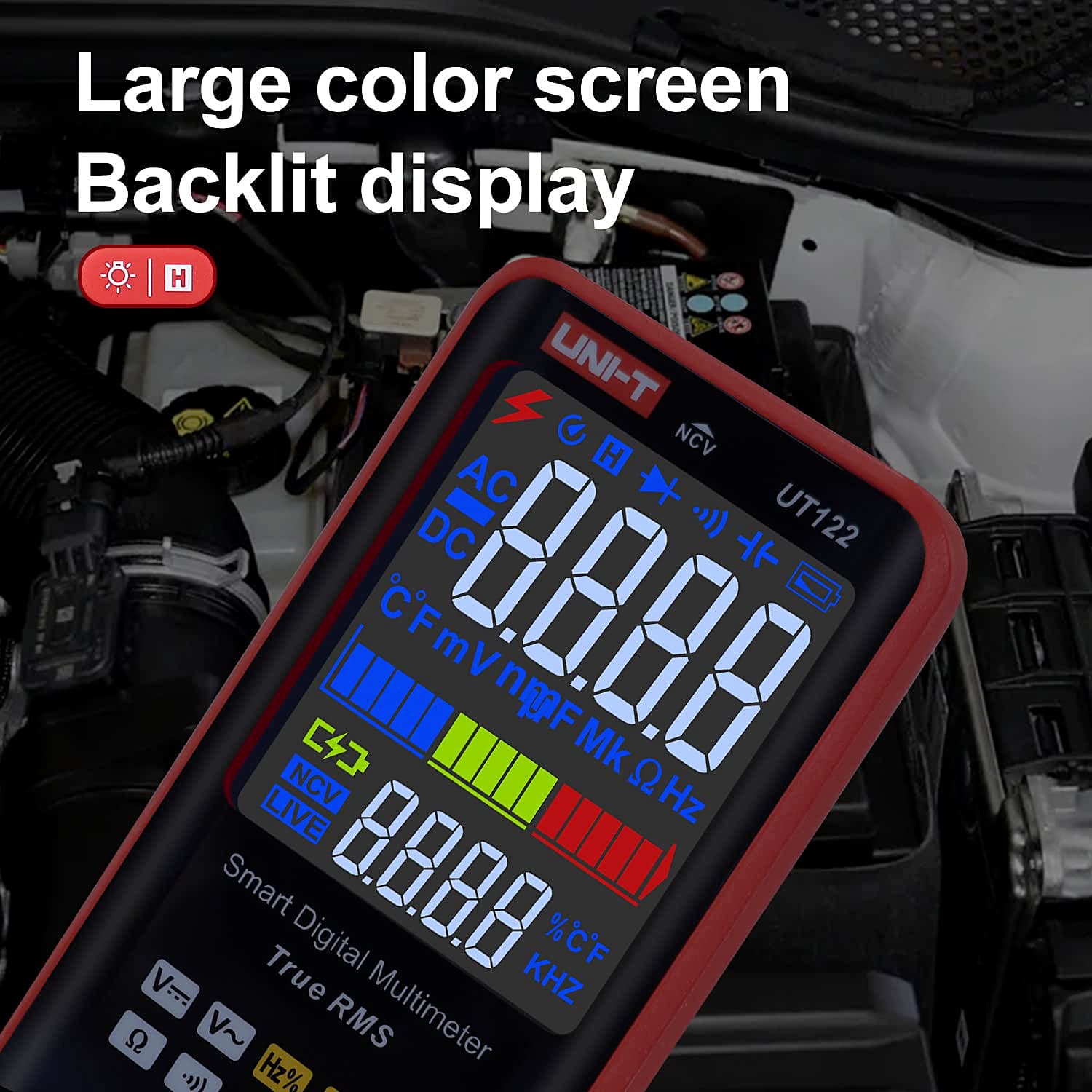

UT122 is an ultra-thin True RMS multimeter with a large 6000-count display and auto-ranging for AC/DC voltage, AC voltage frequency, resistance, capacitance, frequency and temperature measuring. The multimeter can display two measurement results at the same time, which is convenient for home and non-professional users. This is a fast and easy to use electronic device, equipped with a built-in rechargeable lithium battery with Type-C charging.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

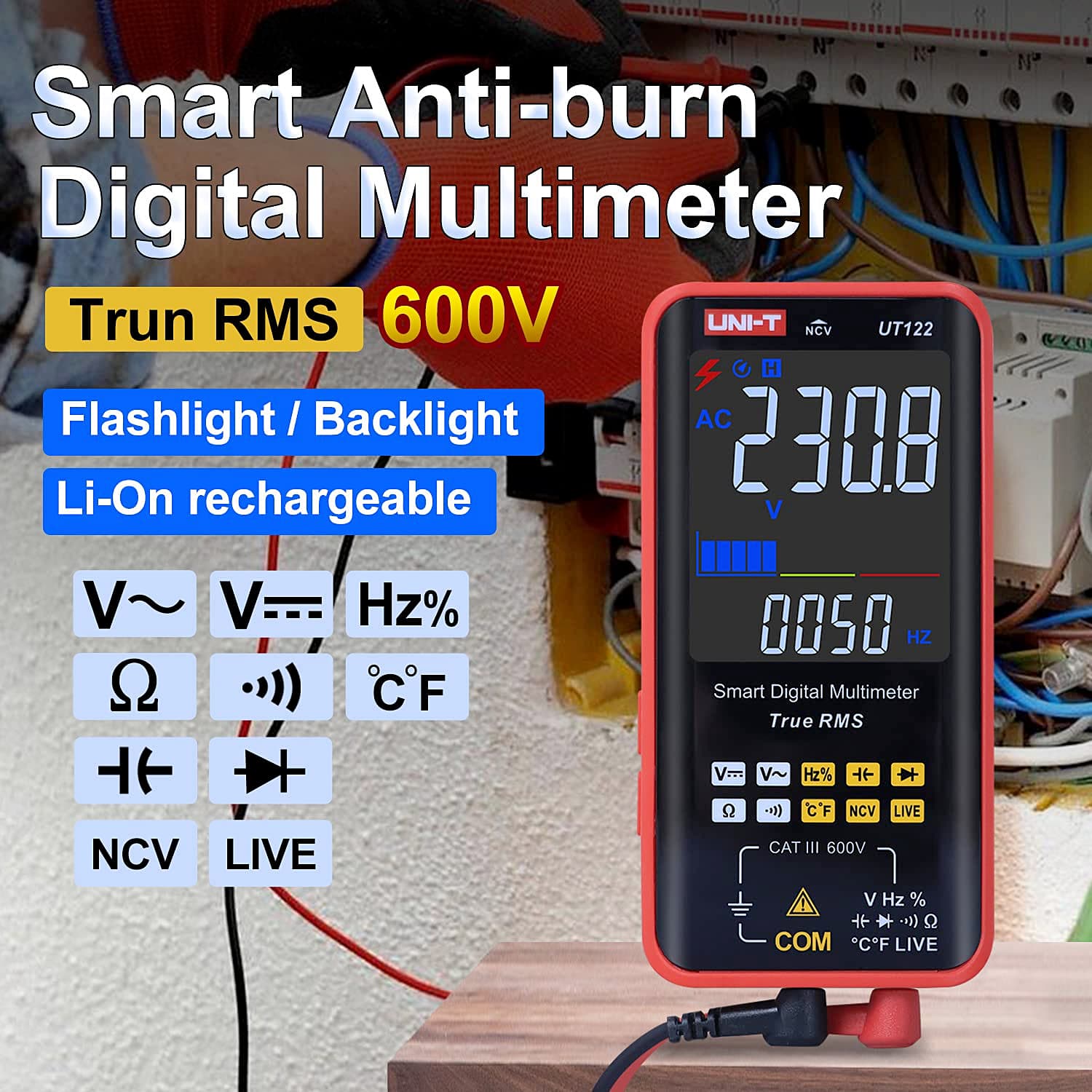

Features:
- True RMS.
- AC/DC 600 V voltage measurement.
- 60 MΩ large resistance measurement.
- 99 mF large capacitance measurement.

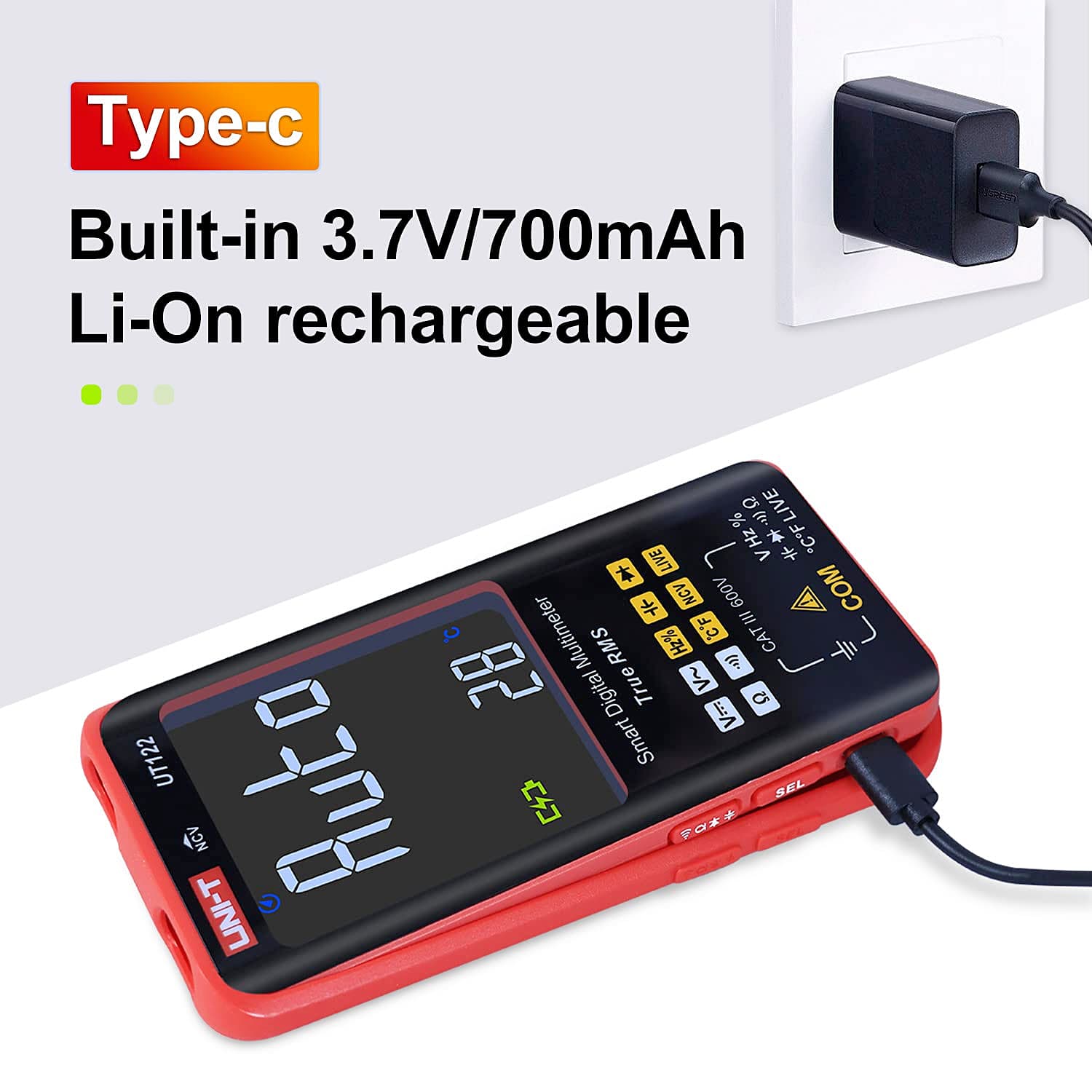

- Built-in rechargeable lithium battery, Type-C charging.
- Temperature measurement.
- Full-scale input protection.

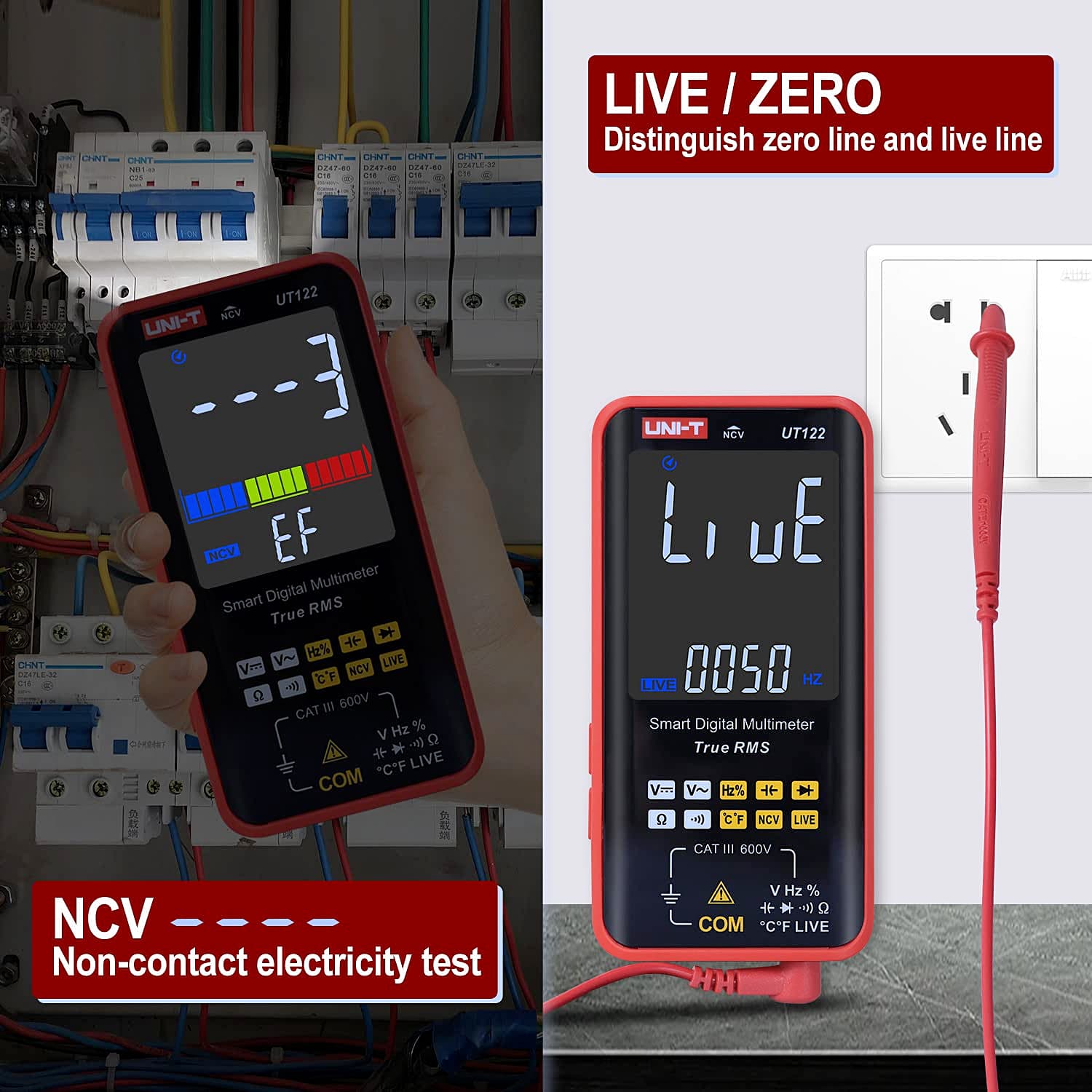

- Non-contact voltage detection (NCV).
- LIVE function for distinguishing between live and neutral wires.
- 15.5 mm ultra-thin body.
- Intelligent identification gear.

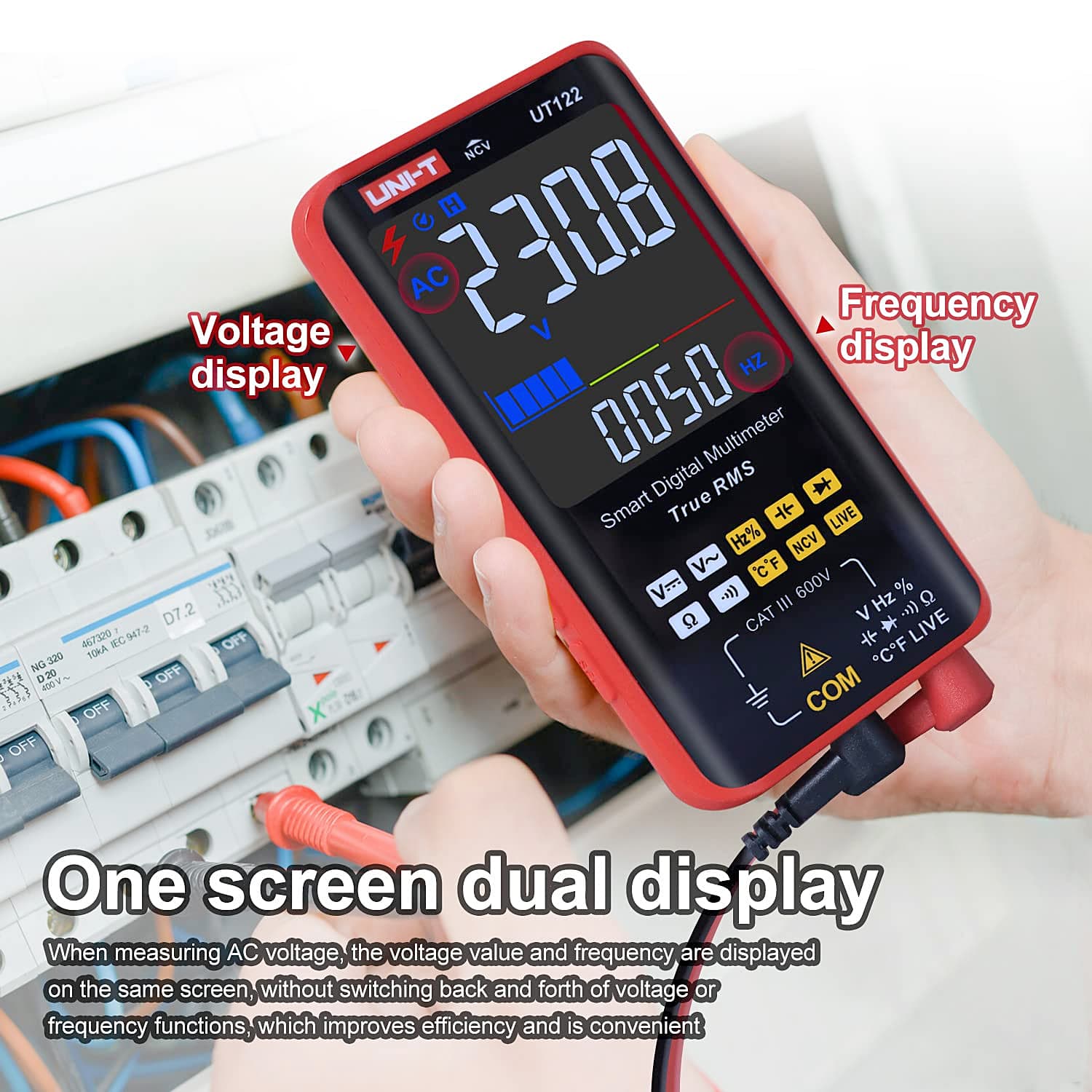

- Dual Display
- Auto Range
- NCV
- Live Detection
- Diode Test
- Continuity Buzzer
- LCD High Voltage ALT
- Data Hold
- Auto Power Off

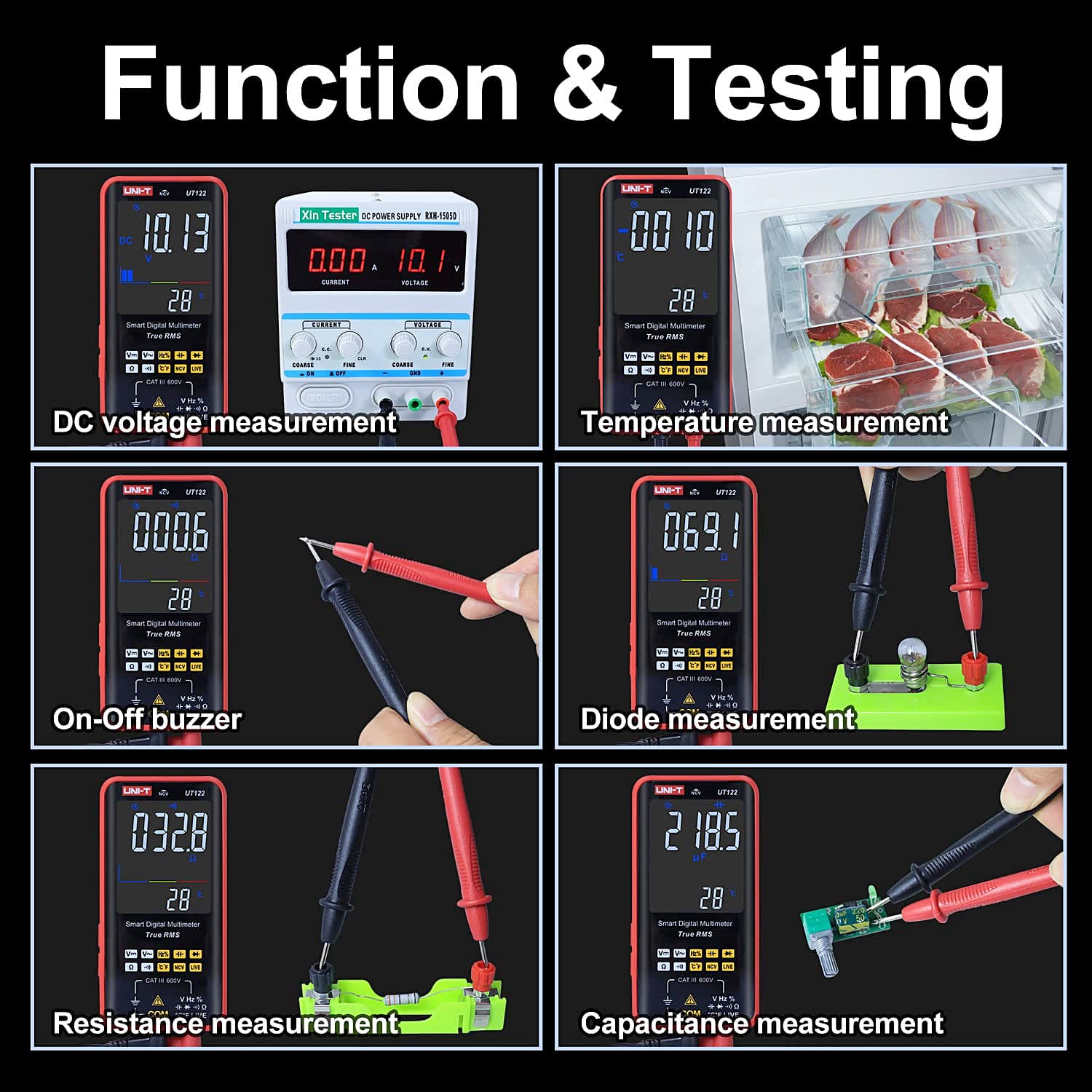

Technical Data:
| Range | Accuracy | |
| AC voltage (V) | 6V / 60V / 600V | ±(1.0%+3) |
| AC voltage frequency (Hz) | 10Hz ~ 1kHz | ±(0.5%+2) |
| DC voltage (V) | 6V / 60V / 600V | ±(0.5%+3) |
| Resistance (Ω) | 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ | ±(2.0%+5) |
| Capacitance (F) | 99.99nF / 999.9nF ~ 9.999μF / 9.999mF ~ 99.99mF | 10% |
| Frequency (Hz) | 10Hz ~ 10MHz | ±(0.1%+3) |
| Temperature (°C/°F) | –40°C ~ 1000°C / –40°F ~ 1832°F | ±3°C/±6°F |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 6199 |
|---|---|
| Voltage | 600V AC/DC |
| AC Voltage Frequency | 10Hz ~ 1kHz |
| Overvoltage Category | CAT III 600V |
