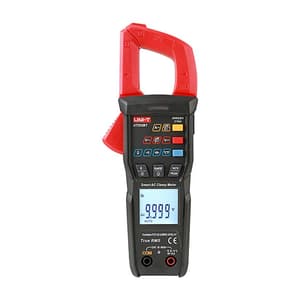

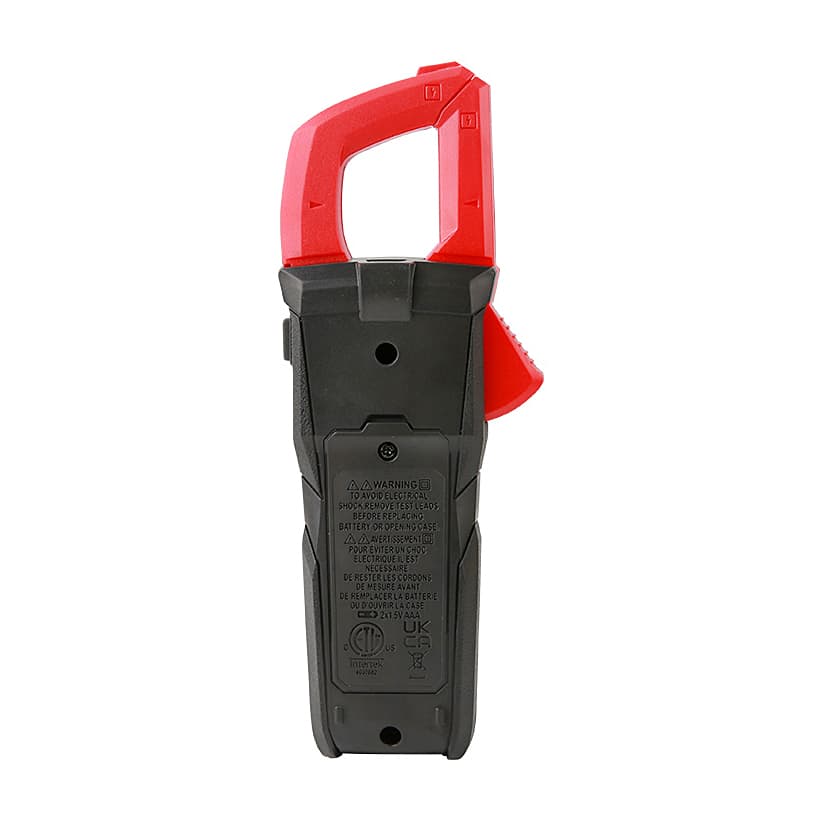

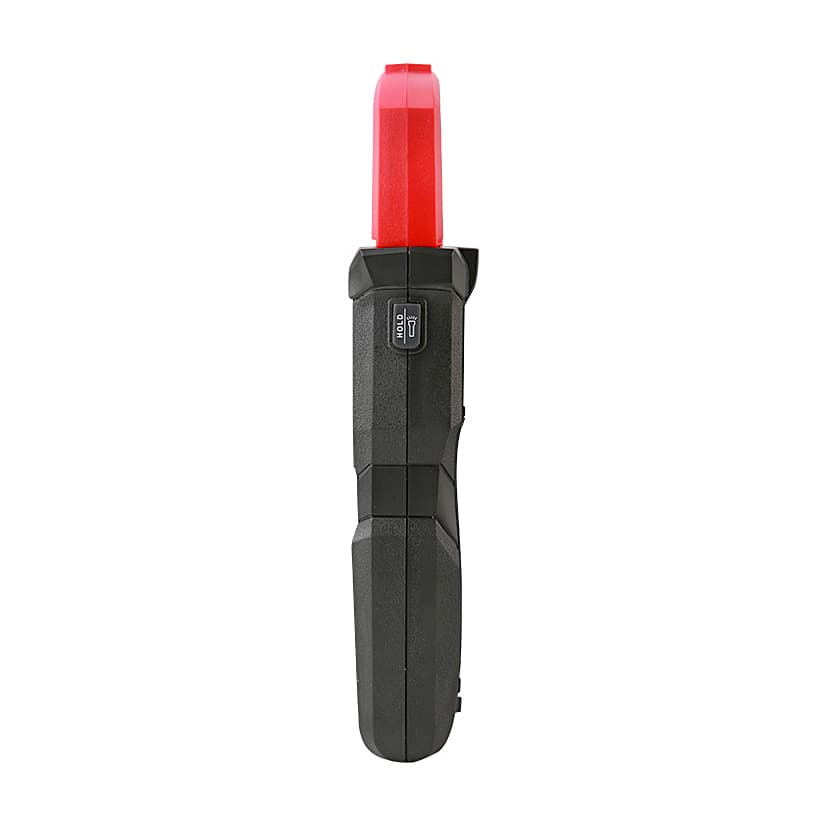

UNI-T 9999 Count / 600A AC TRMS Digital Clamp Meter, UT202BT
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 251 g
- Display Count: 9999
- Jaw Opening (mm): 28 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,213 (Incl. of all taxes)
₹3,570 + ₹643 GST (18%)
MRP was MRP ₹4,200
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Button-design clamp meter
- One-hand operation and easy to use
- 600V AC/DC voltage measurement
- 600A AC current measurement
- Dual display: V+HZ and A+HZ
- Bright backlight / Flashlight
- Non-contact voltage (NCV)
- Auto range / Bluetooth
- Continuity / PEAK hold
- Low-pass filter / Data hold
- Inrush current / Audible visual indication
Technical Data:
| Specifications | Range | Accuracy |
| Certificates | CE/UKCA/cETLus | |
| DC voltage (V) | 600V | ±(0.5%+3) |
| AC voltage (V) | 600V | ±(0.8%+3) |
| AC current (A) | 600A | ±(2.5%+5) |
| Resistance (Ω) | 100MΩ | ±(0.8%+3) |
| Frequency (Hz) | 40Hz ~ 1000Hz | ±(1.0%+5) |
| Capacitance (F) | 100mF | ±(4%+5) |
| Temperature (°C/°F) | -40°C ~ 1000°C / -40°F ~ 1832°F | ±5/±9 |
Package Content:
- 1x Smart AC Clamp Meter
- 2x 1.5V batteries (AAA)
- Test leads
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 9999 |
|---|---|
| Jaw Opening (mm) | 28 mm |
| Auto Power Off | Approximately 15 Minutes |
| Low Battery Indication | < 2.4V Approximately |
| Safety Rating | CATIII 600V |
| Power Supply | 2x 1.5V AAA Batteries |
| Dimensions (L x W x H) | 201.5 x 47 x 28 mm |
